Agilent Technologies Helium Leak Detector
DRAFT 12/11/17
27
1.1.1 Leak Detector Configurations

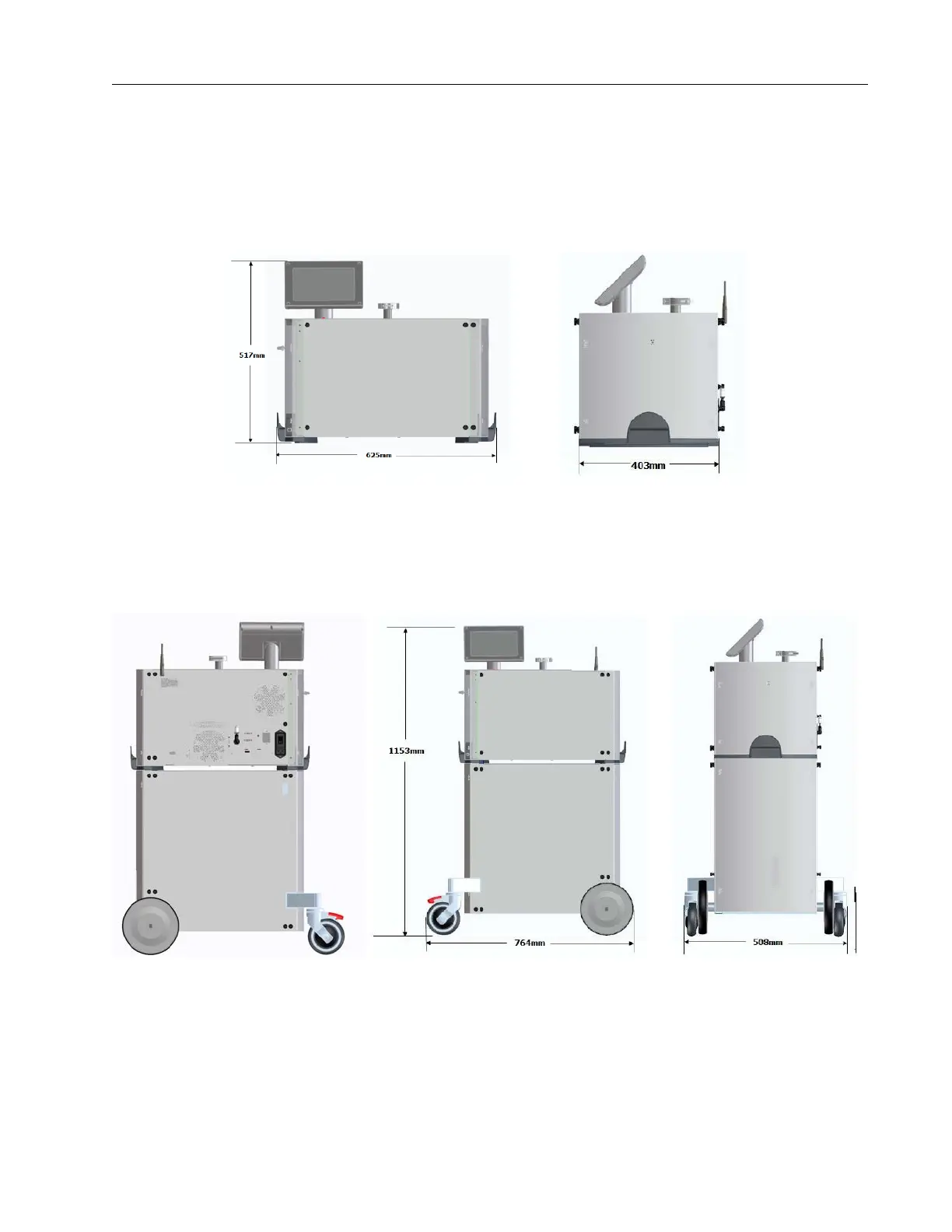

This section contains outline drawings of the leak detector configurations. Dimensions are
given in mm, below the brackets. Figure 1-1 shows the outline drawing and physical
dimensions of the portable leak detector with Internal DS40M Wet Rotary Vane Pump,
Model G8610A and the G8610B, which utilizes a Agilent IDP-3 dry pump.
Figure 1-1 Portable Leak Detector with Internal DS40M Wet Rotary Vane Pump, Model
G8610A, and Portable Leak Detector with Internal IDP-3 (G8610B) Dimensions
Figure 1-2 shows the outline drawing and physical dimensions of a mobile leak detector
with Models G8611x.
Figure 1-2 Mobile Leak Detector with External Wet Rotary Vane Pump or Dry Scroll Pump on
a Cart, Model G8611A, G8611B and G8611C Dimensions
