7.4.1 Current Setup Menu
Details of the current leak detector setup are displayed. Reject and audio set point status,
auto sequencer status & split flow. The calibrated leak setting, leak rate range settings and
vent lock out status.

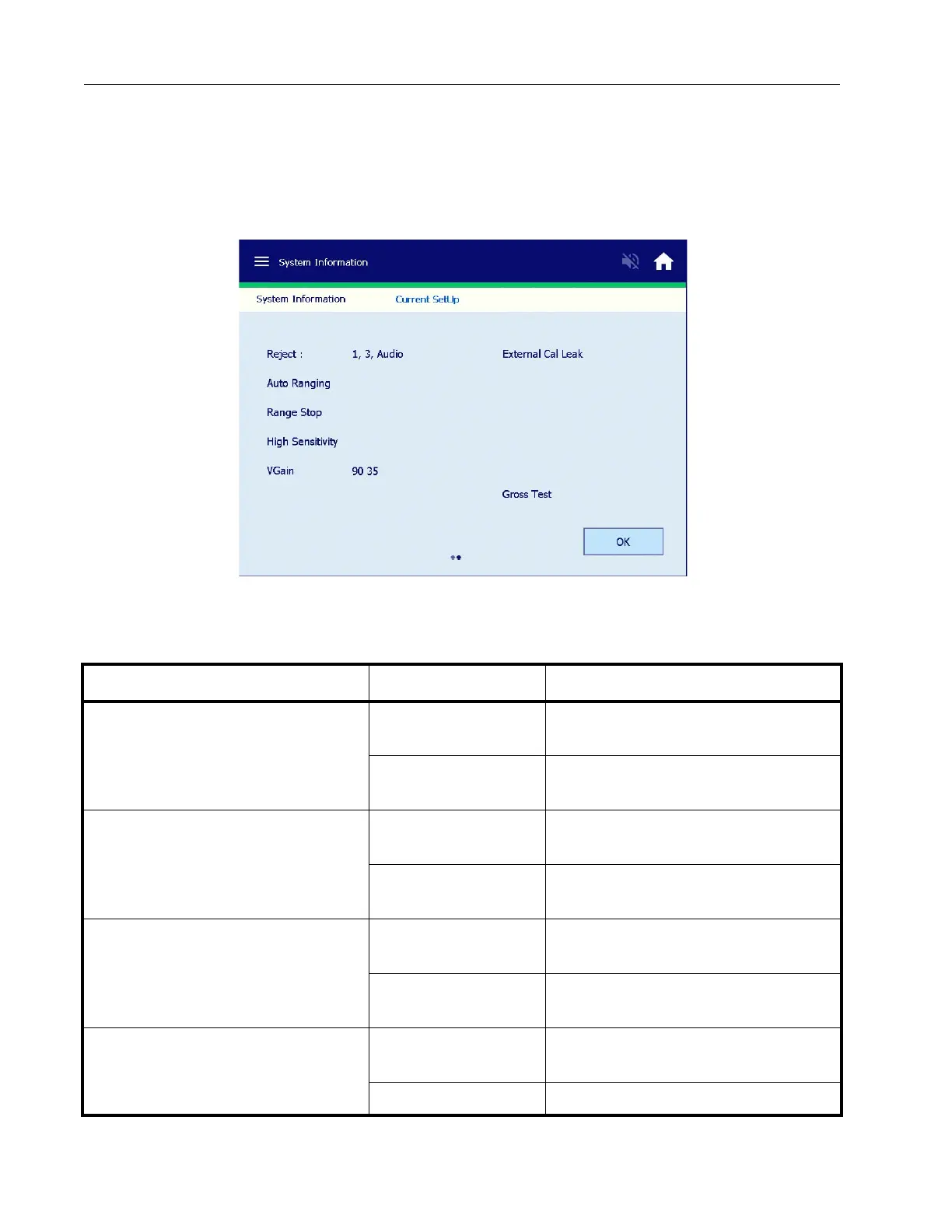

Figure 7-15 Current Setup Screen
a
Table 7-3 Current Setup Screen Conditions
Condition Display Description
Audio Set Point
See Section 7.4.1 “Current Setup
Menu” on page 128.
Audio Set Point:
Active
Audio Set Point is active.
Audio Set Point:
Inactive
Audio Set Point is inactive.
Auto Sequencer
See Section 7.4.1 “Current Setup
Menu” on page 128.
Auto Sequencer: On Auto Sequencer (automatic test cycle)
is enabled.
Auto Sequencer: Off Auto Sequencer (automatic test cycle)
is disabled.
Calibration Set-Up
See Section 4 “Calibration Screen”
on page 65.
Int Cal Leak System is set to calibrate to the internal
standard leak.
Ext Cal Leak System is set up to calibrate to an
external standard leak.
Leak Rate Range
See Section 4 “Calibration Screen”
on page 65.
Auto Ranging System is set to auto range through
the
leak rate scale.
Manual Ranging System is set for manual range control.
