Agilent Technologies Helium Leak Detector
DRAFT 12/11/17
97

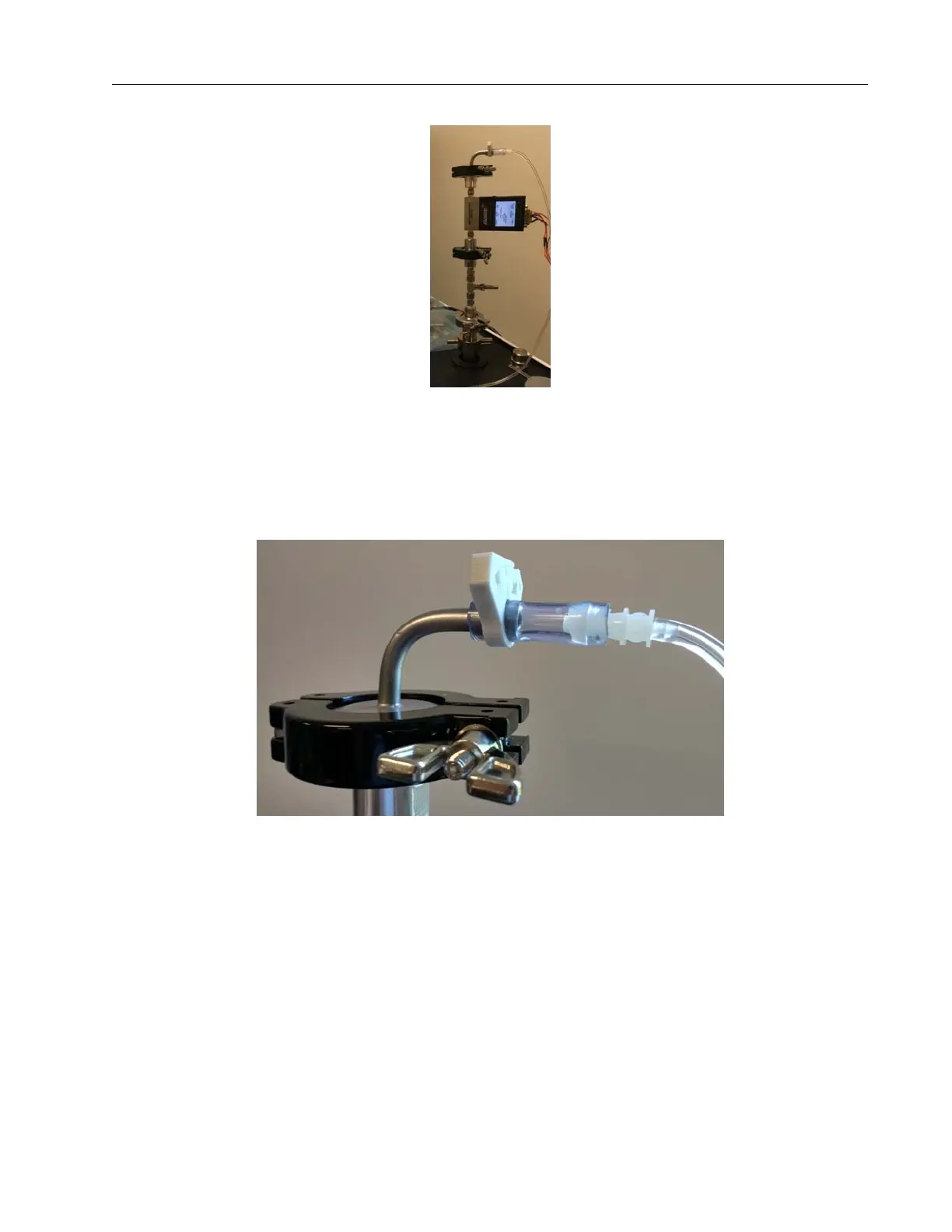

Figure 5-19 Alicat Scientific Mass Flow Meter Supported Method of PPM Testing
The hose may be connected to the inlet side of the mass flow meter. One connection
technique is described here, if you desire to purchase the Agilent sniffer power probe. 1/16"
ID hose may be used alone, by itself as a sniffing probe, though it will not have a handle.
Figure 5-20 Hose Fitting Connection
Agilent part number R0305, an adapter from KF25 to 3/16" ID hose may be purchased as
part of the power probe kit, Agilent part number K95565305, the entire power probe sniffer
assembly. The molded plastic casing of the power probe may be re-purposed by removing
the valve and copper tubing, and inserting plain 1/8" ID hose into the shell of the gun.
Remove the screws holding the case together using a 7/64" Allen key.
