Maintenance
7
Pump Head Procedures
CAUTION
Damage of the pump head assembly
When installing the pump head assembly, the pump drives need to be in maintenance
position, where they are retracted. Using the pump drive in default position will
damage the pump head assembly.
➔ Bring the pump drive to the maintenance position.
CAUTION
Damage to the pump head
Using a wrong torque will damage the pump head.
➔ For handling the torque wrench, setting and applying the right torque, consult the
manual of your torque wrench.

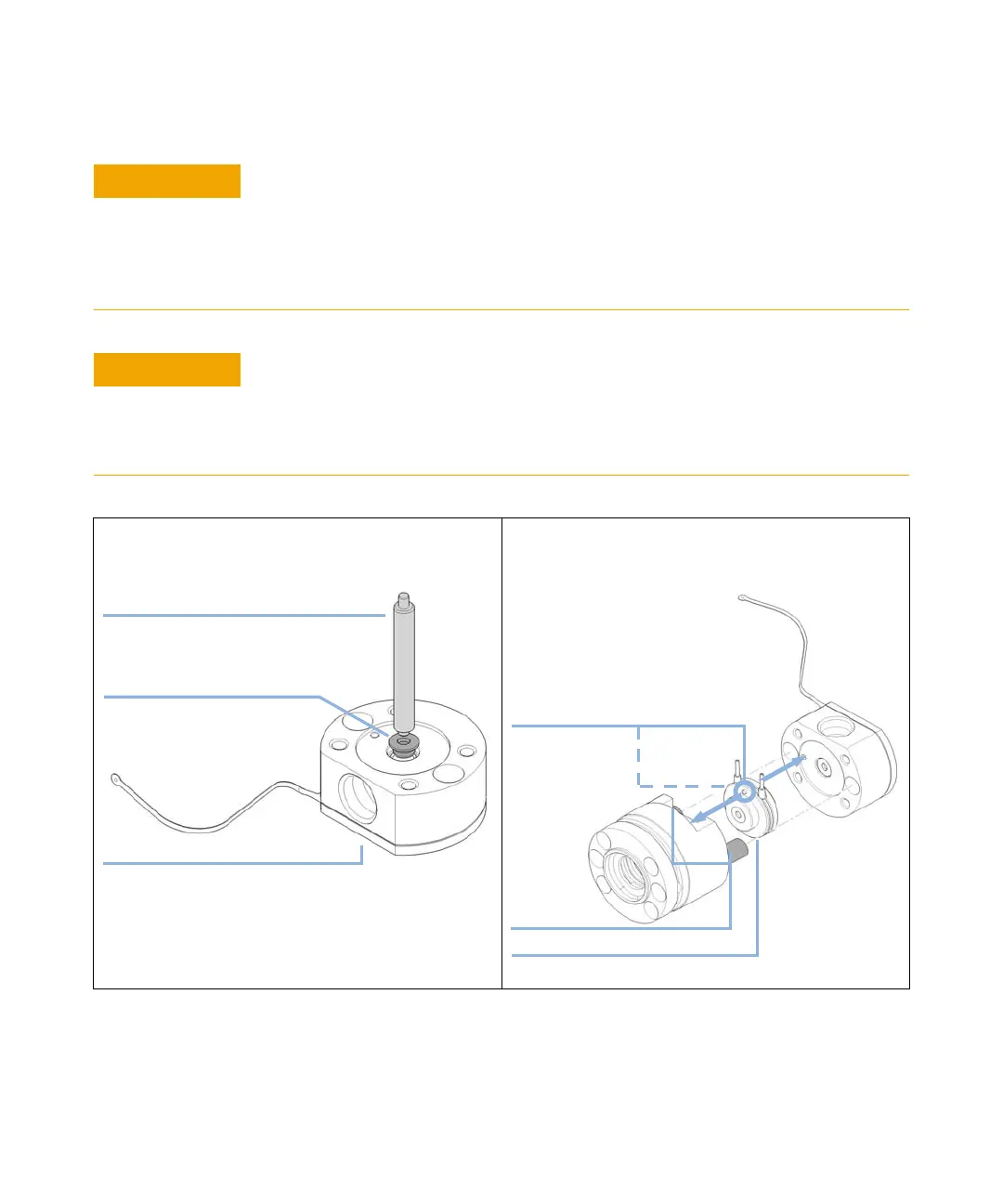

1 Use the soft plastic side of the insert tool for inserting the
piston seal to the pump chamber housing.
2 Insert the support ring and pump head ferrules into the
piston housing. Observe the pins on the support ring,
which help you assembling the pump head correctly.
Insert tool
Pump seal
Pump chamber housing
Ejbe]ZVY[ZggjaZh
Hjeedgig^c\
E^chhZXdcY
e^ccdih]dlc
