Agilent 1290 Infinity II Flexible Pump User Manual 125
Maintenance
7
Pump Head Procedures
5

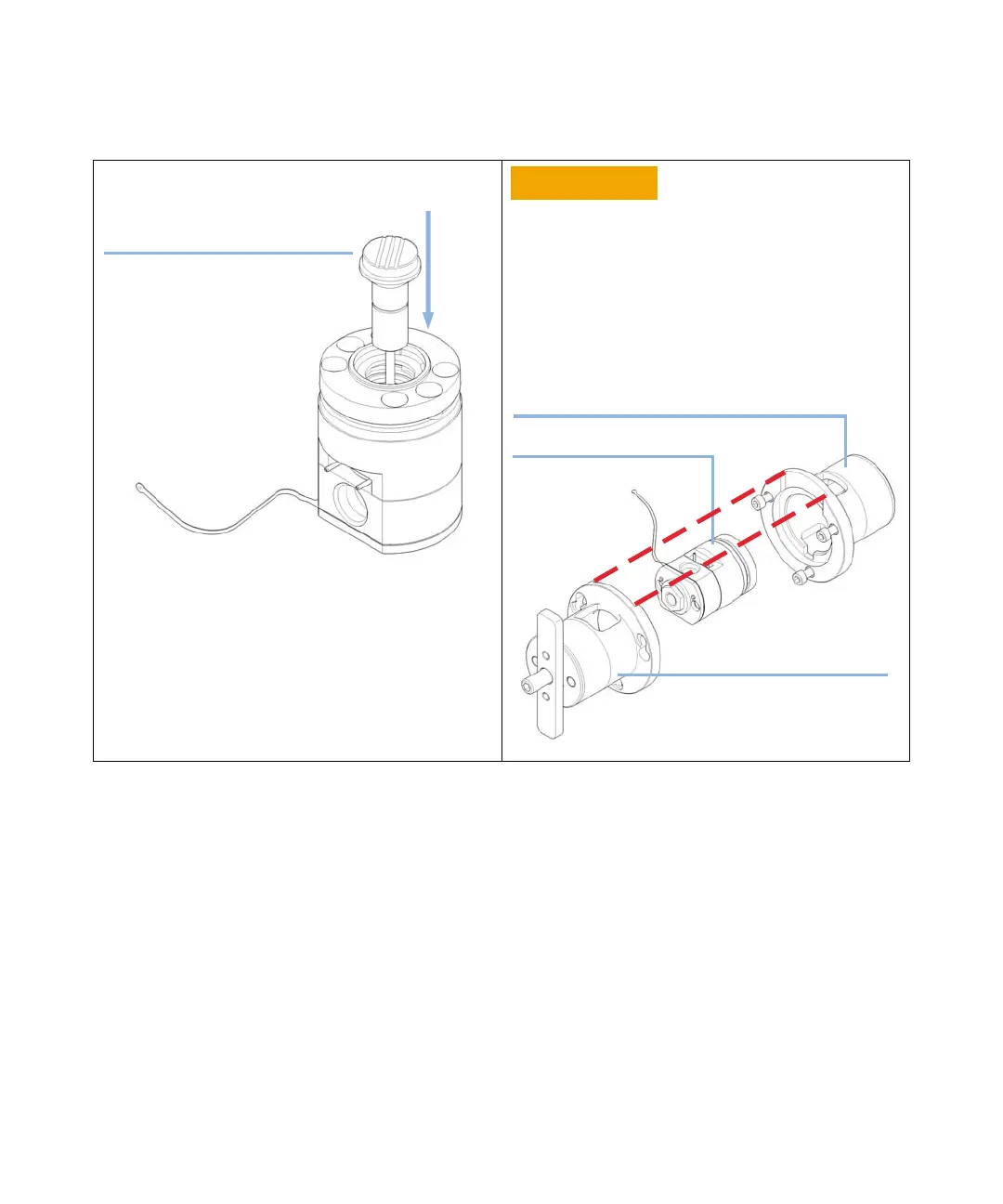

Insert the alignment piston of the pump head alignment
tool.
Damage to the pump head.
➔ Using the alignment tool is mandatory.
➔ Not using will break the pump head.
6 Insert the pump head to the pump head alignment tool,
which is included to the 1290 Infinity Service Kit p/n
5067-4699. There are openings for the seal wash support
ring and heat exchanger of the secondary pump head.
Observe the correct orientation of all parts.
Pump head alignment tool (front)
Pump head (secondary)
Pump head alignment tool (rear)
