36 Agilent SPS 4 Autosampler User’s Guide
3 Installation
Installing the Rack Location Mat

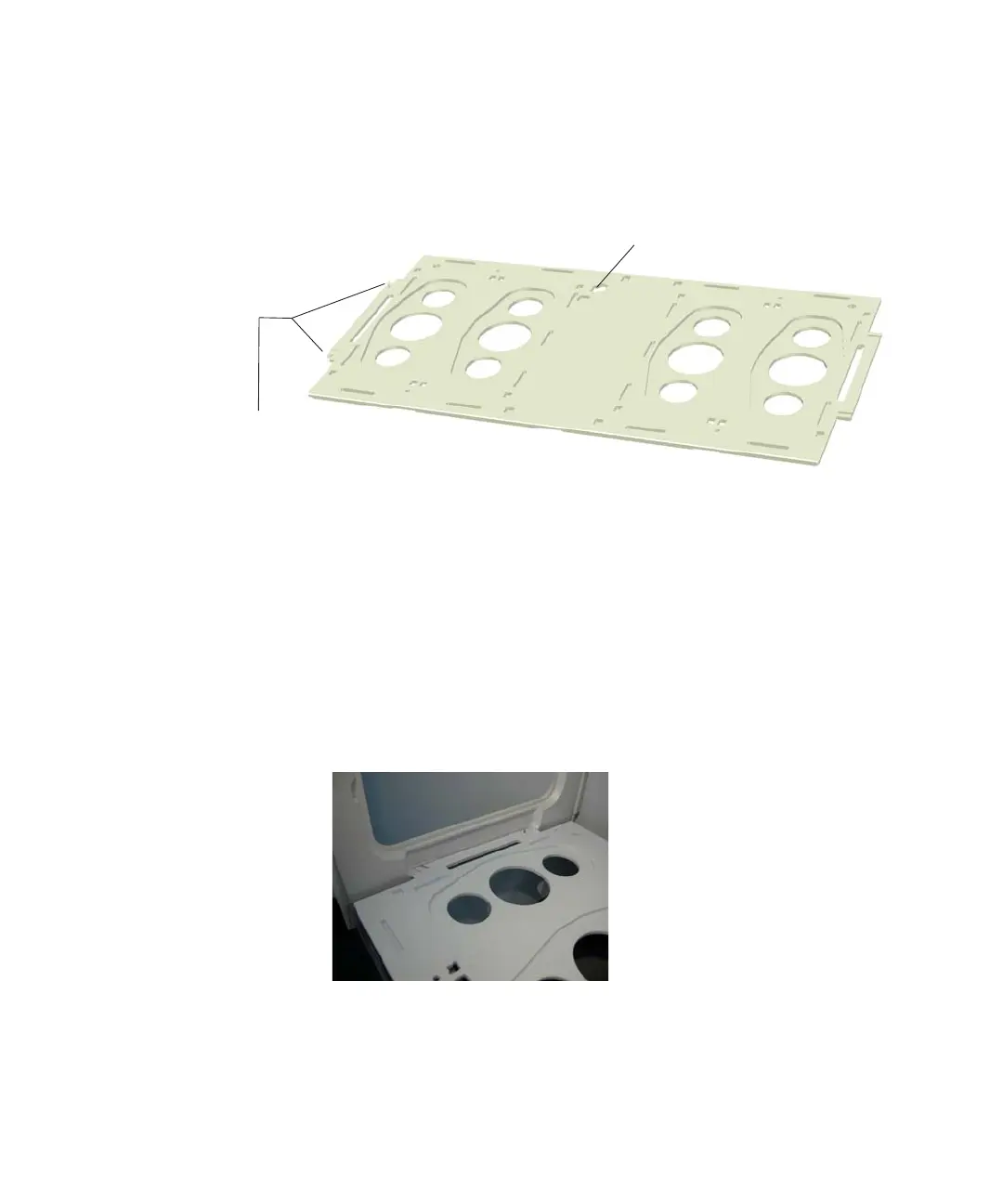

Figure 6 Rack location mat
The autosampler has a separate rack location mat which sits on top of the
spill tray and positions the sample racks (or a rack adapter for 96- well
microtiter plates), standards rack and fixed wash reservoir.
To fit the rack location mat:
1 Ensure that the spill tray is correctly fitted onto the autosampler base
bars.
2 One end of the rack location mat has a "dovetail" feature as shown in
Figures 6 and 7. Orient the rack location mat so the dovetail feature is
on the left hand side.
Figure 7 Rack location mat fitted to the left end frame
3 Ensure that the slot for the fixed wash reservoir is located at the rear
of the unit when installing the rack location mat.
Default fixed wash
reservoir position
Dovetail feature
located at left edge
of frame
