84 Agilent SPS 4 Autosampler User’s Guide
A Appendices

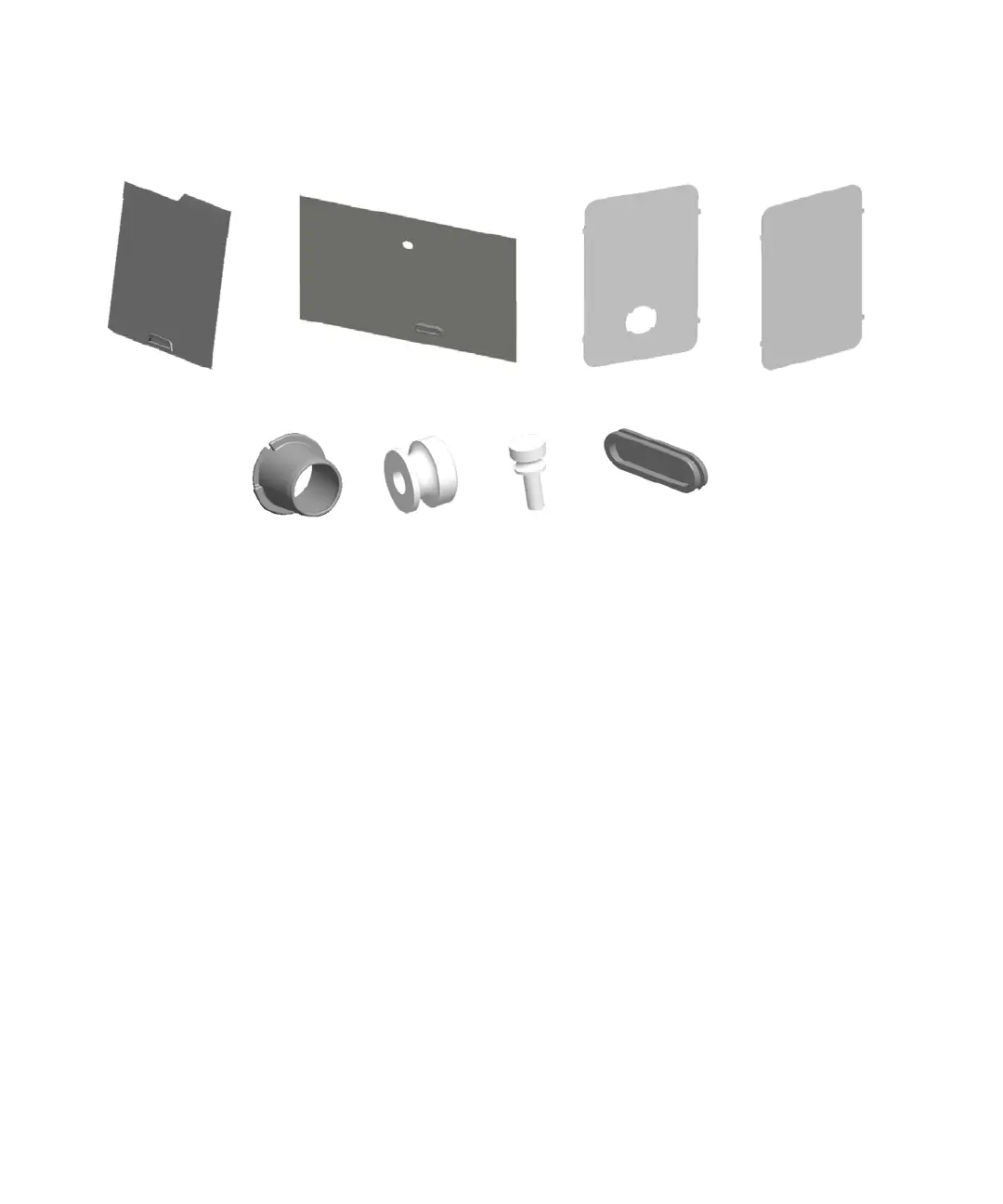

Figure 21 Components in the autosampler cover kit
Installing your Autosampler Cover
Fitting the Rear Cover
1 Remove the cable ducting that clips onto the rear of the end frame to
hold the power and communication cables in place.
2 Remove the Spill Tray and the Rack Location Mat.
3 Lay the unit forward onto its front while supporting the probe arm.
1x Front Cover
1x Rear Cover
1x Side Cover with a hole
1x Side Cover (Blank)
1x Nut
1x Screw
1x Grommet
(fitted to rear cover)
1x Duct Hose
Connection
To Next Page
