Appendices A
Agilent SPS 4 Autosampler User’s Guide 85

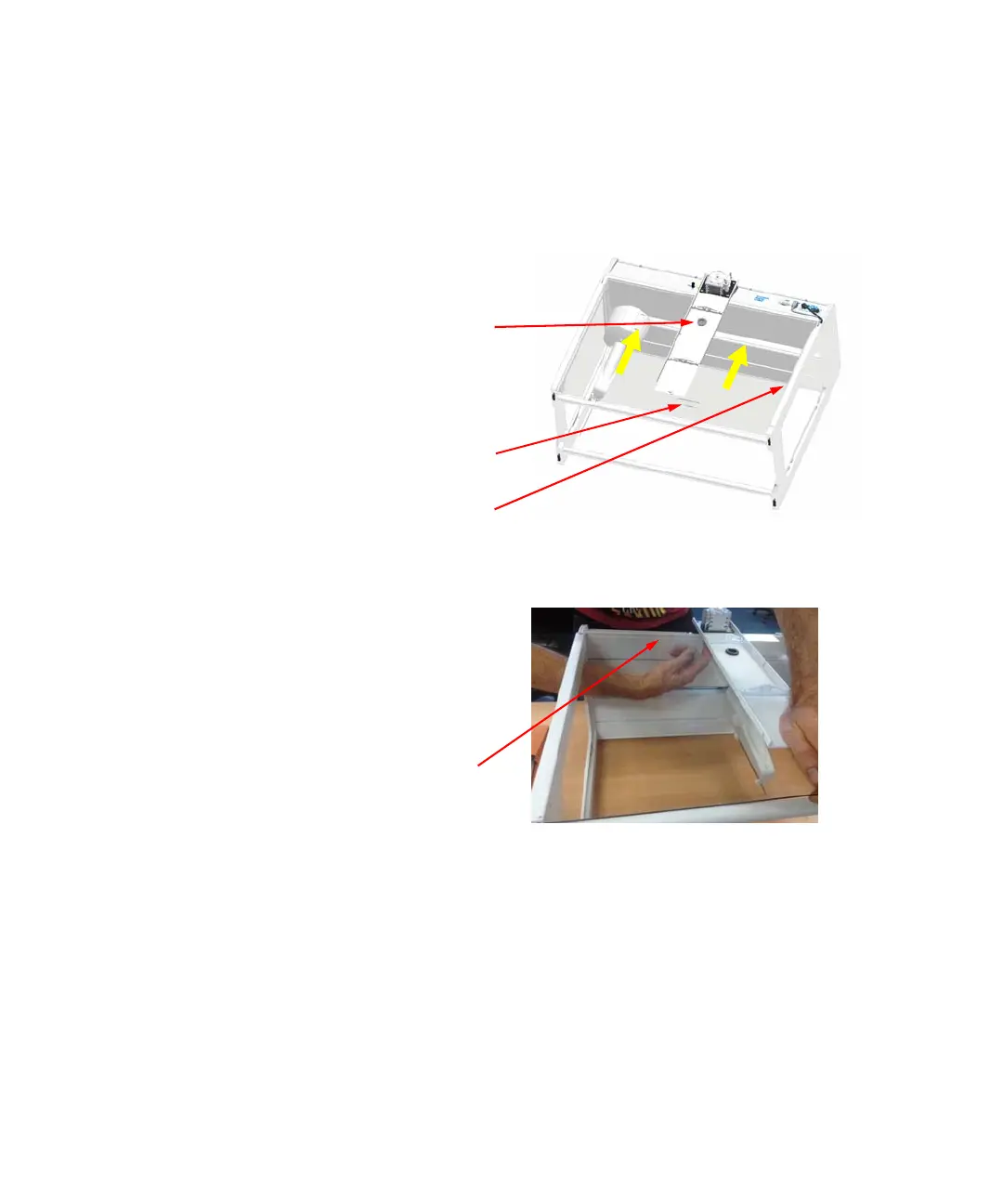

4 Slide the Rear Cover into the slots in the bottom of the end frames
with the fitted grommet to the right side of the wash pump tubing
ducting as shown below.
5 Lift the top of the end cover up over the edge of the chassis as shown
below.
Grommet in pump
ducting to align with
hole in cover
Grommet to right side
Remove cable ducting
Lift cover up over
this edge
