Agilent Technologies SPS 4 - Fitting the Sample Probe

42 Agilent SPS 4 Autosampler User’s Guide
3 Installation
Fitting the Sample Probe

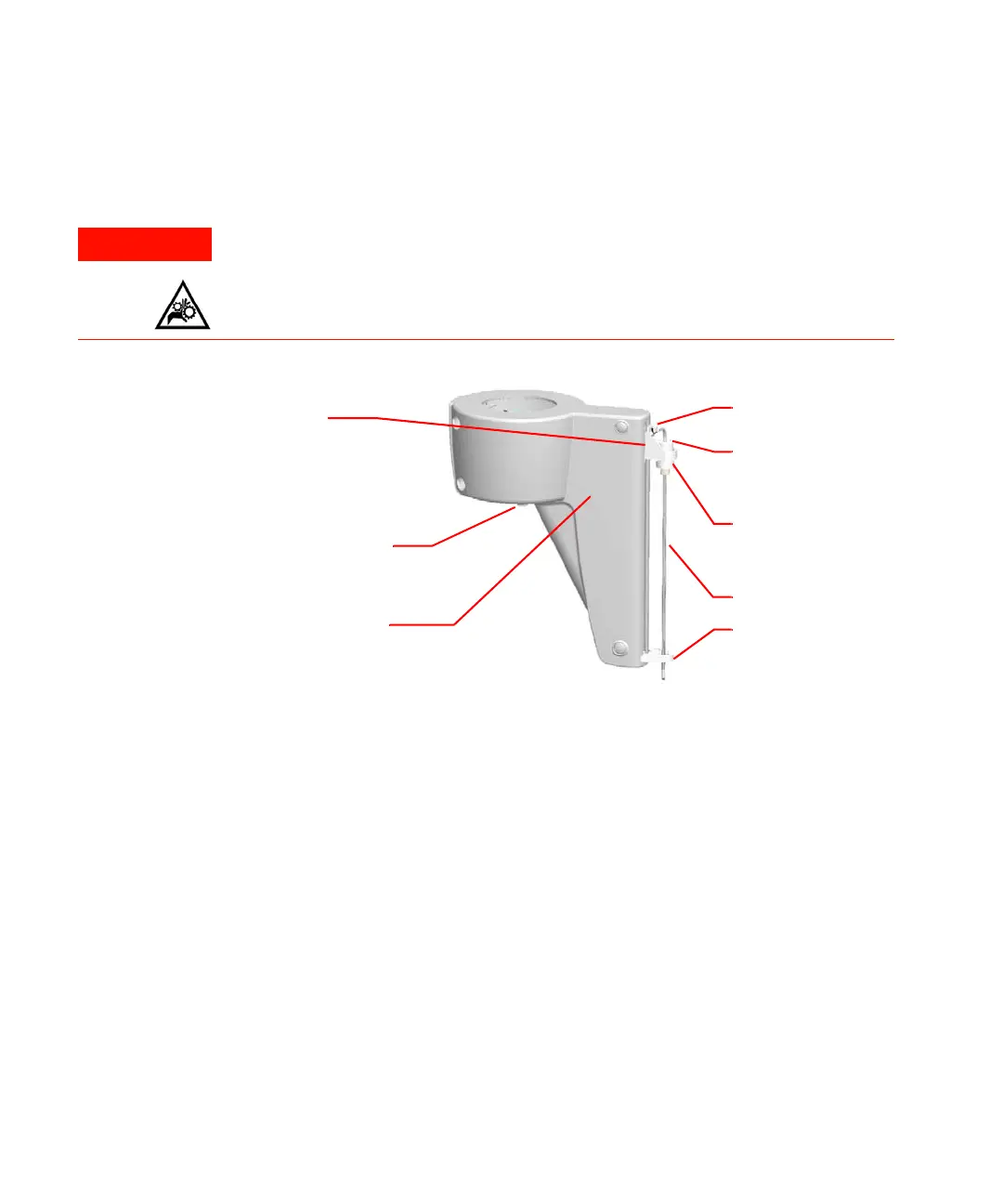

Figure 13 Installing the sample probe
To fit the sample probe:
1 Turn the autosampler off.
2 Manually rotate the probe arm so it faces the front of the autosampler
for easy access.
3 Undo the mount nut from the probe mount block on the sample probe
and slide the nut off the sample probe.
4 Place the mount nut from the sample probe on top of the accessories
plate with the recessed edge facing up and the holes approximately
aligned.
5 Move the Z- axis slide down stopping just above mount nut sitting on
the accessories plate.
WARNING
Always switch off the power to the autosampler before installing or removing the
sample probe.
Z-Axis Slide
Eyelet for tube routing
Tube routing this side
Tube restraint
Probe mount block
Mount nut
Sample probe
Accessories plate
