VS Series Helium Mass Spectrometer Leak Detectors
1-4
DRAFT 4/
23/15
1.1.1 VS Series Leak Detector Configurations
This section contains outline drawings of the leak detector configurations. Dimensions are
given in inches, in brackets, and in mm, below the brackets.

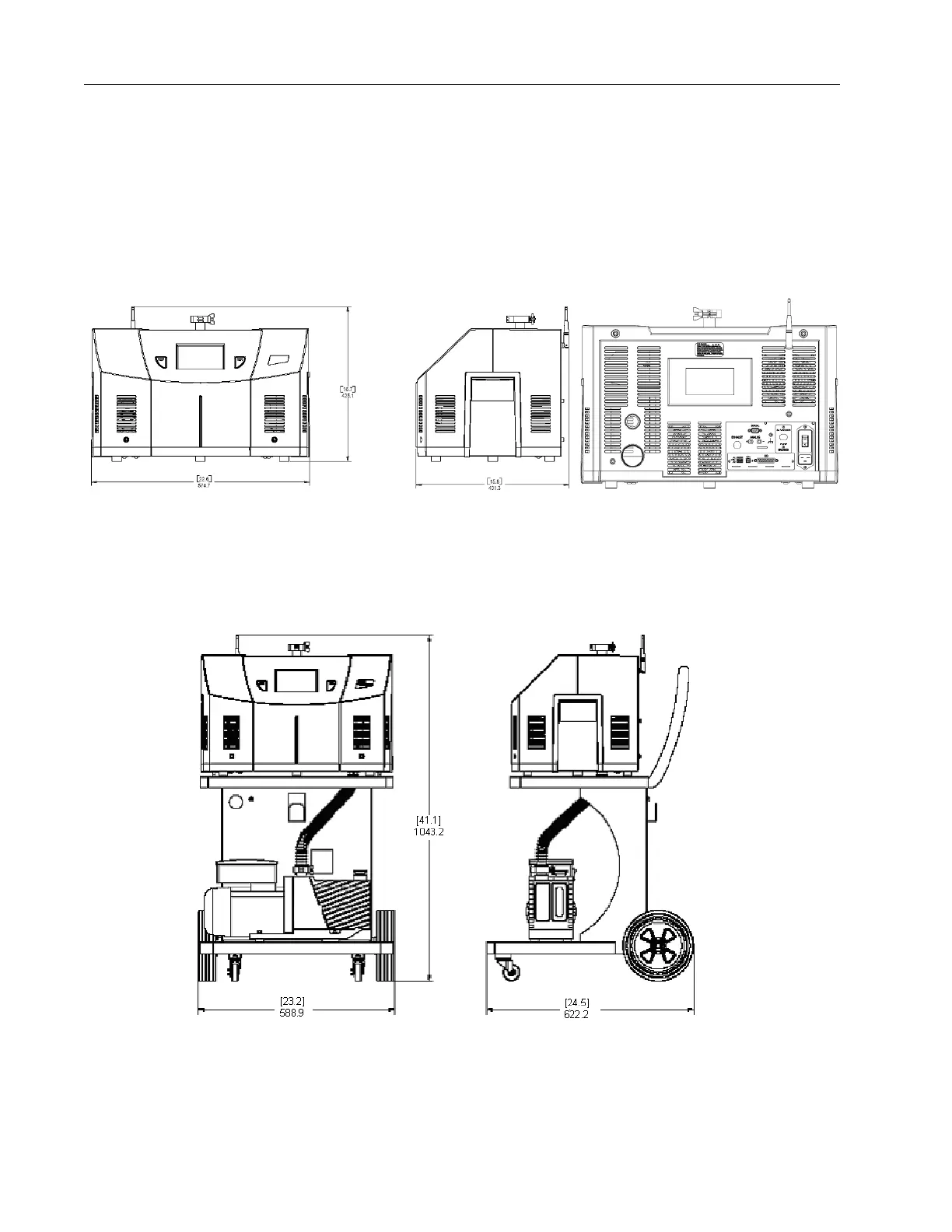

Figure 1-1 shows the outline drawing and physical dimensions of the portable leak detector
with Internal DS42 Wet Rotary Vane Pump, Model VS PR02 and the PD03, which utilizes a
Agilent IDP-3 dry pump.
Figure 1-1 Portable Leak Detector with Internal DS42 Wet Rotary Vane Pump, Model VS
PR02, and Portable Leak Detector with Internal IDP-3 (PD03) Dimensions
Figure 1-2 shows the outline drawing and physical dimensions of a mobile leak detector
with External DS302 Wet Rotary Vane Pump on a Cart, Model VS MR15.
Figure 1-2 Mobile Leak Detector with External DS302 Wet Rotary Vane Pump on a Cart,
Model VS MR15, Dimensions*
* Cart front panel not shown for clarity.
