1.4 Front Panel Display and Controls
The front panel (Figure 1-13) consists of two hard buttons: TEST and VENT and an LCD
display to access the software control screens. All operator control and monitoring of results
are achieved via the resident software accessed using the Home screen. Table 1-3 on
page 1-22 lists the main sub-screens and their purpose. Operational discussions are in
Section 2 “Operating the Leak Detector” on page 2-1 and in Section 3 “Set-Up”.

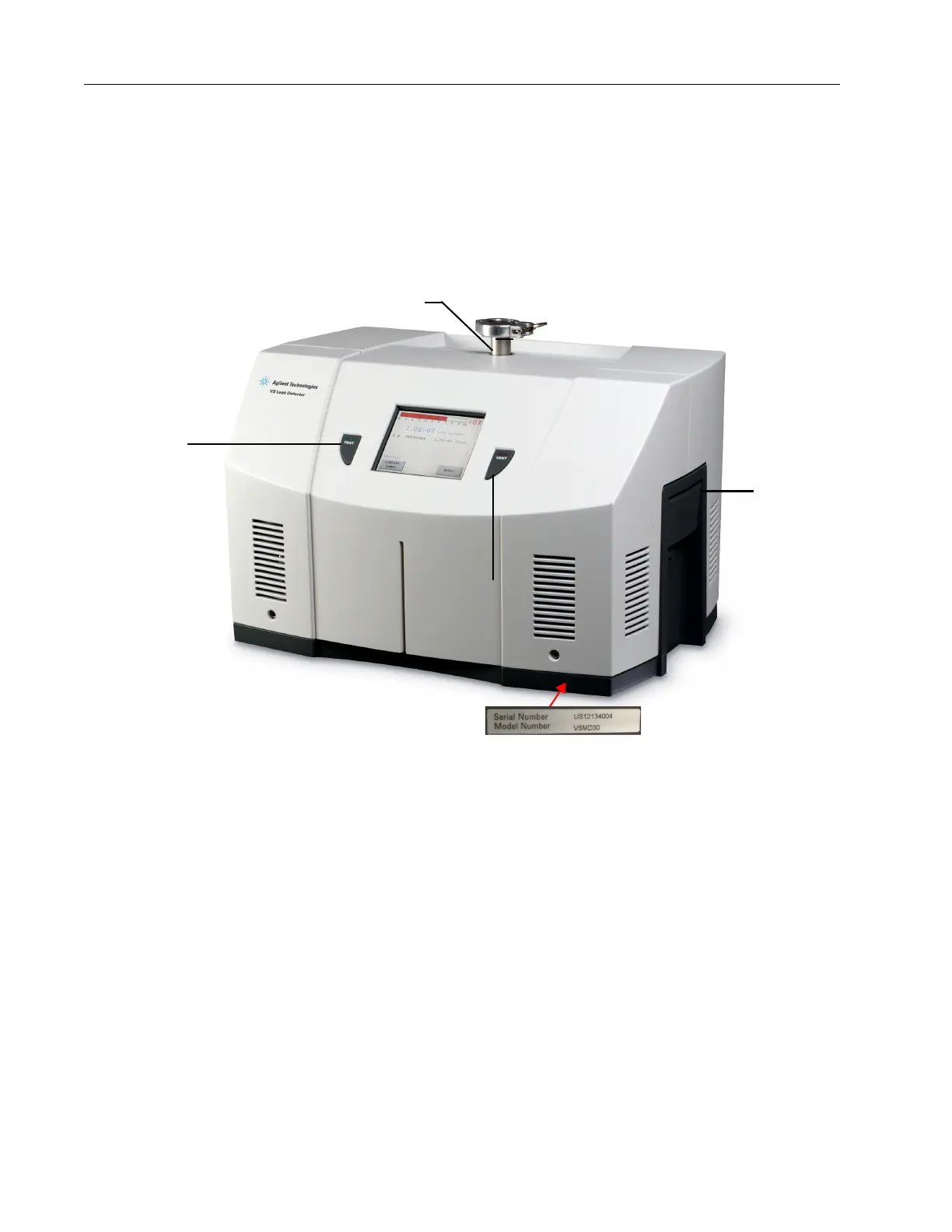

Figure 1-13 Front Panel Displays and Controls
The front panel display touch panel is calibrated at the factory and should not require
recalibration. If the touch panel buttons do not respond to pushes, recalibrate as follows:
1. Turn off the leak detector power.
2. Press and hold the center of the touch panel and restart power.
A blue screen appears.
3. Press the four cross hairs on the screen and accept the calibration.
Display
TEST (Hard)
Test Po r t
VENT (Hard)
Button
Button
Handle
(Recessed)
Model/Serial Number
Label
