VS Series Helium Mass Spectrometer Leak Detectors
2-14
DRAFT 4/
23/15
NOTE Figure 2-5 appears within the first twenty minutes of operation
if calibrate is selected. This message advises you that a twenty
minute warm up is strongly recommended after a cold start up.
This twenty minute warm up ensures optimum instrument
calibration and peak performance.
❑ Select No - No calibration is performed
❑ Select Yes - Calibration begins.
❑ No action - Keeps the message displayed and the leak
detector automatically calibrates after the 20 minute timer
times out. This could be slightly longer if the leak detector
has been off for a long period of time.

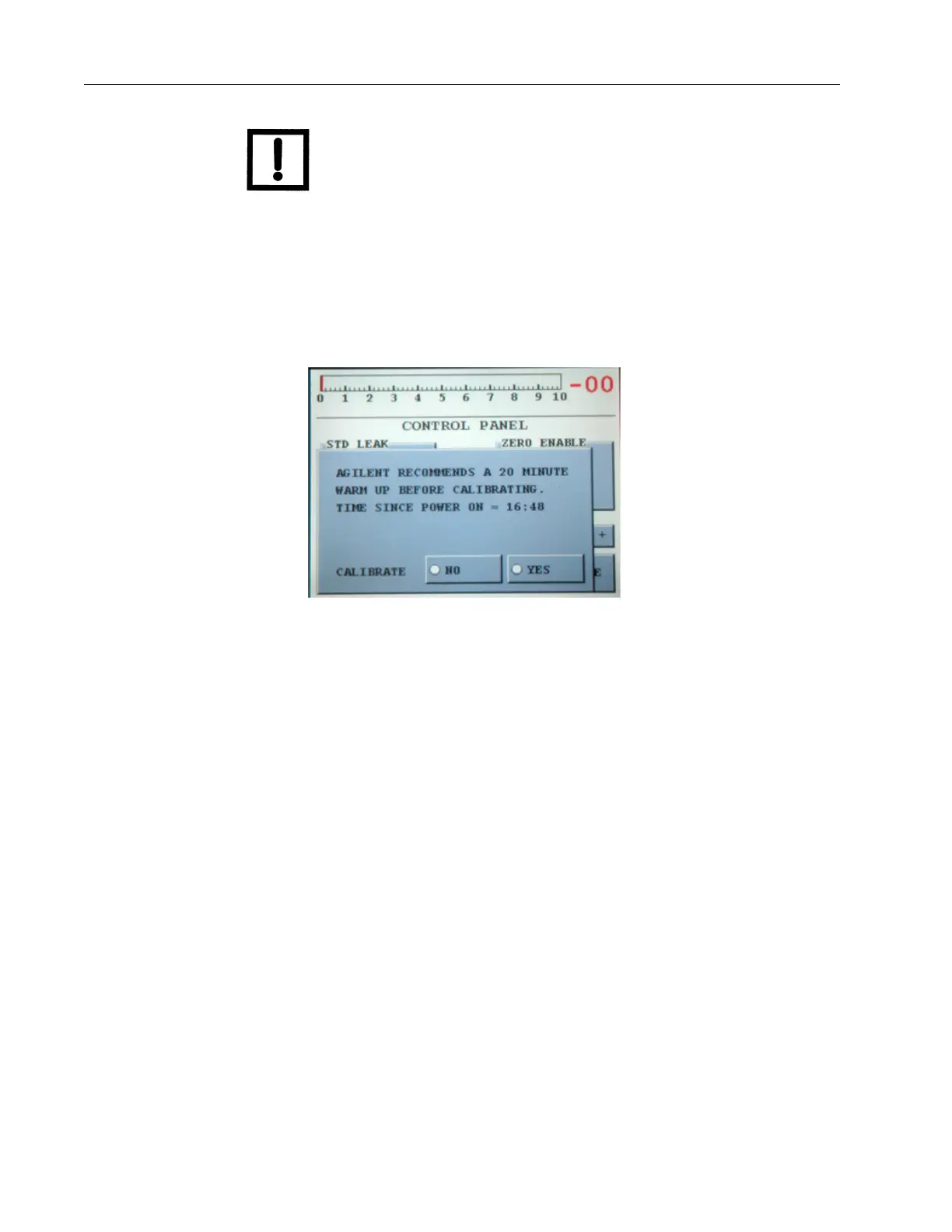

Figure 2-5 20 Minute Warm-up Dialog
