Agilent Technologies VS Series - Mobile Leak Detector with External TS620 Dry Scroll Pump on a Cart, Model VS MD30 Dimensions*

VS Series Helium Mass Spectrometer Leak Detectors
DRAFT 4/23/15
1-5

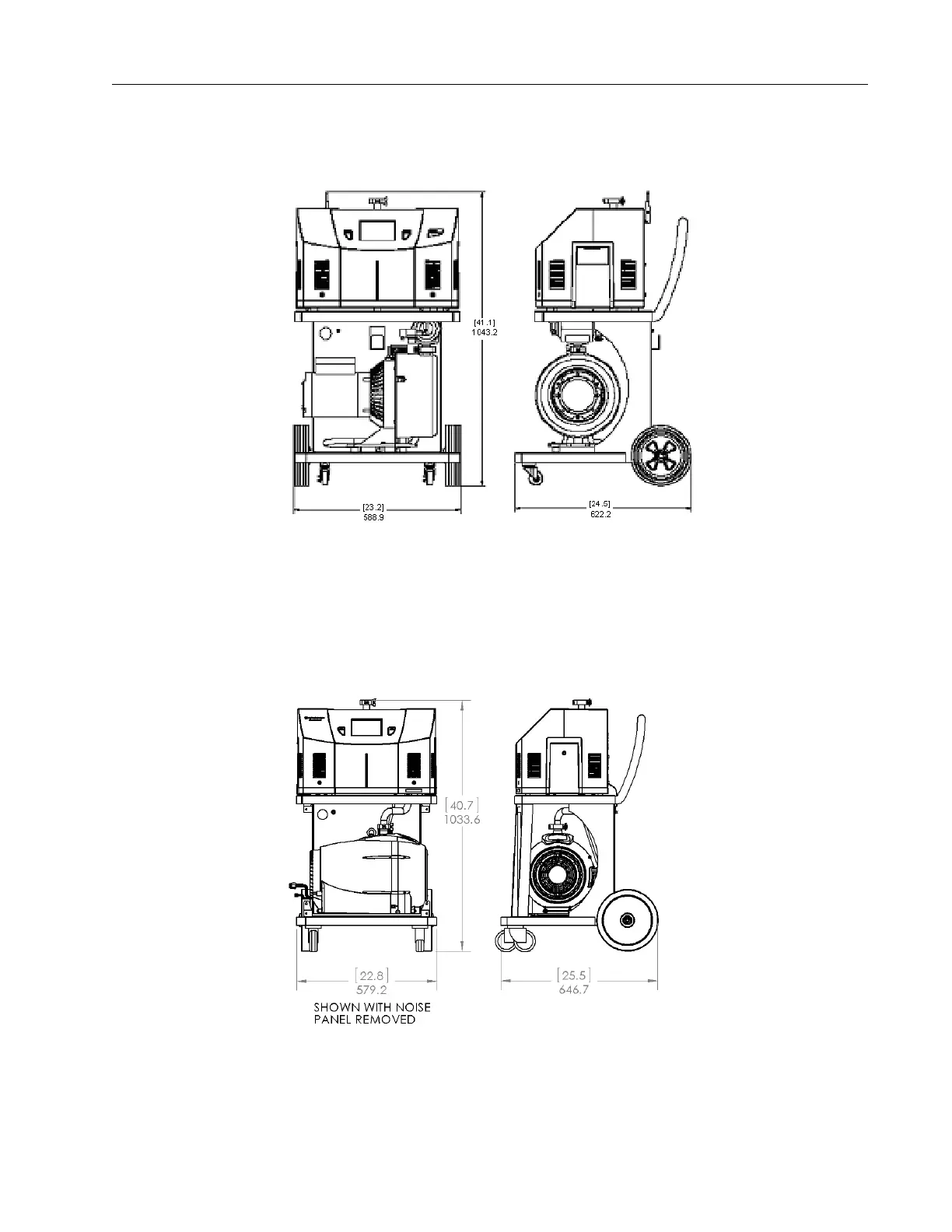

Figure 1-3 shows the outline drawing and physical dimensions of a Mobile Leak Detector
with External TS620 Dry Scroll Pump on a Cart, Model VS MD30+.
Figure 1-3 Mobile Leak Detector with External TS620 Dry Scroll Pump on a Cart, Model VS
MD30+, Dimensions*
* Cart front panel not shown for clarity.
Figure 1-4 shows the outline drawing and physical dimensions of a Mobile Leak Detector
with External IDP-15 Dry Scroll Pump on a Cart, Model VS MD15.
Figure 1-4 Mobile Leak Detector with External IDP-15 Dry Scroll Pump on a Cart, Model VS
MD15, Dimensions*
* Cart front panel not shown for clarity.
