Agilent Technologies VS Series - Location of Rear Cover Screws

VS Series Helium Mass Spectrometer Leak Detectors
DRAFT 4/23/15
1-11
To install o i l i n the pump:
1. Unplug the power cord.
2. Use the hex wrench provided to remove the rear cover by removing the four screws
(
Figure 1-5).

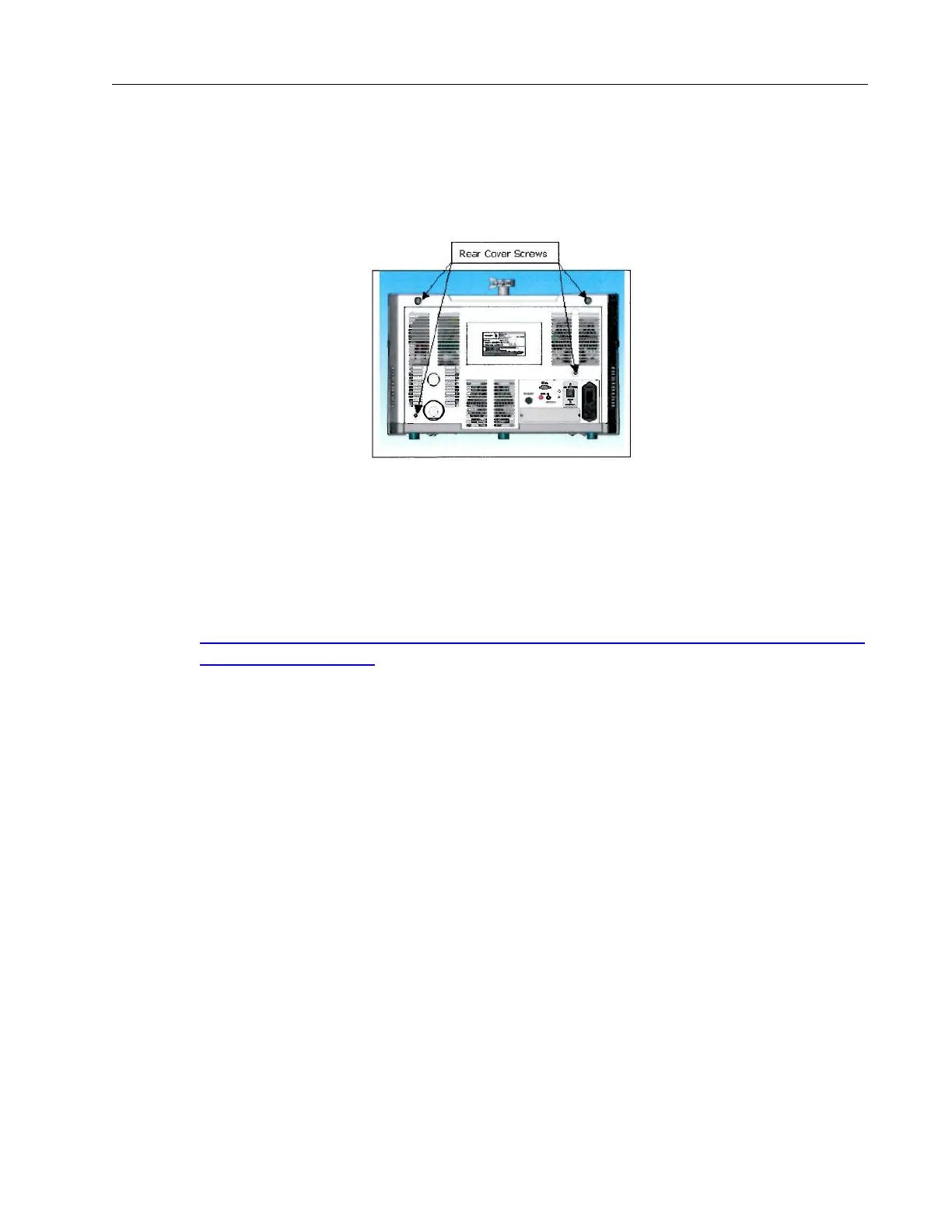

Figure 1-5 Location of Rear Cover Screws
3. Locate the oil fill point on the pump and install oil.
4. Reinstall the rear cover.
5. Reconnect the power cord.
The pump manuals may also be obtained from the Agilent website:
