2. Disengage the four shipping locks and enable vibration isolation by inserting a 4 mm
Allen wrench into each of the four shipping lock holes and turning the screws clockwise
until significant resistance occurs. The pump body is now floating on its isolation
mounts as in
Figure 1-9. One shipping lock is accessed through an opening in the unit
back panel.

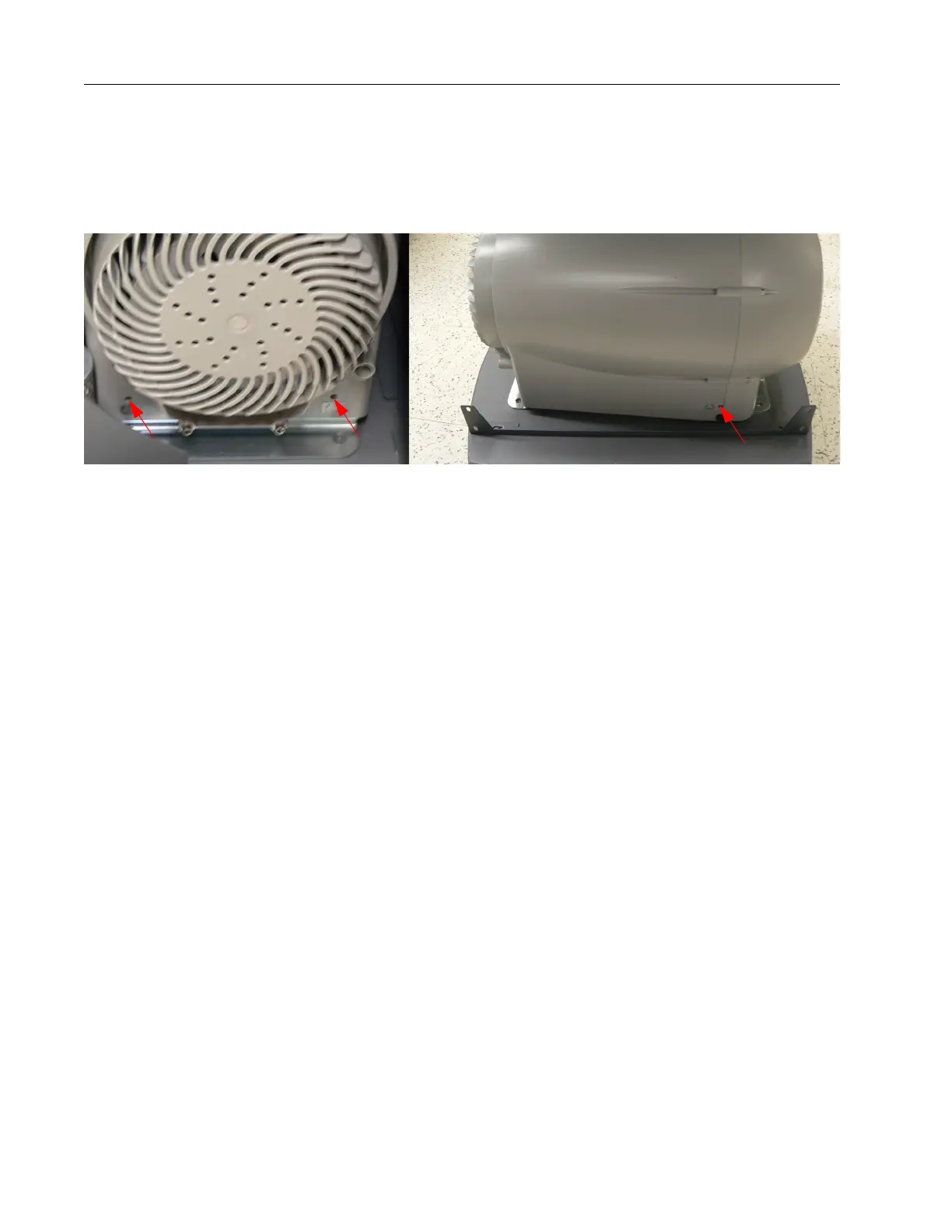

Figure 1-9 TriScroll Shipping Bolt
3. Reinstall the cover.
