VS Series Helium Mass Spectrometer Leak Detectors
DRAFT 4/23/15
1-13
2. Remove the one shipping bolt as in Figure 1-7 using an M5 wrench.

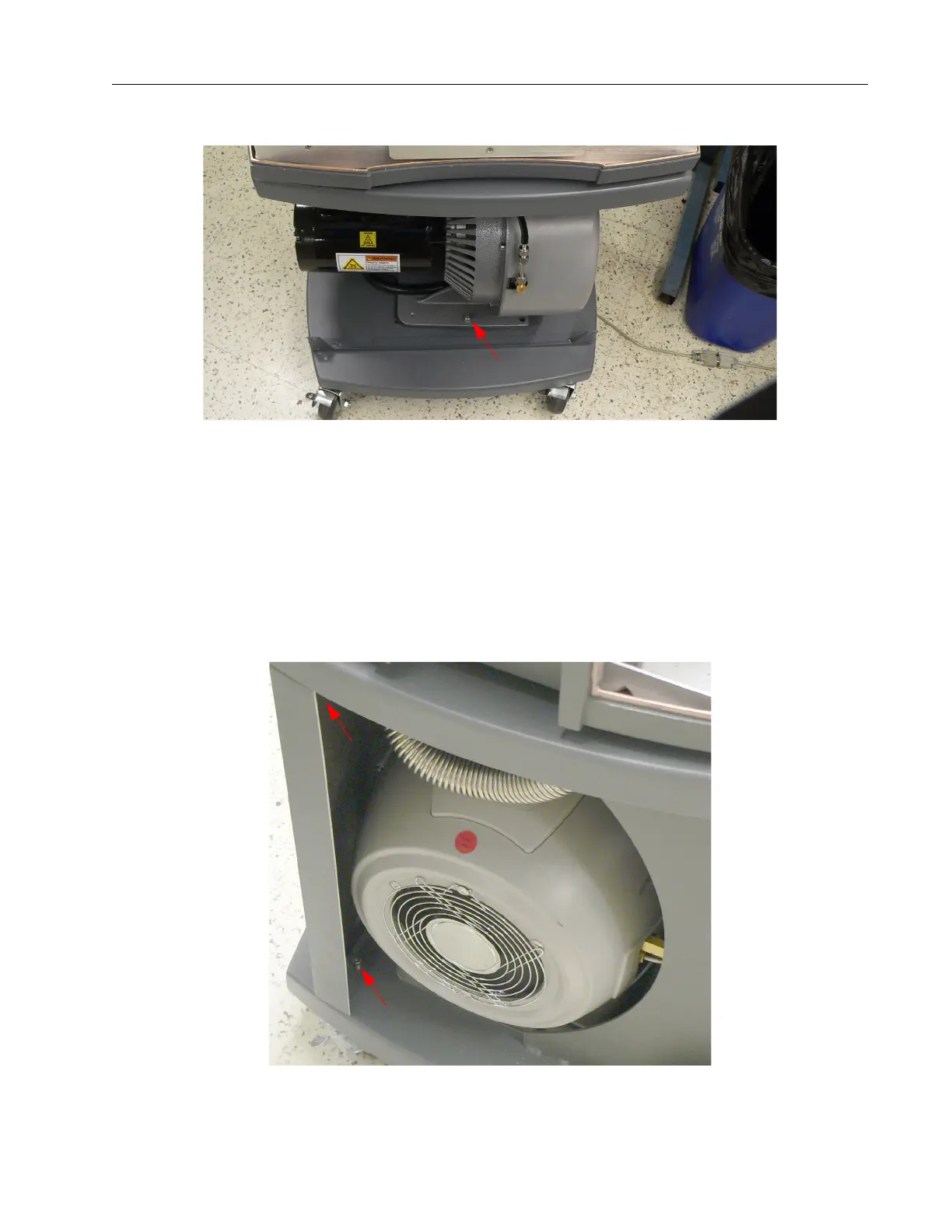

Figure 1-7 TriScroll Shipping Bolt
3. Reinstall the cover.
1.3.2.2 MD/BD15
This unit comes with the IDP-15 pump. This unit has four shipping locks to disengage
before use.
1. Remove the cover by removing the four screws (two shown in Figure 1-8) using an M5
wrench (two on each side).
Figure 1-8 Cover Bolts
