2.

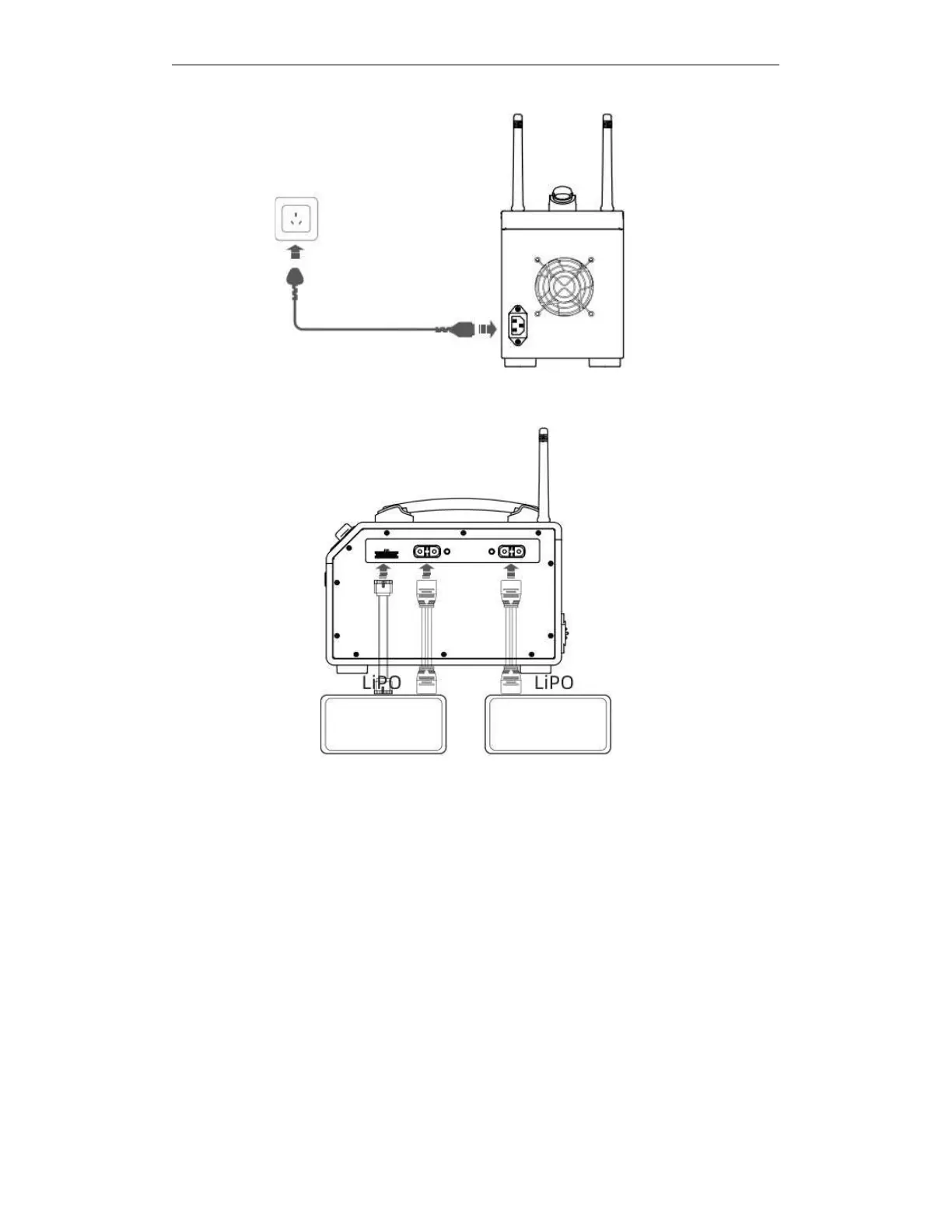

AGR-2600 battery connection diagram, you can connect the battery to the charger, if the
battery socket does not match, connect the battery through the adapter cable.
1.
Before connecting, please check the battery terminals and wiring harness for any obvious
defects such as damage or disconnection;
2.
When using the banana-head adapter cable, be sure to connect it in accordance with the
positive and negative signs.
Instructions
AGR-C2600 is a 4-channel charger with four charging modes: fast charge, standard, slow charge,
and maintenance.
Start-up and self-check
Check all lines-after the connection is correct-press the main switch button of the charger-the
LCD display and the LED indicator light up-and the buzzer turns on at the same time. When the
buzzer ends, the charger completes normal startup and self-checking.
