Allen-Bradley MicroLogix 1200 User Manual

1 Publication 1762-UM001D-EN-P - March 2004

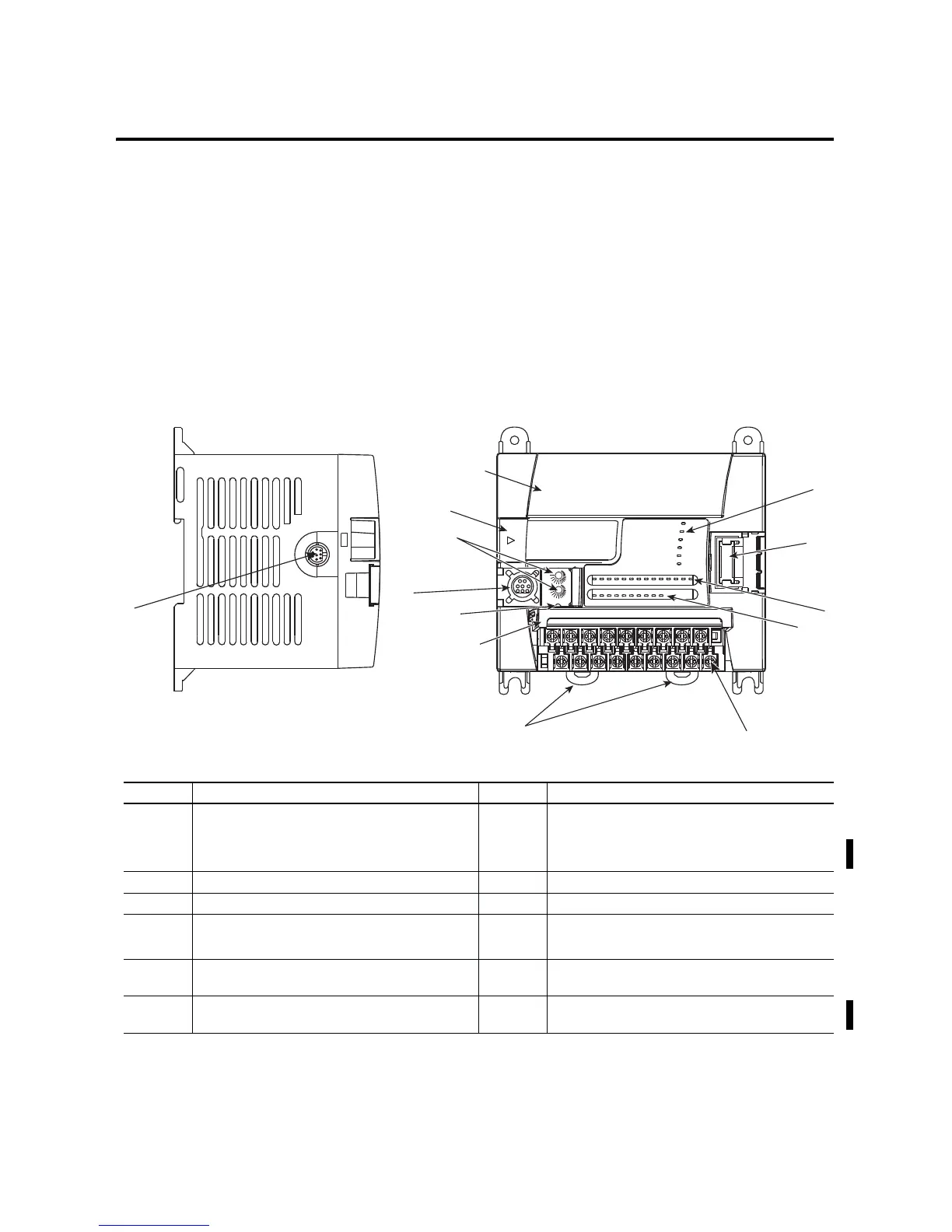

Chapter 1
Hardware Overview
Hardware Features
The Bulletin 1762, MicroLogix 1200 programmable controller contains
a power supply, input and output circuits, and a processor. The
controller is available in 24 I/O and 40 I/O configurations.
The hardware features of the controller are:
Table 1.1 Hardware Features
Feature Description Feature Description
1 Terminal Blocks
(Removable Terminal Blocks on 40-point controllers
only.)
7 Terminal Doors and Labels
2 Bus Connector Interface to Expansion I/O 8 Trim Pots
3 Input LEDs 9 Communications Toggle Push Button
4 Output LEDs 10
Memory Module Port Cover
(1)
-or-
Memory Module and/or Real-Time Clock
(2)
5 Communication Port/
Channel 0
11 DIN Rail Latches
6 Status LEDs 12 Programmer/HMI Port
(Equipped with 1762-LxxxxxR controllers only)
(1)
Shipped with controller.
(2)
Optional equipment.
12
1
2
3
4
5
6
7
7
9
8
10
11
COM
0
1
Side View
Top View

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
