Allen-Bradley MicroLogix 1200 User Manual

Publication 1762-UM001D-EN-P - March 2004
1-2 Hardware Overview

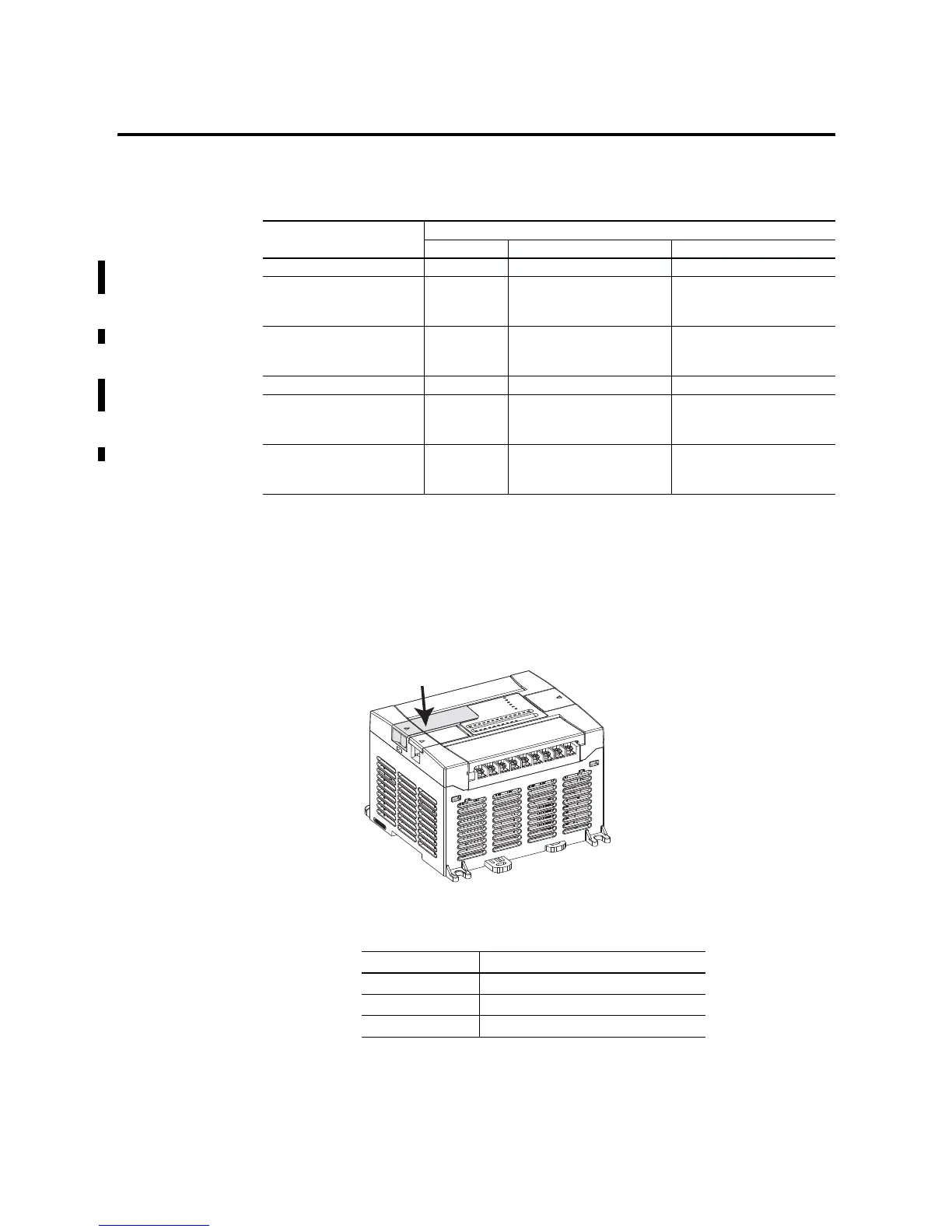

Component Descriptions MicroLogix 1200 Memory Module and/or Real-Time Clock
The controller is shipped with a memory module port cover in place.
You can order a memory module, real-time clock, or memory module
and real-time clock as an accessory.
Table 1.2 Controller Input Power and Embedded I/O
Catalog Number Description
Input Power Inputs Outputs
1762-L24AWA, -L24AWAR 120/240V ac (14) 120V ac (10) relay
1762-L24BWA, -L24BWAR 120/240V ac (10) 24V dc
(4) fast 24V dc
(10) relay
1762-L24BXB, -L24BXBR 24V dc (10) 24V dc
(4) fast 24V dc
(5) relay, (4) 24V dc FET
(1) high-speed 24V dc FET
1762-L40AWA, -L40AWAR 120/240V ac (24) 120V ac (16) relay
1762-L40BWA, -L40BWAR 120/240V ac (20) 24V dc
(4) fast 24V dc
(16) relay
1762-L40BXB, -L40BXBR 24V dc (20) 24V dc
(4) fast 24V dc
(8) relay, (7) 24V dc FET
(1) high-speed 24V dc FET
Table 1.3 Memory Module and/or Real-Time Clock
Catalog Number Descriptions
1762-MM1 Memory Module only
1762-RTC Real-Time Clock only
1762-MM1RTC Memory Module and Real-Time Clock

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
