Hardware Overview 1-3
1762 Expansion I/O
1762 expansion I/O can be connected to the MicroLogix 1200
controller, as shown below.
TIP
zt
A maximum of six I/O modules, in certain
combinations, may be connected to a controller. See
Appendix F System Loading and Heat Dissipation to
determine valid combinations.

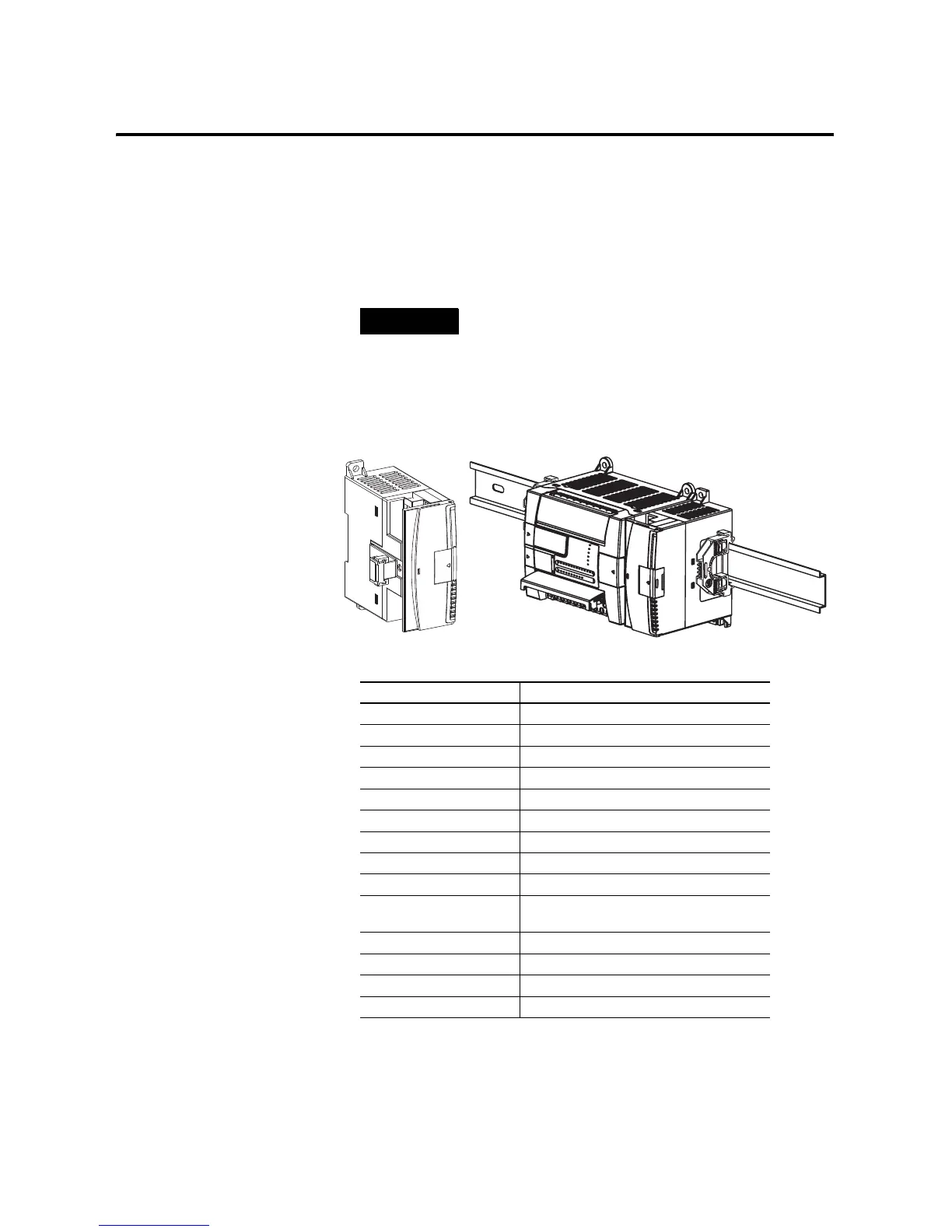

1762 Expansion I/O 1762 Expansion I/O Connected to MicroLogix 1200 Controller
Table 1.4 Expansion I/O
Catalog Number Descriptions
1762-IA8 8-Point 120V ac Input
1762-IQ8 8-Point Sink/Source 24V dc Input
1762-IQ16 16-Point Sink/Source 24V dc Input
1762-OA8 8-Point AC Triac Output
1762-OB8 8-Point Sourcing 24V dc Output
1762-OB16 16-Point Sourcing 24V dc Output
1762-OW8 8-Point AC/DC Relay Output
1762-OW16 16-Point AC/DC Relay Output
1762-OX6I 6-Point Isolated Relay Output
1762-IF2OF2 2-Channel Analog Voltage/Current Input
2-Channel Analog Voltage/Current Output
1762-IF4 4-Channel Analog Voltage/Current Input
1762-OF4 4-Channel Analog Voltage/Current Output
1762-IR4 RTD/Resistance Input
1762-IT4 Thermocouple/mV Input

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
