Wiring Your Controller 3-17

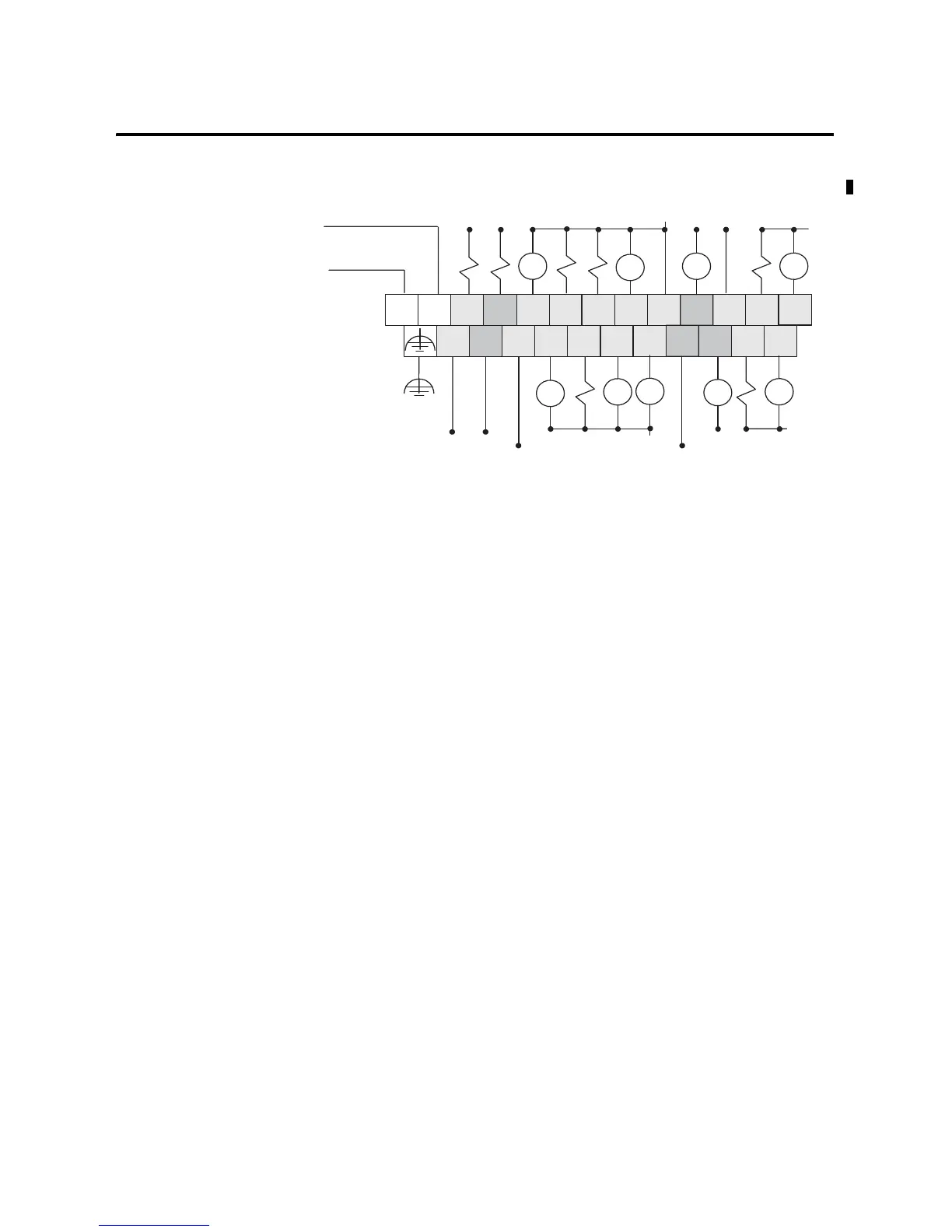

Figure 3.20 1762-L40BXB and 1762-L40BXBR Output Wiring Diagram
Controller I/O Wiring Minimizing Electrical Noise
Because of the variety of applications and environments where
controllers are installed and operating, it is impossible to ensure that
all environmental noise will be removed by input filters. To help
reduce the effects of environmental noise, install the MicroLogix 1200
system in a properly rated (i.e. NEMA) enclosure. Make sure that the
MicroLogix 1200 system is properly grounded.
A system may malfunction due to a change in the operating
environment after a period of time. We recommend periodically
checking system operation, particularly when new machinery or other
noise sources are installed near the Micrologix 1200 system.
Expansion I/O Wiring
Discrete Wiring Diagrams
The following illustrations show the discrete expansion I/O wiring
diagrams.
CRCR
CR
CR
CR
CR
CR
CR
-DC
-DCe
-DCe
+DCd
-DCd
-DCc
-DCc
-DCd
-DCa
+DC
-DCb
+DCe
+DCa +DCb
+DCc
OUT
11
OUT
VDC
NEUT
VAC
DC 0
VAC
DC 1
VDC
2
OUT
3
OUT
57
OUT
VAC
DC3
OUT
14
OUT
12
OUT
15
+24
VDC
OUT
0
OUT
1
OUT
2
OUT
8
COM OUT
13
OUT
10
VAC
DC 4
9
OUT
4
OUT
6
CR

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
