Publication 1762-UM001D-EN-P - March 2004
3-18 Wiring Your Controller

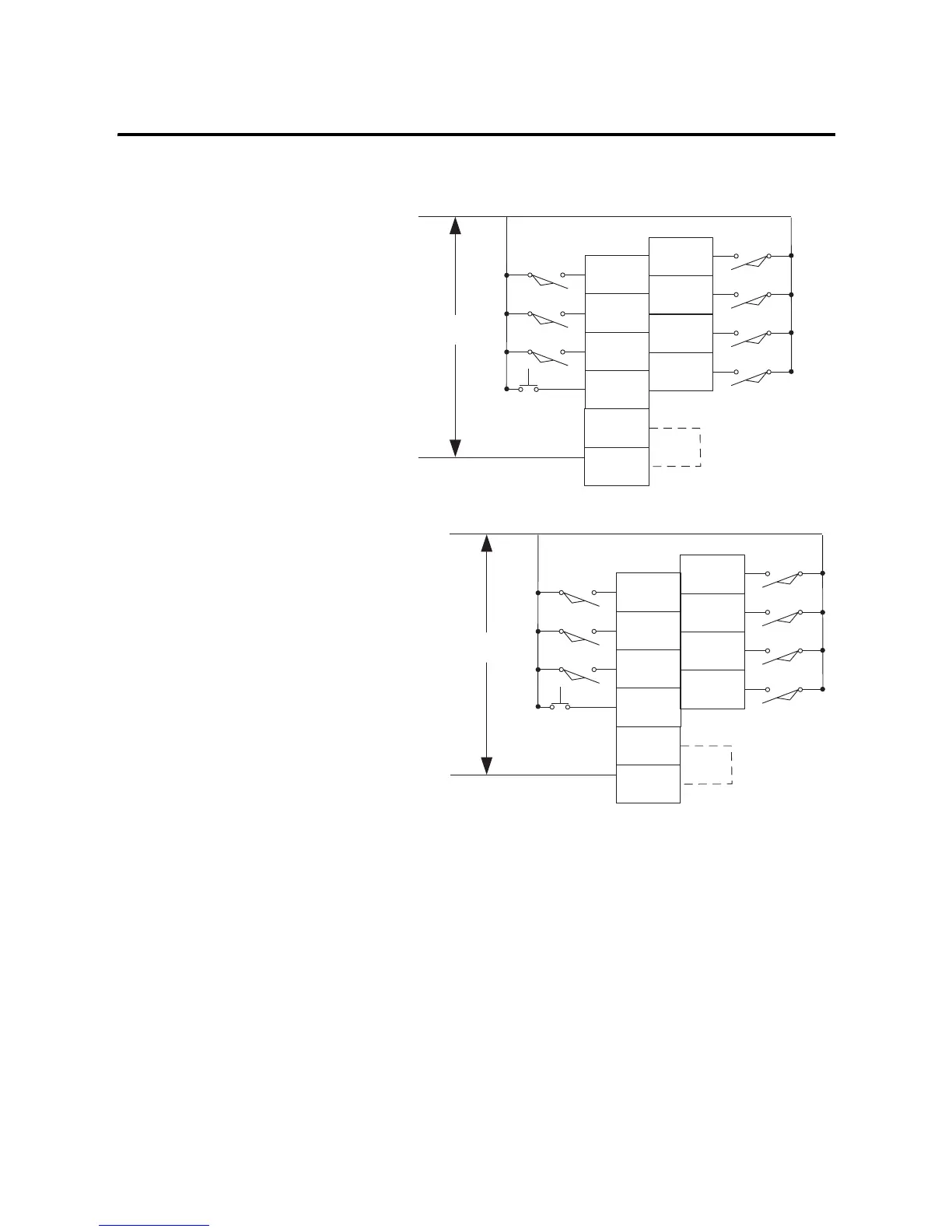

Figure 3.21 1762-IA8 Wiring Diagram
Figure 3.22 1762-IQ8 Wiring Diagram
IN 7
IN 5
IN 3
IN 1
AC
COM
IN 6
IN 4
IN 2
IN 0
L1
L2
100/120V ac
AC
COM
Common
connected
internally.
IN 7
IN 5
IN 3
IN 1
DC
COM
IN 6
IN 4
IN 2
IN 0
24V dc
DC
COM
Common connected
internally.
-DC (sinking)
+DC (sourcing)
+DC (sinking)
