Publication 1762-UM001D-EN-P - March 2004
A-12 Specifications

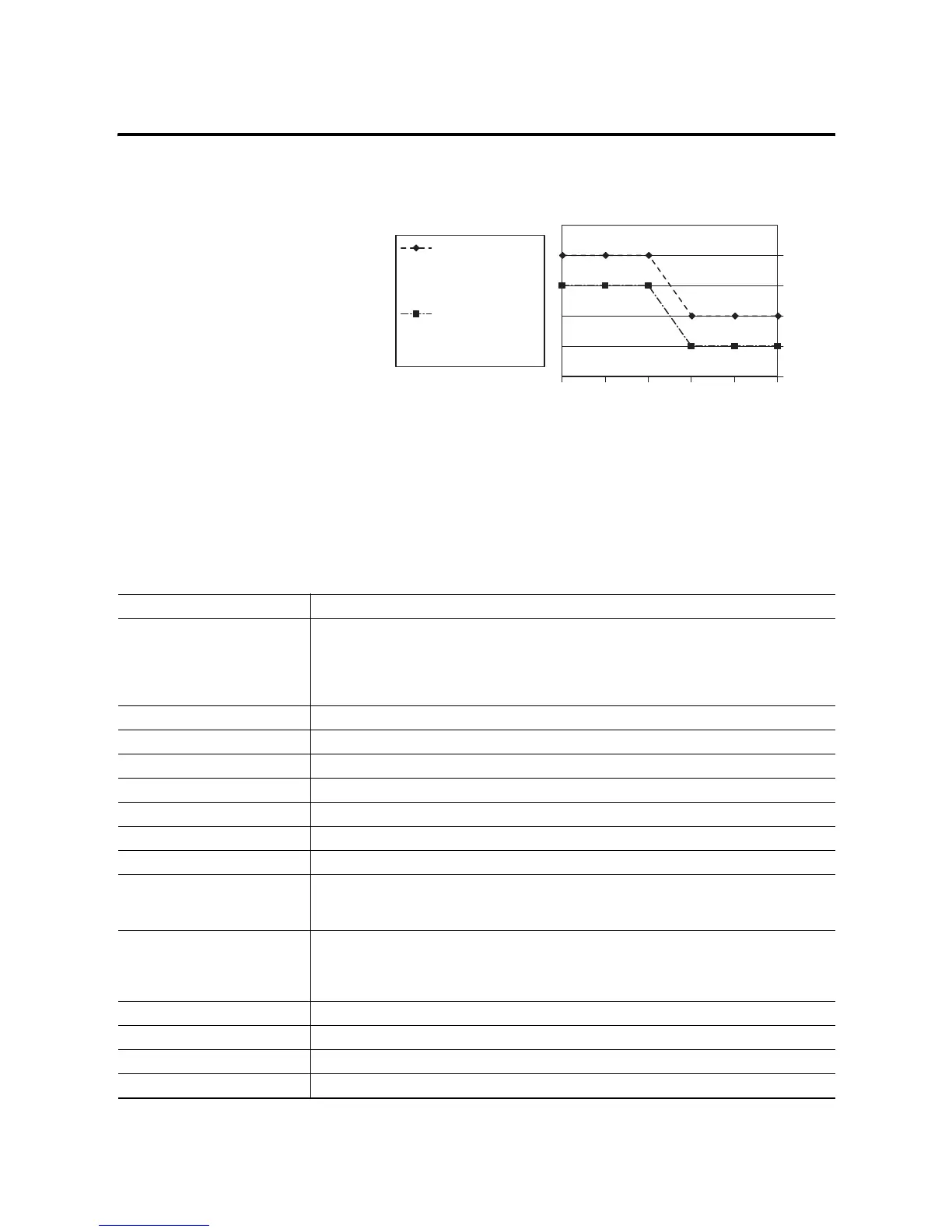

Relays Used vs. Maximum Current per Relay (24V dc) 1762-OX6I
Analog Modules
123
3
4
5
6
7
8
45 6
Number of Relays Controlling Loads
Maximum Current per Relay (Amps)
Ambient Temperature
below 40°C
Ambient Temperature
above 40°C
Table A.18 Common Specifications
Specification 1762-IF2OF2, 1762-IF4, 1762-IR4, 1762-IT4 and 1762-OF4
Dimensions 90 mm (height) x 87 mm (depth) x 40 mm (width)
height including mounting tabs is 110 mm
3.54 in. (height) x 3.43 in. (depth) x 1.58 in. (width)
height including mounting tabs is 4.33 in.
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Temperature 0°C to +55°C (-32°F to +131°F)
Operating Humidity 5% to 95% non-condensing
Operating Altitude 2000 meters (6561 feet)
Vibration Operating: 10 to 500 Hz, 5G, 0.030 in. max. peak-to-peak
Shock Operating: 30G
Module Power LED On: indicates power is applied.
Recommended Cable Belden™ 8761 (shielded)
(For 1762-IT4, Shielded thermocouple extension wire for the specific type of thermocouple you are
using. Follow thermocouple manufacturer’s recommendations.)
Agency Certification C-UL certified (under CSA C22.2 No. 142)
UL 508 listed
CE compliant for all applicable directives
C-Tick markred for all applicable acts (1762-IR4 and 1762-IT4)
Hazardous Environment Class Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
Noise Immunity NEMA standard ICS 2-230
Radiated and Conducted Emissions EN50081-2 Class A
Electrical /EMC: The module has passed testing at the following levels:
