Allison B 400 - Deutsch Bulkhead Connector (Male;Female)

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–8 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

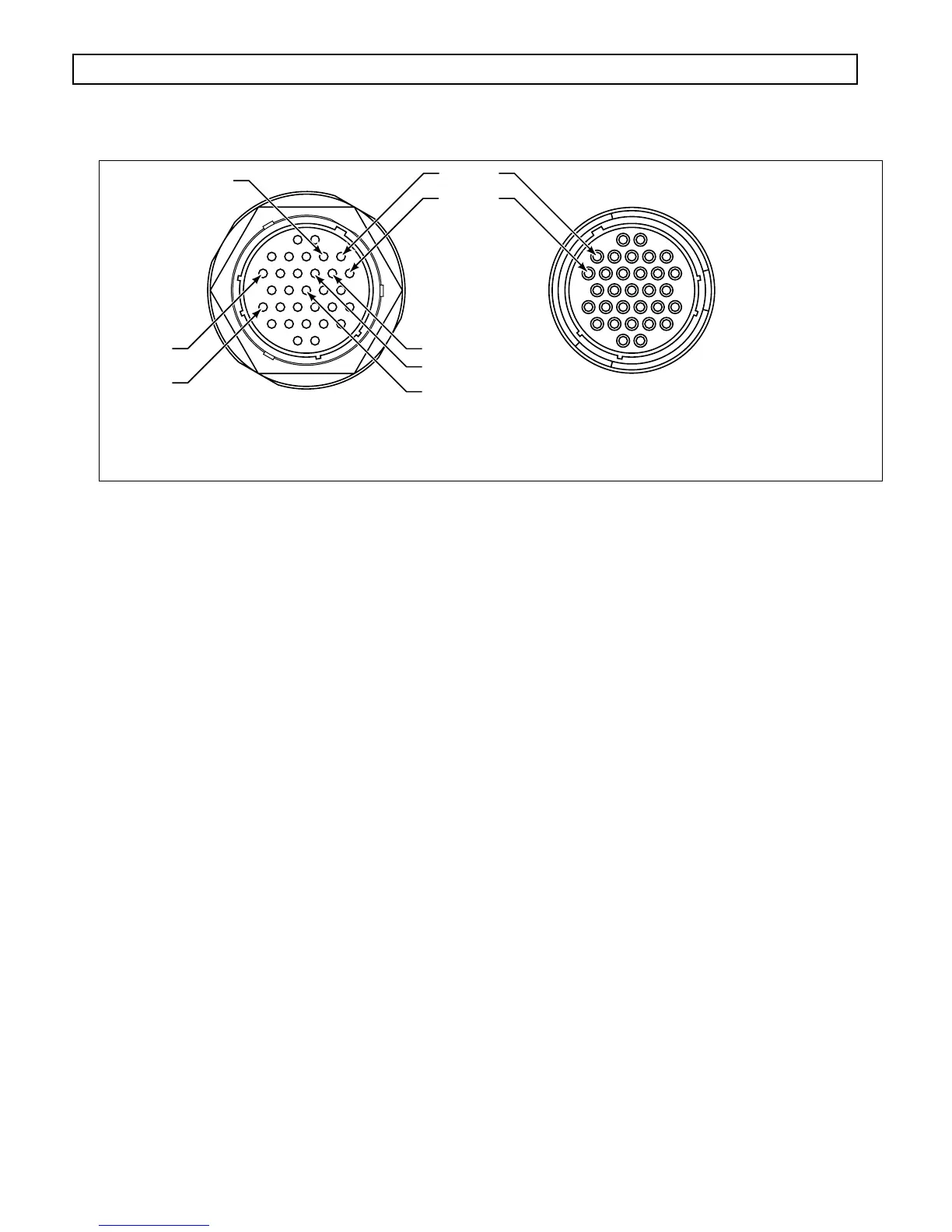

Figure D–4. Deutsch Bulkhead Connector, ECD (Male/Female)
DEUTSCH BULKHEAD CONNECTOR (MALE/FEMALE)
Terminal No. Color Wire No. Description Termination Point(s)
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
A Orange
102
SGD1
ECU, A2
B Green 103 CSOL ECU, A3
C White 104 GSOL ECU, A4
D White 106 LOPR ECU, A6
E Green 107 FSHI ECU, A7
f Blue Blue 109 101 KSOL NSLO ECU, A9 ECU, A1
F White 110 FSOL ECU, A10
G White 120 ASOL ECU, A20
H Violet 121 SGD2 ECU, B21
d Violet 122 SGD4 ECU, A22
a Red 124 TPHI ECU, A24
c White 127 HSOL ECU, A27
J Orange 128 BSOL ECU, A28
K Violet 129 FSOL ECU, A29
L Yellow 130 SGD3 ECU, A30
M Blue 131 DSOL ECU, A31
e Yellow Green 134 111 KSHI JSOL ECU, A34 ECU, A11
N Green 135A TPLO ECU, B1
g Orange Yellow 138 116 RETT NSHI ECU, B4 ECU, A16
R Yellow 139 NOHI ECU, B5
U Blue 140 NTLO (MD Only) ECU, B2
T Violet 141 NEHI ECU, B7
P Violet 147 OILT ECU, B13
Q Green 148 NOLO ECU, B14
V Orange 149 NTHI (MD Only) ECU, B15
S Orange 150 NELO ECU, B16
b Blue 156 TPOT ECU, B22
W Yellow 161A SNGD ECU, B27
X White 162 C3PS ECU, B28
Y Blue 165 LOIL ECU, B3
Z -------- Drain 1 NTDRN (24V Only) Splice to 143D
Orange 201 Spare
Yellow 202 Spare
Green 203 Spare
CAVITY A
CAVITY B
P
J
H
N
a
g
PLUG
RECEPTACLE
V01111.01
NOTE: 1. Letters I and O are not used.
2. Plug cavities are lettered counterclockwise.
Receptacle cavities are lettered clockwise.
