Allison B 400 - Resistance Module Type 9 - Two Pressure Switch

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–42 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

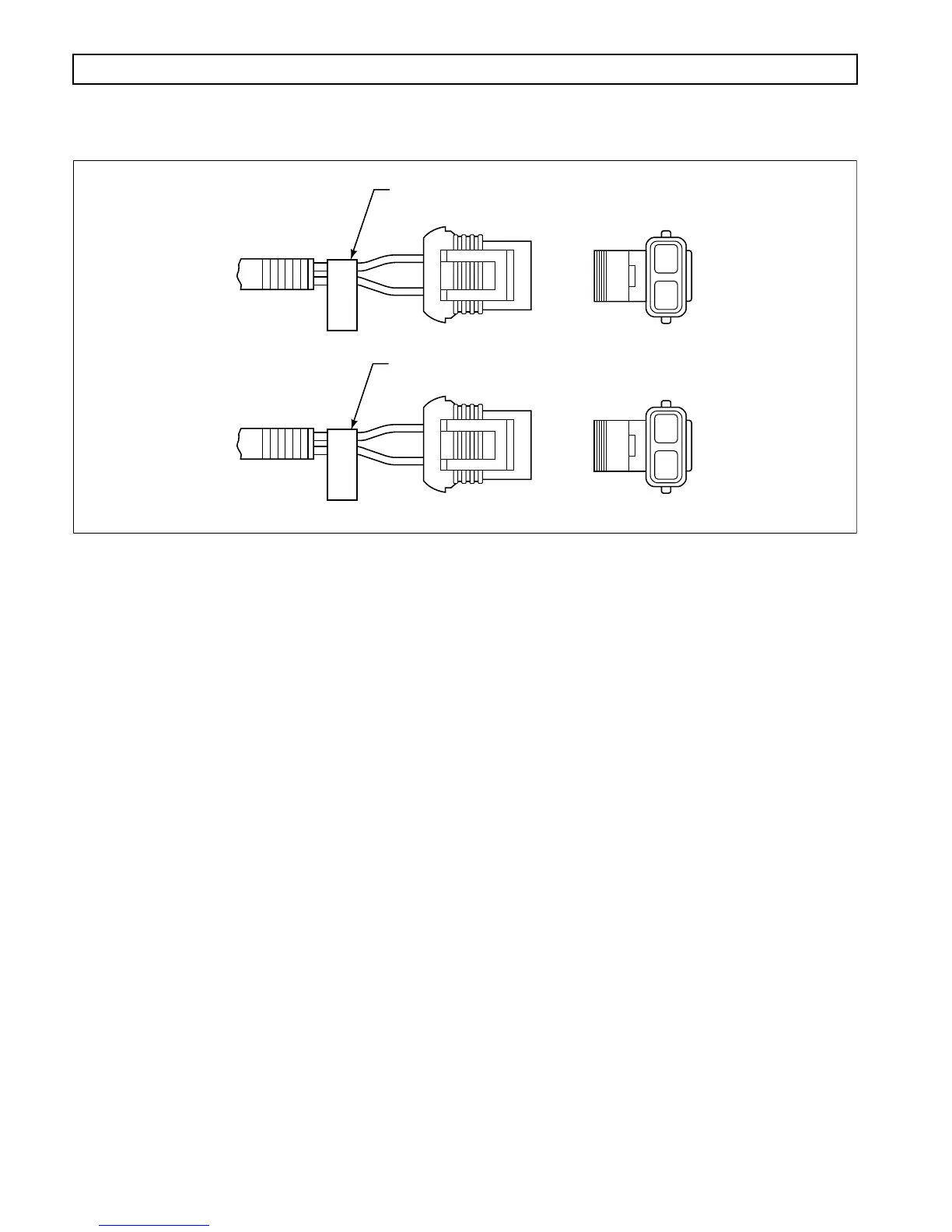

Figure D–33. Resistance Module Type 9 — Two Pressure Switch
RESISTANCE MODULE TYPE 9
MEDIUM PRESSURE
Terminal No. Color
A White
B Orange
HIGH PRESSURE
Terminal No. Color
A White
B Violet
LABEL INDICATES
PRESSURE LEVEL
A
MED
B
LABEL INDICATES
PRESSURE LEVEL
A
HI
B
V00575
