Allison B 400 - Code 33 XX - Sump Oil Temperature Sensor

Copyright © 1998 General Motors Corp. 6–53
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL

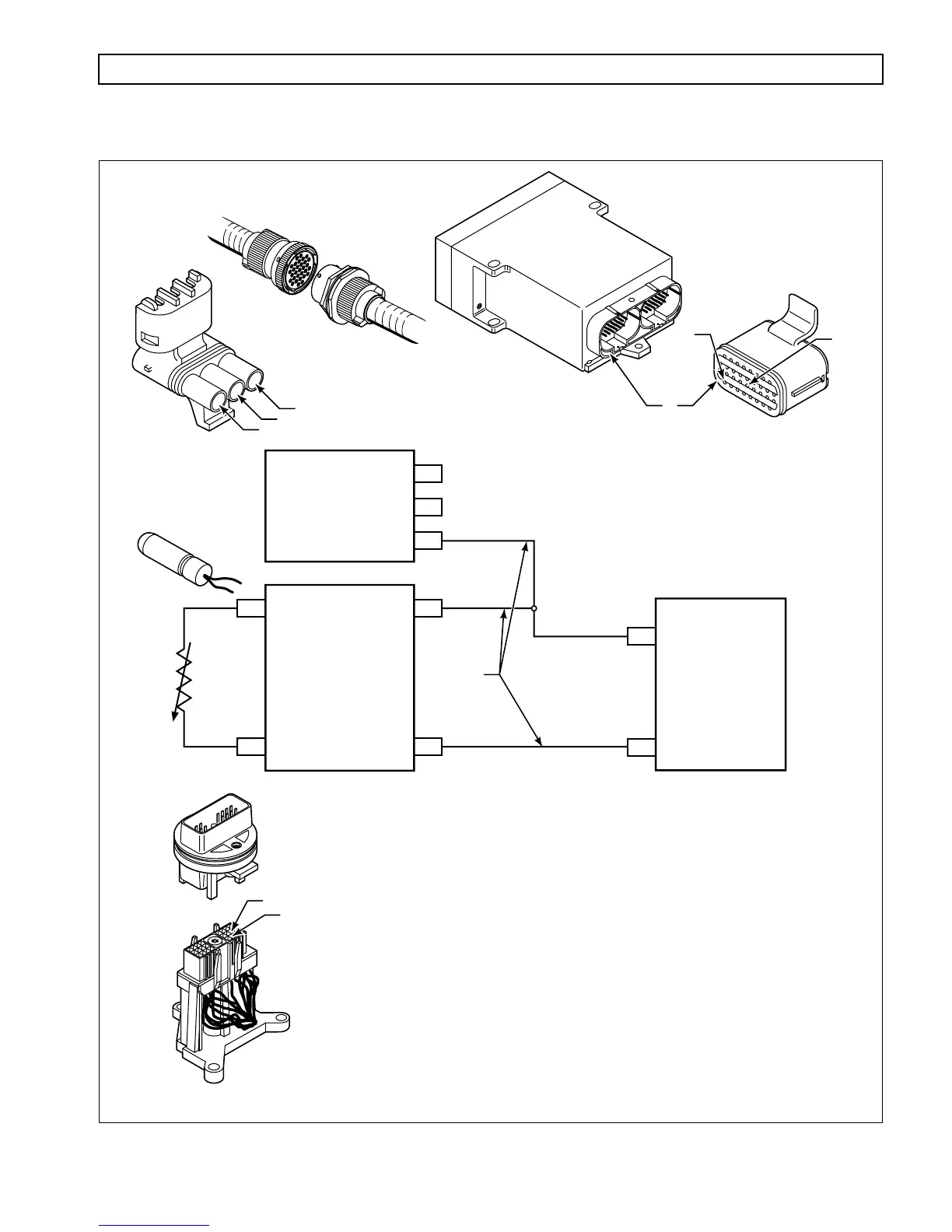

Figure 6–17. Code 33 Schematic Drawing (Units Produced Prior To 9/94)
F 3
ANALOG GROUND
(TPS LO)
SUMP TEMP
ECU
B
A
G 2
GREEN
B 1
B 13
VIOLET
C
135 A
135 B
F 3
SUMP
TEMP
SENSOR
TPS
147
FEEDTHROUGH
CONNECTOR
TRANSMISSION
G 2
A
B
C
G 2
F 3
B 1
B 13
ECU
V01601
B
(BLACK)
SEE NOTE
NOTE: These wires may pass through a bulkhead connector.
CODE 33 XX — SUMP OIL TEMPERATURE SENSOR
