WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

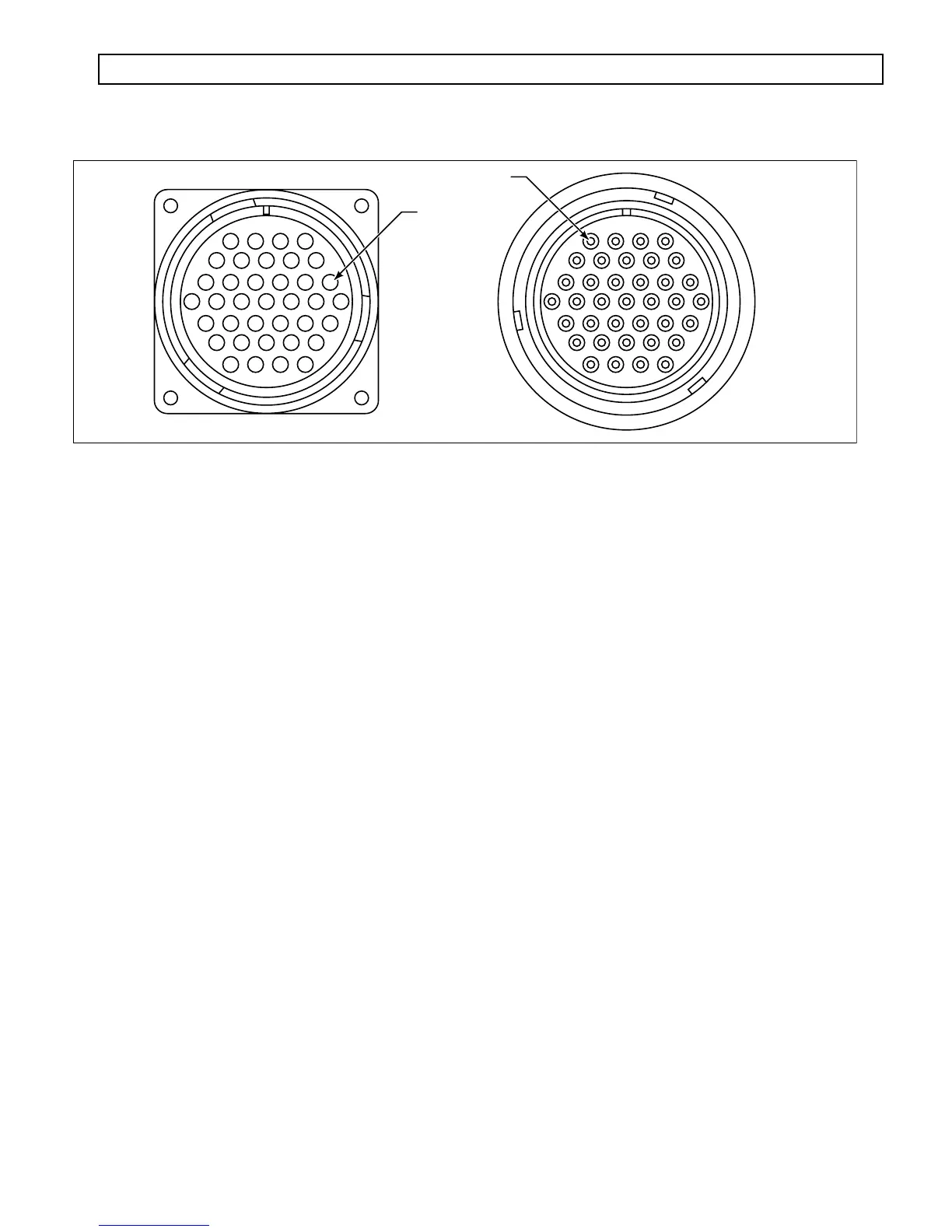

Figure D–5. Cannon 37-Way FMTV Bulkhead Connector
CANNON 37-WAY FMTV BULKHEAD CONNECTOR
Termination Point(s)
Terminal No. Color Wire No. Description Transmission Side Bulkhead Side
Before MY ’95 MY ’95
A Blue 101 NSLO H–2 f ECU, A1
B Orange 102 SG01 A–2 A ECU, A2
C Green 103 CSOL C–1 B ECU, A3
D White 104 GSOL F–1 C ECU, A4
E White 106 LOPR G–3 D ECU, A6
F Green 107 FSHI D–3 E ECU, A7
H White 110 FSLO D–2 F ECU, A10
J Green 111 JSOL H–1 e ECU, A11
K Yellow 116 NSHI H–3 g ECU, A16
L Orange 201 SPARE ECU
M White 120 ASOL A–1 G ECU, A20
N Violet 121 SG02 B–2 H ECU, A21
P Violet 122 SG04 ECU, A22
R Red 124 TPHI ECU, A24
S White 127 HSOL ECU, A27
T Orange 128 BSOL B–1 J ECU, A28
U Violet 129 ESOL E–1 K ECU, A29
V Yellow 130 SG03 C–2 L ECU, A30
W Blue 131 DSOL D–1 M ECU, A31
X Yellow 202 SPARE ECU
Z Green 135A TPLO ECU, B1
a Green 135B TPLO G–2 N Splice, 135A
b
c
d Violet 147 OILT F–3 P ECU, B13
e Green 203 SPARE ECU
f Blue 156 TPOT ECU, B22
g Green 148 NOLO ECU, B14
h Yellow 161A SNGD F–2 W ECU, B27
j White 162 C3PS C–3 X ECU, B28
k Blue 165 LOIL B–3 Y ECU, B31
m Violet 141 NEHI ECU, B7
n Yellow 139 NOHI ECU, B5
p Orange 149 NTHI E–3 V ECU, B15
r Blue 140 NTLO E–2 U ECU, B6
s Orange 150 NELO ECU, B16
n
p
rs
ABCD
g
h
j
km
EFGHJ
abcd
STUVW
ef
KLMN PR
XZ
nprs
AB CD
ghjkm
EFGHJ
abcd
STUVW
ef
KLMN PR
XZ
PLUG RECEPTACLE V01672
SOCKET
TERMINALS
PIN
TERMINALS
To Next Page
