Copyright © 1998 General Motors Corp. D–21
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

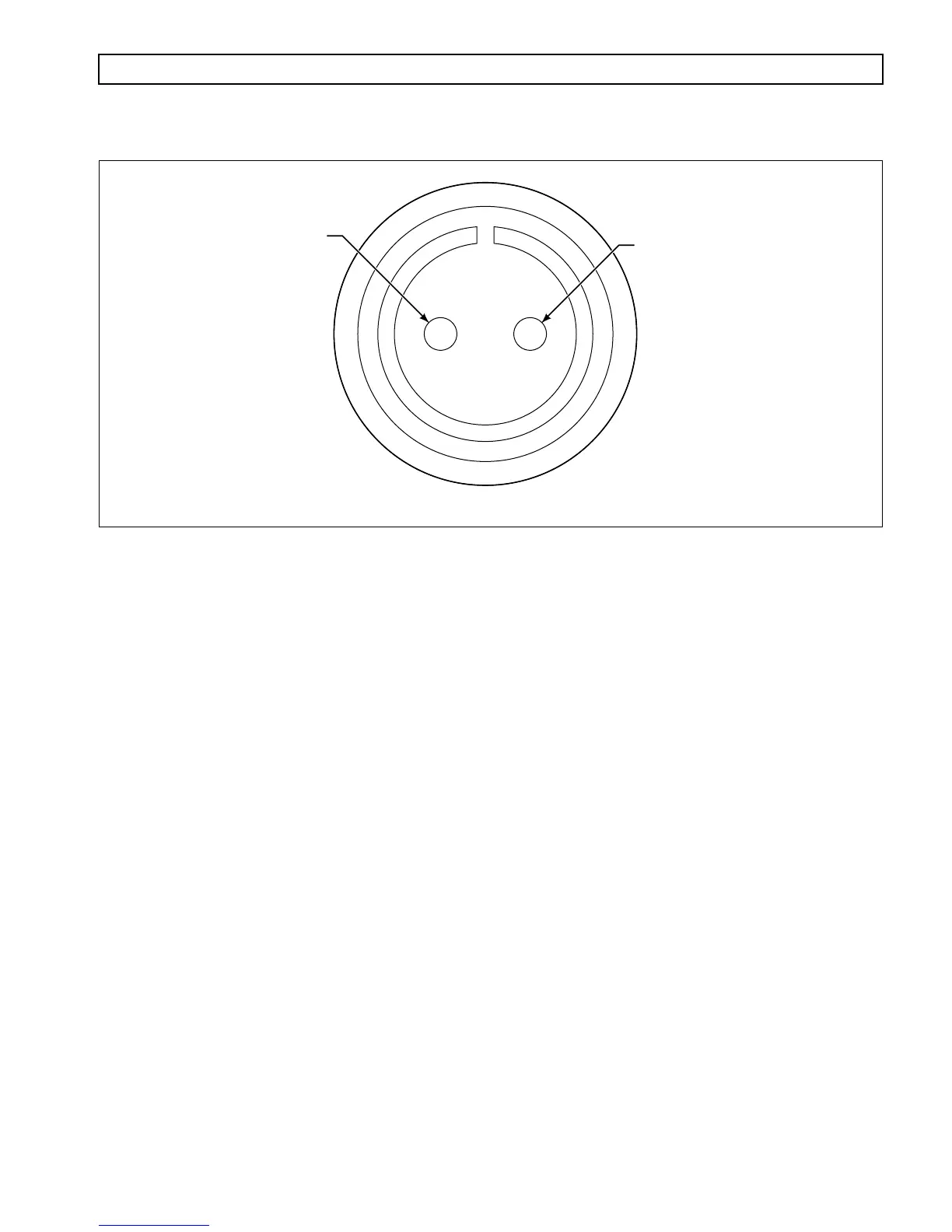

Figure D–17. Retarder Connector (HD/B 500)
RETARDER CONNECTOR — HD/B 500
Terminal No. Color Wire No. Description Termination Point(s)
A Yellow 134 K (Rtdr Enable) Solenoid Hi ECU, A34
B Blue 109 K (Rtdr Enable) Solenoid Lo ECU, A9
V01099
B
A
