WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–18 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

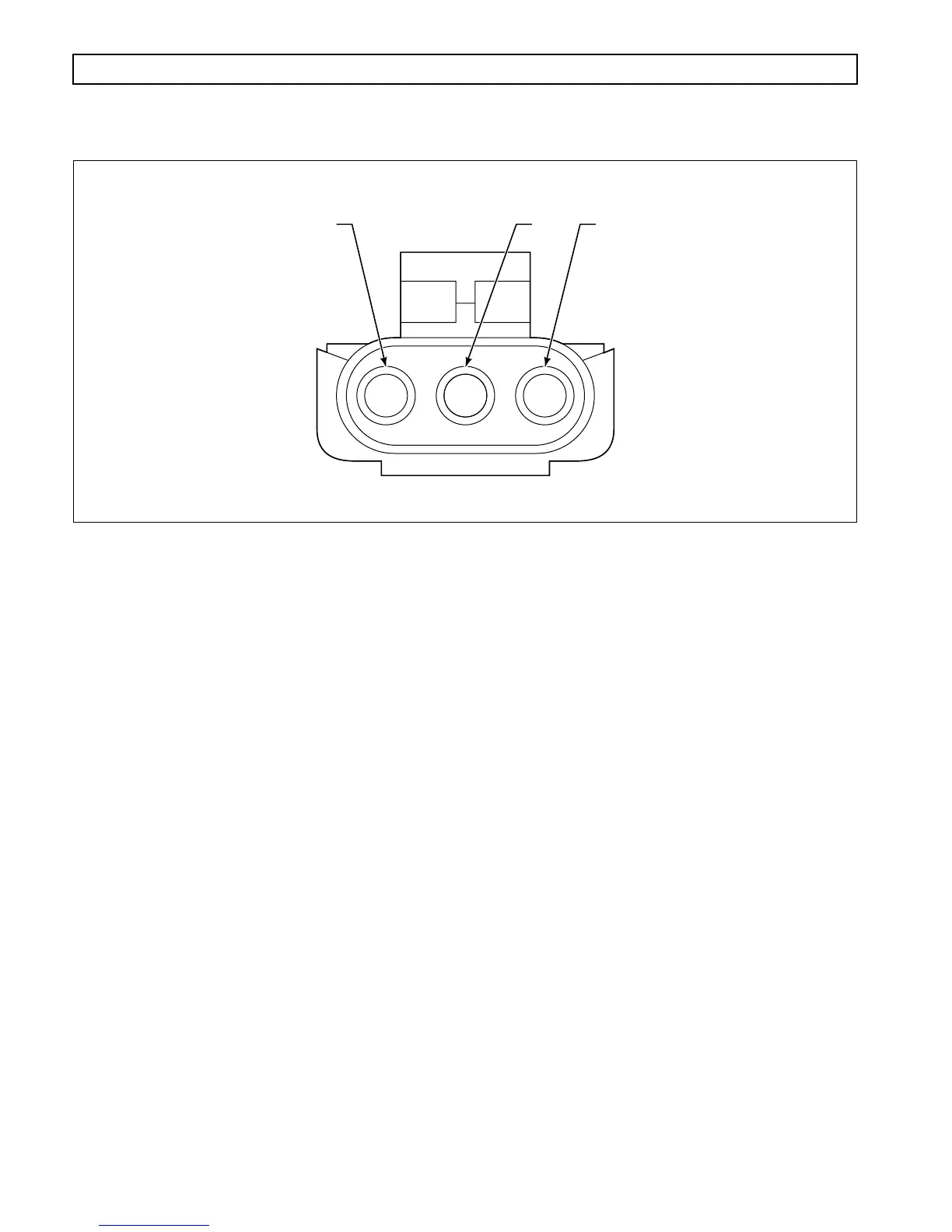

Figure D–14. TPS Connector
THROTTLE POSITION SENSOR CONNECTOR
Terminal No. Color Wire No. Description Termination Point(s)
A Green 135A Analog Ground ECU, B1; Trans Conn, G2;
RMR Conn, A
B Blue 156 TPS Signal ECU, B22
C Red 124 TPS Hi ECU, A24
CBA
V00645
