WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL

APPENDIX H — HYDRAULIC SCHEMATICS

HD/B 500 RETARDER HYDRAULIC SCHEMATIC

RETARDER OFF

CONTROL MAIN

MAIN PRESSURE

CONVERTER OUT

ORIFICE LUBE

EXHAUST

LUBE

FROM COOLER

TO COOLER

VEHICLE AIR

V01132.01

Air Protection

Valve

(OEM supplied)

Accumulator

ON/OFF

Solenoid

(N)

(Air)

Retarder

Temp Sensor

Flow

Valve

Cooler

(H)

Retarder

Control

Valve

Exhaust

Check Valve

Retarder

Charge

Pressure

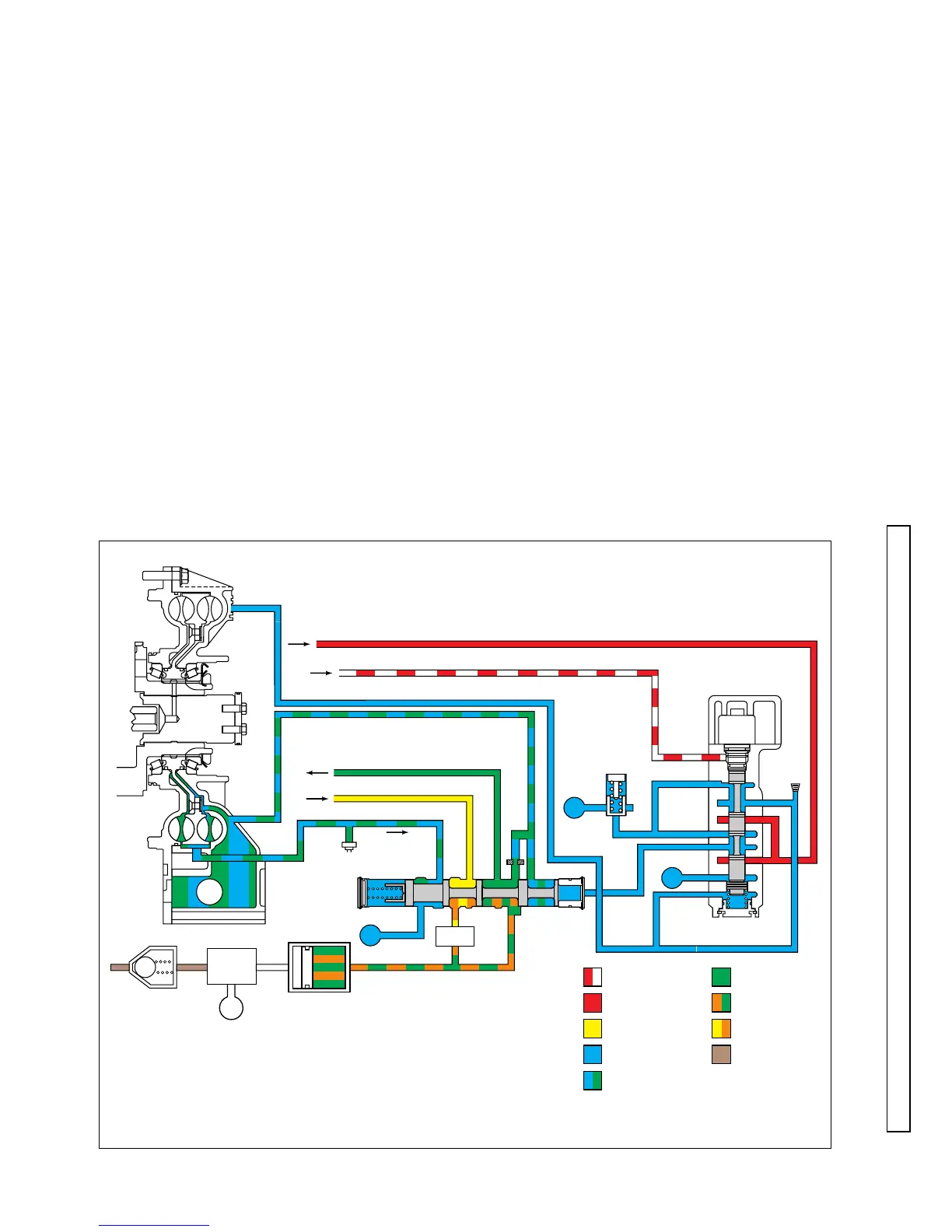

Figure H–23. HD/B 500 Retarder Hydraulic Schematic — Retarder On
