Allison B 400 - Packard Metri-Pack 150 Series Connectors

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–6 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS

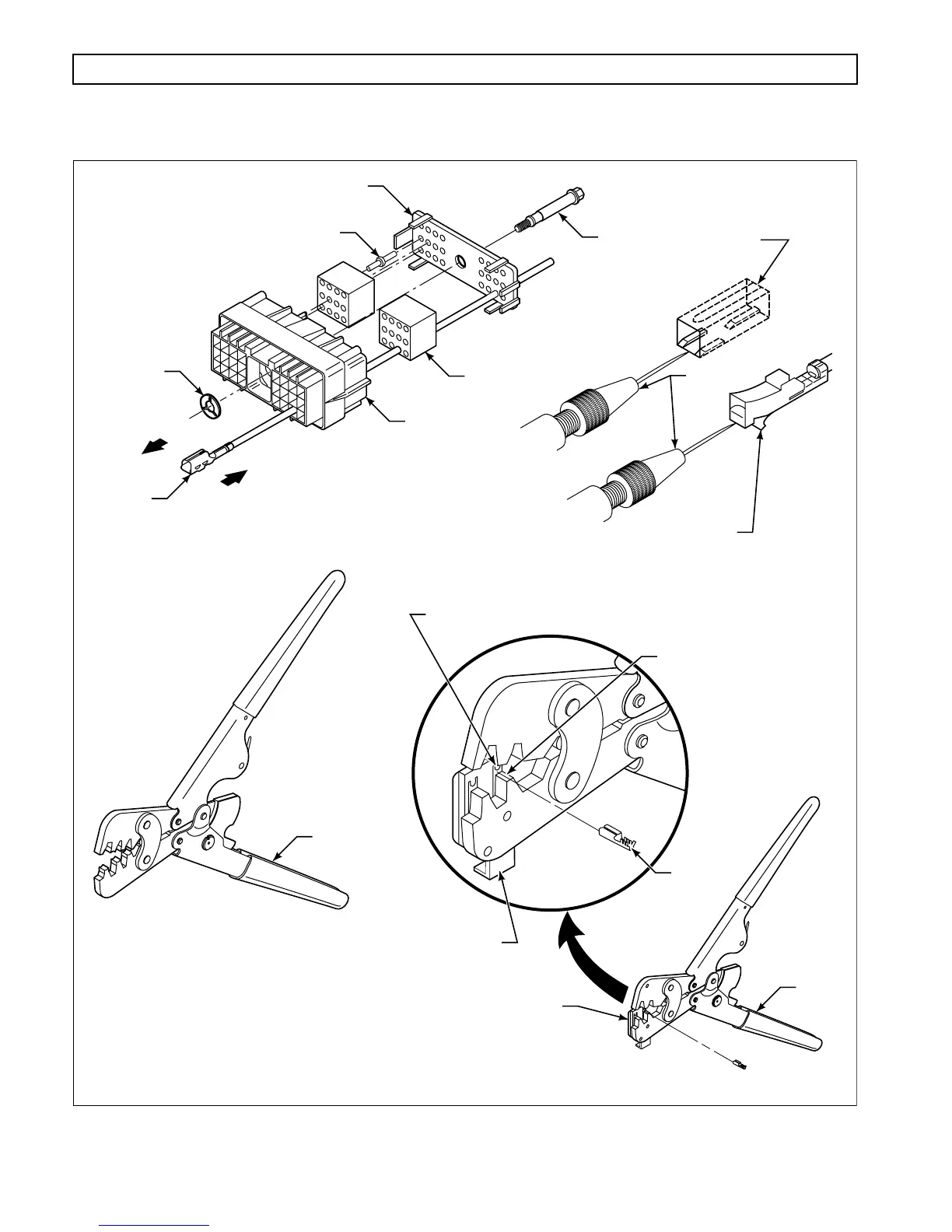

Figure E–2. Packard Metri-Pack 150 Series Connectors — Pull-to-Seat (Internal/External Harness to Transmission
Feedthrough; Speed Sensor; Accumulator Solenoid; 30-Way and 18-Way VIM)
A
C
E
B
D
2
2
-
2
0
1
8
-
1
6
W
IR
E
S
ID
E
2
2
-
2
0
1
8
-
1
6
W
I
R
E
S
I
D
E
SEALING PLUG
VIEW A
STRAIN RELIEF
SPECIAL
BOLT
12 WAY
SEAL PLUG
HARNESS
CONNECTOR
REMOVE IN
THIS DIRECTION
WIRE AND
TERMINAL
SEAT IN
THIS DIRECTION
BUTT WIRE AGAINST TERMINAL HOLDER
TERMINAL
USE WIRE GAUGE 18-16 SLOT
PUSH LOCK TO INSERT
TERMINAL END
TERMINAL HOLDER
J 38125-7
RETAINER
SEAL PLUG
BUTTS UP HERE
INSERTION OF REMOVAL TOOL J 35689-A FORCES
LOCK TANG TOWARD BODY OF TERMINAL
J 35123
VIEW B
VIEW C
V01685
J 35689-A
