Allison B 400 - MD 3070 Hydraulic Schematic - 1 St, Power on

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX H — HYDRAULIC SCHEMATICS
H–22 Copyright © 1998 General Motors Corp.
;
;
;;
;;
;;
;;
;;;;
;;;;
;;;
;;;
;;;
C1 LATCHC2 LATCH
C6 INTERLOCK
VALVE
Main
Control Main
Exhaust Backfill
Exhaust

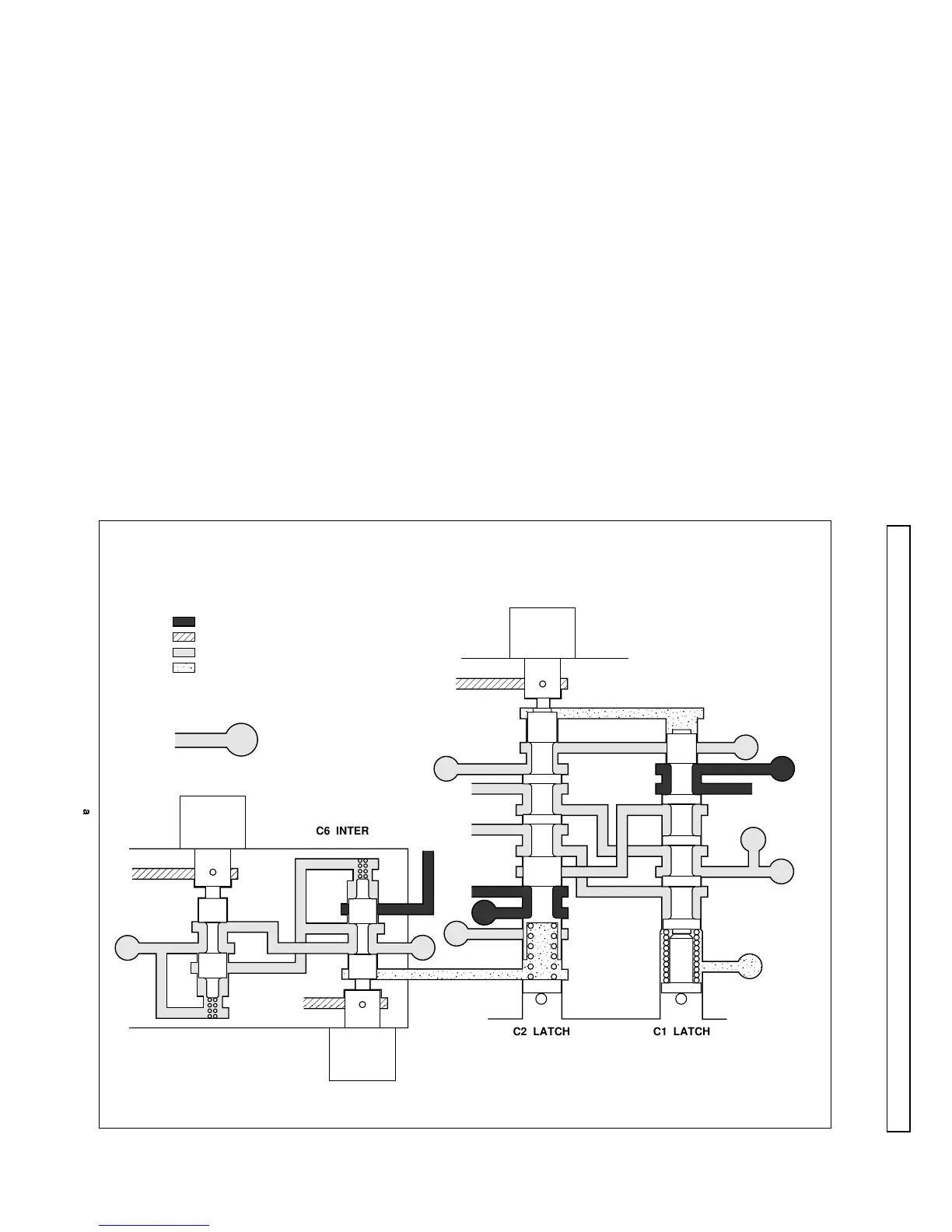

MD 3070 HYDRAULIC SCHEMATIC (PARTIAL)
1ST POWER ON
MAIN
EBF
EBF
EBF
P.S
C1
C3
C5
C2
B FEED
C FEED
E FEED
D FEED
A FEED
V01823
C4
EX
C6 (J)
N/C
PWM
LO
SOLENOID
(N)
FORWARD
SOLENOID
(G)
C6
Figure H–13. MD 3070 Hydraulic Schematic — 1st, Power On
