WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

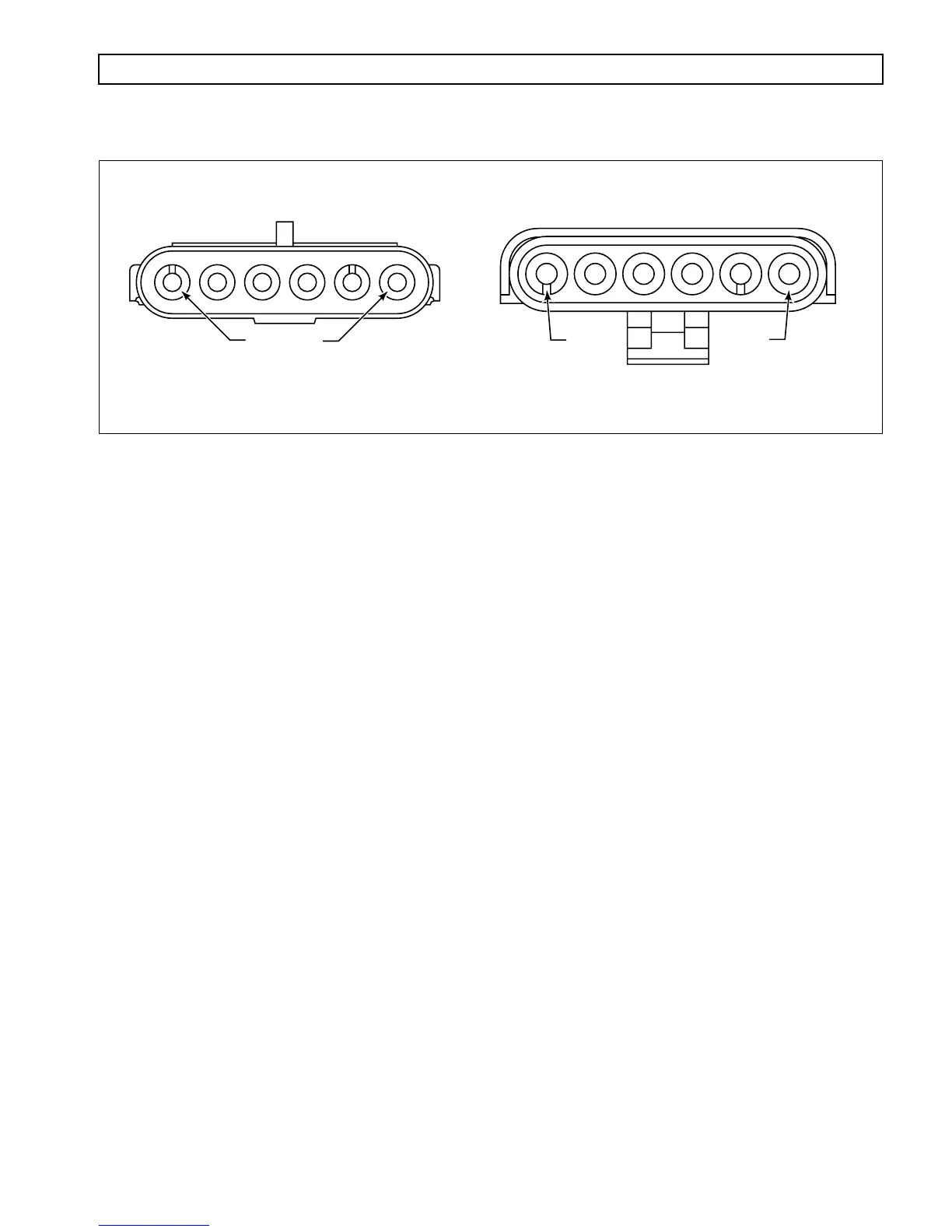

Figure D–24. Packard Weather Pack VIM Connectors
)
6-WAY SHROUD P/N 12010975 (GILLIG HARNESS P/N 29511644)
Terminal No. Color Wire No. Description Termination Point(s)
A Red 136A 12/24V ECU, B2
B Red 136C 12/24V ECU, B11
C Yellow 146A IGSN ECU, B12
D
E Black 143C BTGD ECU, B18
F Black 143A BTGD ECU, B9
6-WAY TOWER P/N 12015799 (GILLIG HARNESS P/N 29511644)
Terminal No. Color Wire No. Description Termination Point(s)
A Orange 158 DIMR ECU, B24
B
C White 113 RVWN ECU, A13
D Violet 157 VSPD ECU, B23
E Violet 123 NTST ECU, A23
F Green 115 DNS ECU, A15
12015799
V01681
12010975
F
A
F
A
To Next Page
