WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–14 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS

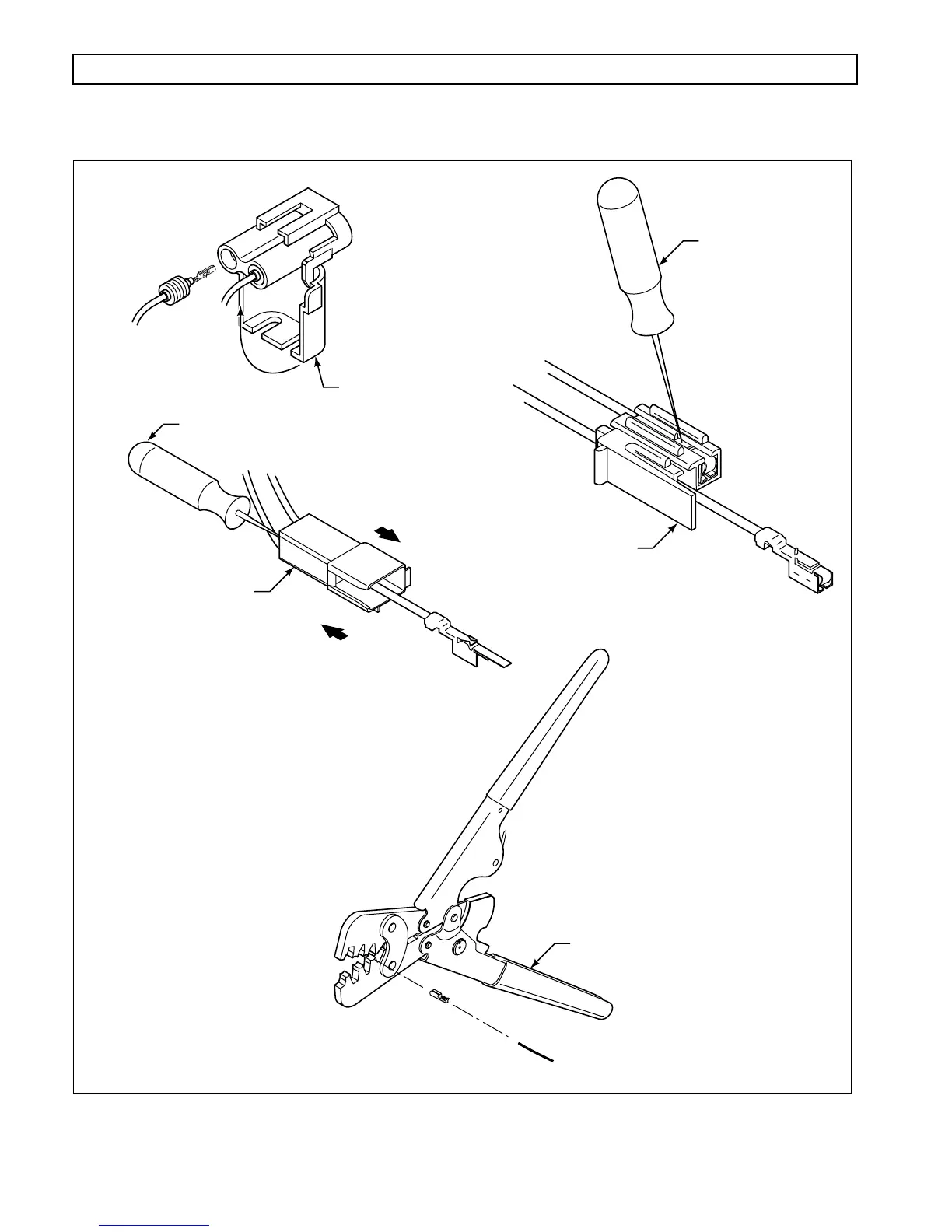

Figure E–4. Packard Metri-Pack 280 Series Connectors — Pull-to-Seat (8-Way Freightliner; 5-Way Navistar Cab
Harness; 2-Way Navistar and Ford Cab Harness; Internal Harness Solenoid and C3 Pressure Switch)
A
C
E
B
D
VIEW B
VIEW A
J 38125-7
J 38125-13
CONNECTOR TO C3
PRESSURE SWITCH (HARNESS)
J 38125-13
SECONDARY LOCK IN
THE UNLOCKED, DOWN
POSITION
V01687
SOLENOID/C3 PRESSURE
SWITCH CONNECTOR
REMOVE IN
THIS DIRECTION
INSTALL IN
THIS DIRECTION
