Allison B 400 - Resistance Module Type 8 - Three Pressure Switch

Copyright © 1998 General Motors Corp. D–41
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

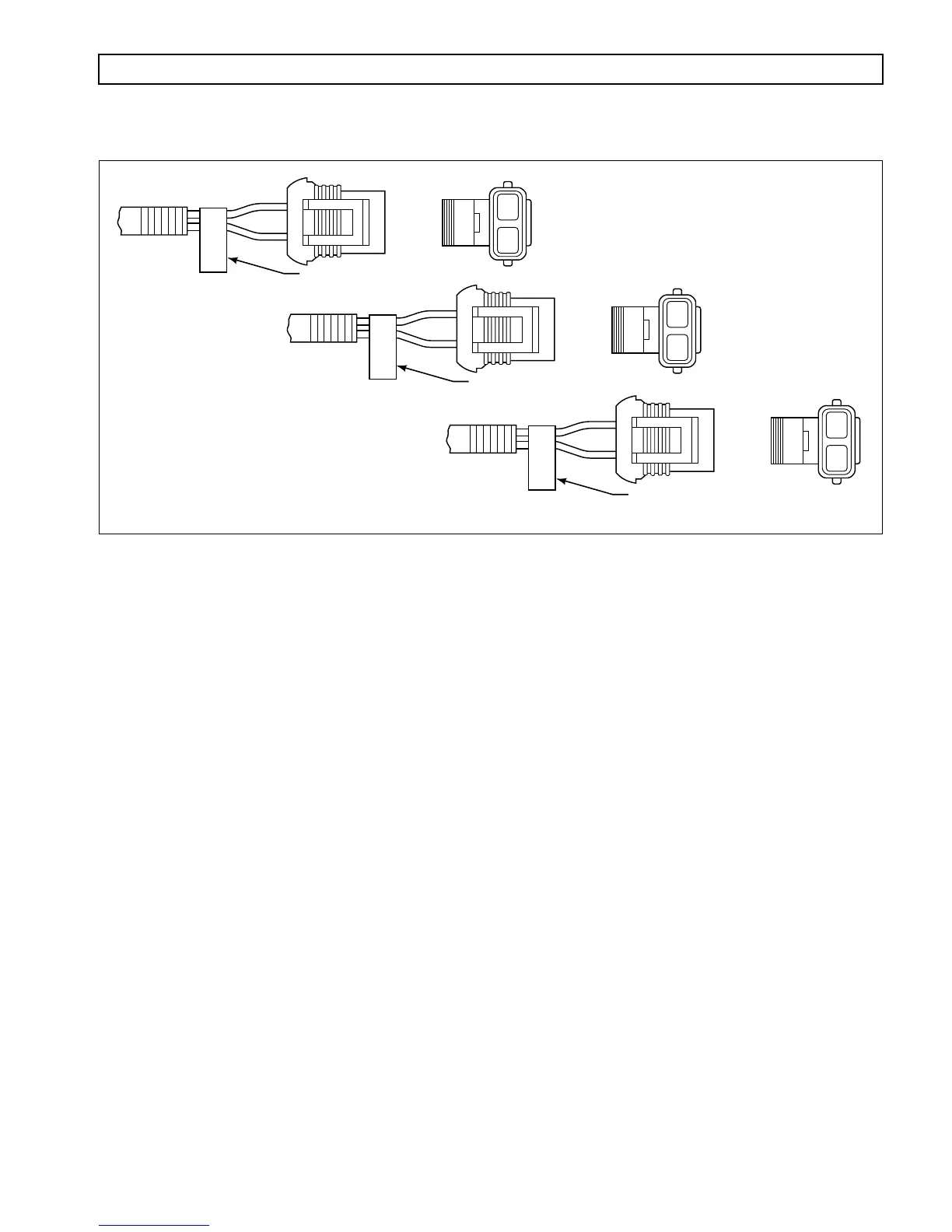

Figure D–32. Resistance Module Type 8 — Three Pressure Switch
RESISTANCE MODULE TYPE 8
LOW PRESSURE
Terminal No. Color
A White
B Blue
MEDIUM PRESSURE
Terminal No. Color
A White
B Orange
HIGH PRESSURE
Terminal No. Color
A White
B Violet
LABEL INDICATES
PRESSURE LEVEL
LABEL INDICATES
PRESSURE LEVEL
LABEL INDICATES
PRESSURE LEVEL
V00574.01
A
HI
B
A
MED
B
A
LO
B
