Allison B 400 - Packard Metri-Pack VIM Connectors

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–30 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

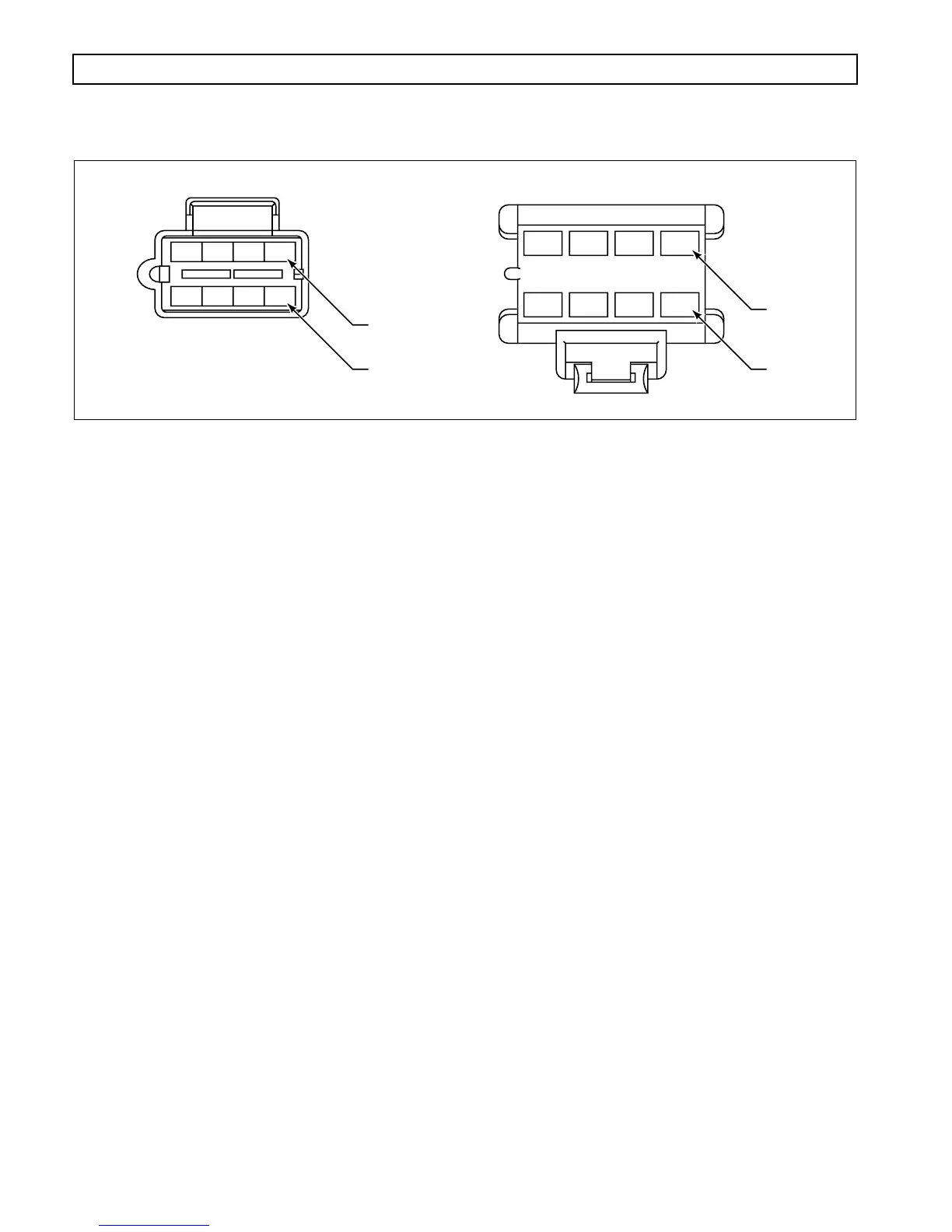

Figure D–23. Packard Metri-Pack VIM Connectors
VIM A: 8-WAY MALE P/N 12066195 (FREIGHTLINER HARNESS P/N 29517161)
Terminal No. Color Wire No. Description Termination Point(s)
A Green 115 DNS ECU, A15
B Orange 132 SFO2 ECU, A32
C White 125 SFO4 ECU, A25
D Violet 112 SFO3 ECU, A12
E White 113 RVWN ECU, A13
F White 114 SFO1 ECU, A14
G
H
VIM B: 8-WAY FEMALE P/N 12064998 (FREIGHTLINER HARNESS P/N 29517161)
Terminal No. Color Wire No. Description Termination Point(s)
A Black 143A BTGD ECU, B9
B Black 143C BTGD ECU, B18
C Violet 157 VSPD ECU, B23
D Violet 123 NTST ECU, A23
E Red 136A 12/24V ECU, B2
F Red 136C 12/24V ECU, B11
G Yellow 146A IGSN ECU, B12
H Orange 158 DIMR ECU, B24
A
H
12066195
H
A
V01679
12064998
