Allison B 400 - Deutsch DT Series Connectors (12-Way Navistar VIW)

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–42 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS

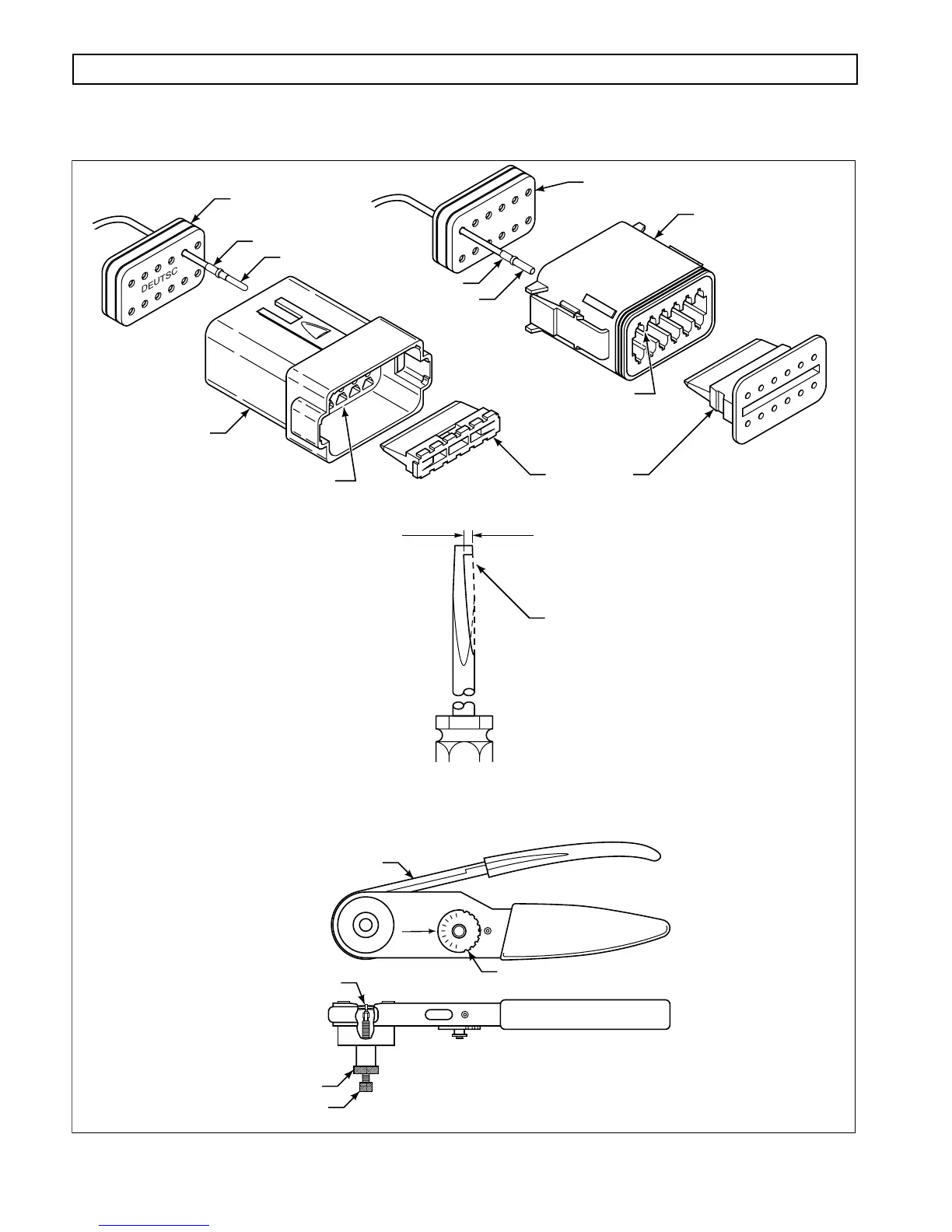

Figure E–12. Deutsch DT Series Connectors (12-Way Navistar VIW)
R
A
I
S
E
T
O
R
O
T
A
T
E
SEL
NO.
;;
;;
;;
D
E
U
TS
C
H
D
E
U
TS
C
H
DEPTH ADJUSTMENT SCREW
J 34182 CRIMPER
LOCKING RING
TERMINAL
WIRE SIZE INDICATOR
VIEW C
VIEW A
V01692
CRIMP
PIN TERMINAL
PLUG
WEDGE LOCKS
SEAL PLUG
SEAL PLUG
CRIMP
SOCKET TERMINAL
GRIND NOTCH
SMALL SCREWDRIVER REWORK
VIEW B
RECEPTACLE
TERMINAL
LOCKING LEVER
(INSIDE CONNECTOR)
TERMINAL
LOCKING LEVER
(INSIDE CONNECTOR)
