Allison B 400 - Deutsch Transmission Connector, (Male;Female)

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–10 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

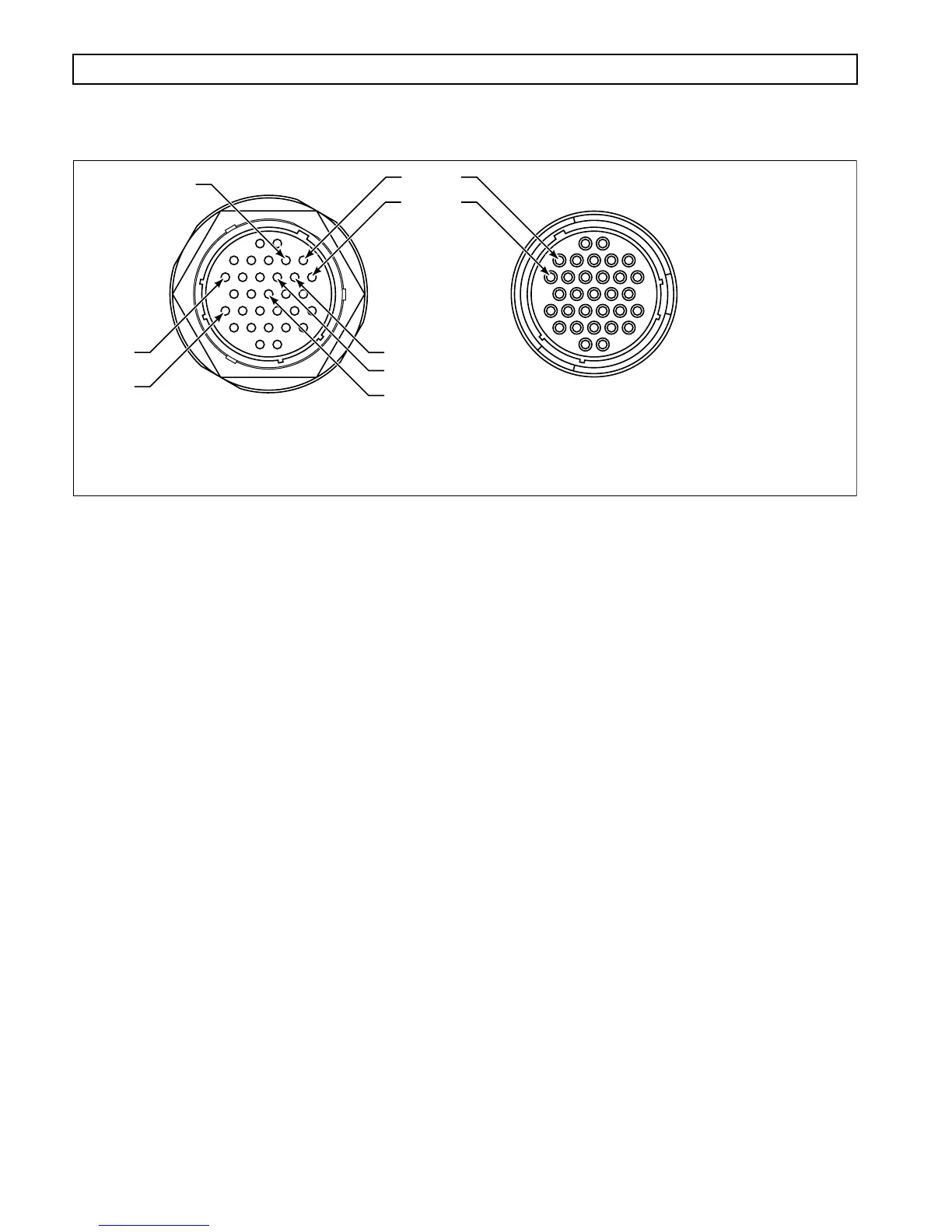

Figure D–6. Deutsch Transmission Connector, ECD (Male/Female)
DEUTSCH TRANSMISSION CONNECTOR (MALE/FEMALE)
Terminal No. Color Wire No. Description Termination Point(s)
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
All But
MY ’95 3070
MY ’95
3070
A Orange 102 SGD1 ECU, A2
B Green 103 CSOL ECU, A3
C White 104 GSOL ECU, A4
D White 106 OLS Power ECU, A6
E Green 107 FSHI ECU, A7
f Blue 101 NSLO ECU, A1
F White 110 FSOL ECU, A10
G White 120 ASOL ECU, A20
H Violet 121 SGD2 ECU, B21
J Orange 128 BSOL ECU, A28
K Violet 129 ESOL ECU, A29
L Yellow 130 SGD3 ECU, A30
M Blue 131 DSOL ECU, A31
e Green 111 JSOL ECU, A11
N Green 135B TPLO ECU, B1
g Yellow 116 NSHI ECU, A16
U Blue 140 NTLO (MD Only) ECU, B2
P Violet 147 OILT ECU, B13
V Orange 149 NTHI (MD Only) ECU, B15
W Yellow 161A SNGD ECU, B27
X White 162 C3PS ECU, B28
Y Blue 165 LOIL ECU, B3
Spare Orange 201
Spare Yellow 202
CAVITY A
CAVITY B
P
J
H
N
a
g
PLUG
RECEPTACLE
V01111.01
NOTE: 1. Letters I and O are not used.
2. Plug cavities are lettered counterclockwise.
Receptacle cavities are lettered clockwise.
