Allison B 400 - Secondary Mode Indicator

WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
P–38 Copyright © 1998 General Motors Corp.
APPENDIX P — INPUT/OUTPUT FUNCTIONS
WARNING!
These schematics show the intended use of the specified controls features which
have been validated in the configuration shown. Any miswiring or use of these
features which differs from that shown could result in damage to equipment or
property, personal injury, or loss of life. ALLISON TRANSMISSION IS NOT
LIABLE FOR THE CONSEQUENCES ASSOCIATED WITH MISWIRING
OR UNINTENDED USE OF THESE FEATURES.
SECONDARY MODE INDICATOR
USES: To indicate that Secondary Mode is active.
VARIABLES TO SPECIFY: None
VOCATIONS: Various

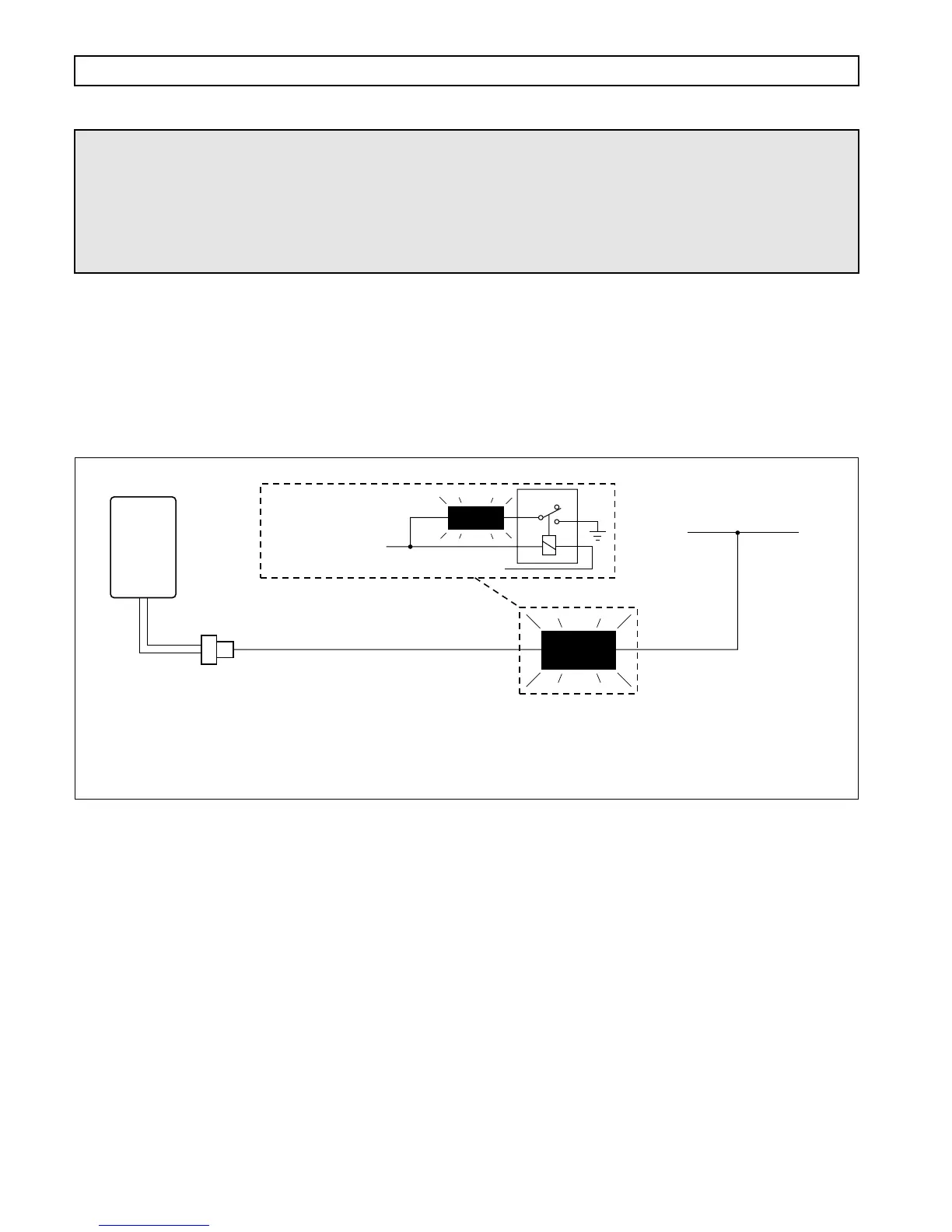

Figure P–37. Secondary Mode Indicator
SWITCHED
POWER
V05041
WIRE 105
SECONDARY MODE INDICATOR
ECONOMY
NOTE: “Economy” legend is shown for illustrative purposes only.
Actual legend in each vehicle should describe the special characteristics
of the secondary mode shift calibration.
WIRE 105
ECONOMY
SWITCHED
POWER
If current in lamp circuit exceeds
0.5 amp, ground lamp through
a relay.
NC
COM
NO
1
ECU
VIW
CONNECTOR
