WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–36 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

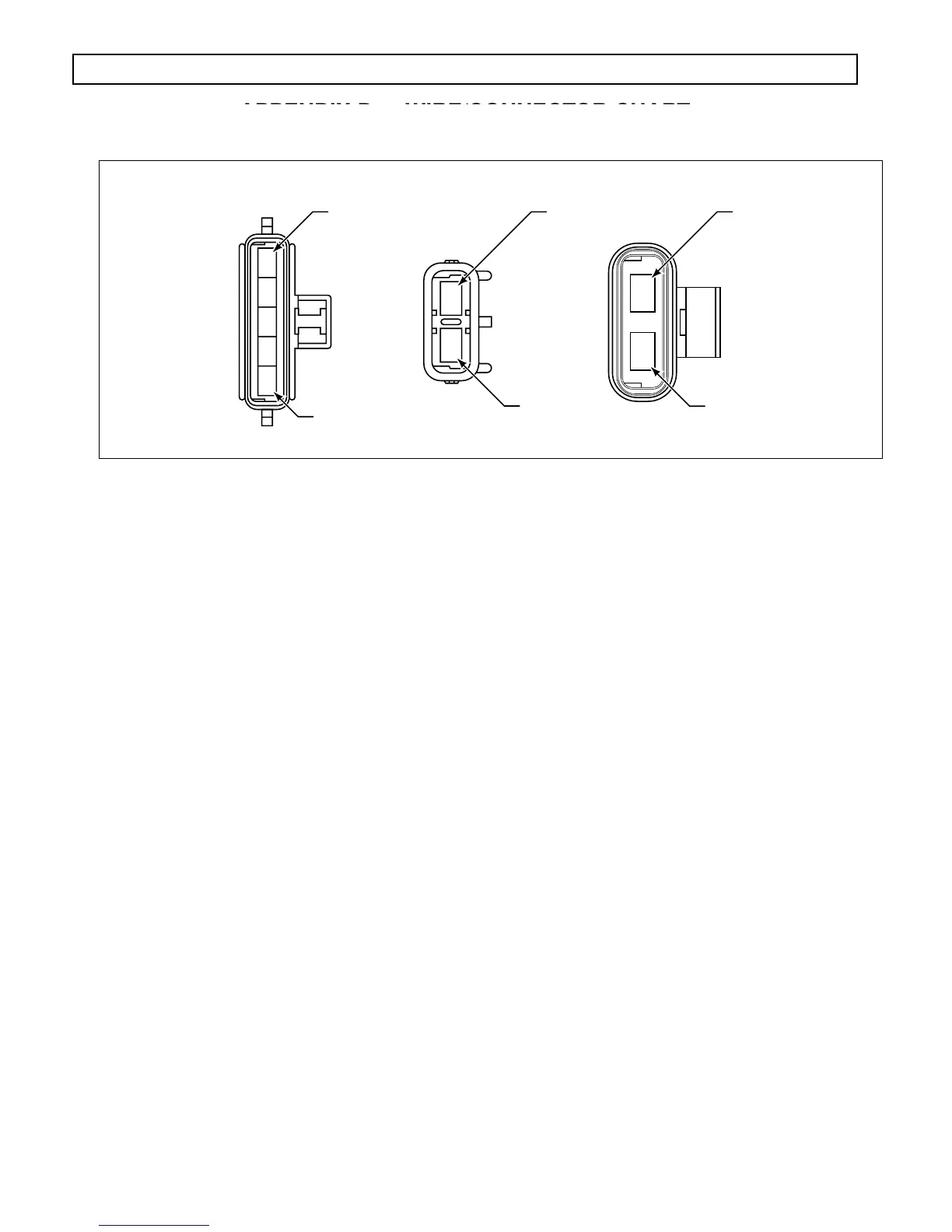

Figure D–27. Packard Metri-Pack Cab And Chassis Harness Connectors
REVERSE WARN / NEUTRAL START P/N 12084891 (NAVISTAR HARNESS P/N 29516972)
Terminal No. Color Wire No. Description Termination Point(s)
A Yellow 313CM RWCOM VIM B, B1
B Blue 313NO RWNO VIM B, A1
C
D Blue 323NO NSNO VIM B, F1
E Yellow 323CM NSCOM VIM B, G1
POWER / GROUND P/N 15300002 (NAVISTAR HARNESS P/N 29516972)
Terminal No. Color Wire No. Description Termination Point(s)
A Red 336B 12/24 UNF Splice to 336A, C
B Black 343B BTGND Splice to 343A, B
FUSE P/N 12033769 (FORD HARNESS P/N 29515708)
Terminal No. Color Wire No. Description Termination Point(s)
A Red 136E 12/24V Splice to 136B
B Red 136F 12/24V Battery Ring Terminal
FUSE P/N 12033769 (FORD HARNESS P/N 29515704)
Terminal No. Color Wire No. Description Termination Point(s)
A Red 136D 12/24V Splice to 136B
B Red 136E 12/24V Battery Ring Terminal
A
B
A
V01683
E
12084891 15300002 12033769
A B
