APPENDIX B: ELECTRICAL AND DATA CONNECTIONS
HF-2500A HIGH FREQUENCY WELD CONTROL
B-10 990-371
Two-Level Foot Switch Connector
When you press the foot switch to the first level, the Power Supply energizes the air actuated weld head.
This causes the upper electrode to descend and apply force to the weld pieces. If you release the foot
switch before pressing it to the second level, the Power Supply will automatically return the upper
electrode to its UP position so that you may re-position the weld pieces.
If you do not release the foot switch at the first level and proceed to the second level, the force-firing
switch in the weld head will close. Weld current will flow, and the Power Supply will automatically return
the upper electrode to its UP position.
Using the supplied Configuration plug on Pins 11 – 20 allows the use of the AMADA WELD TECH 2-
level footswitch directly. If a PLC or other means of trigger is used, refer to the I/O Signal Interface
General Description on page B-3.

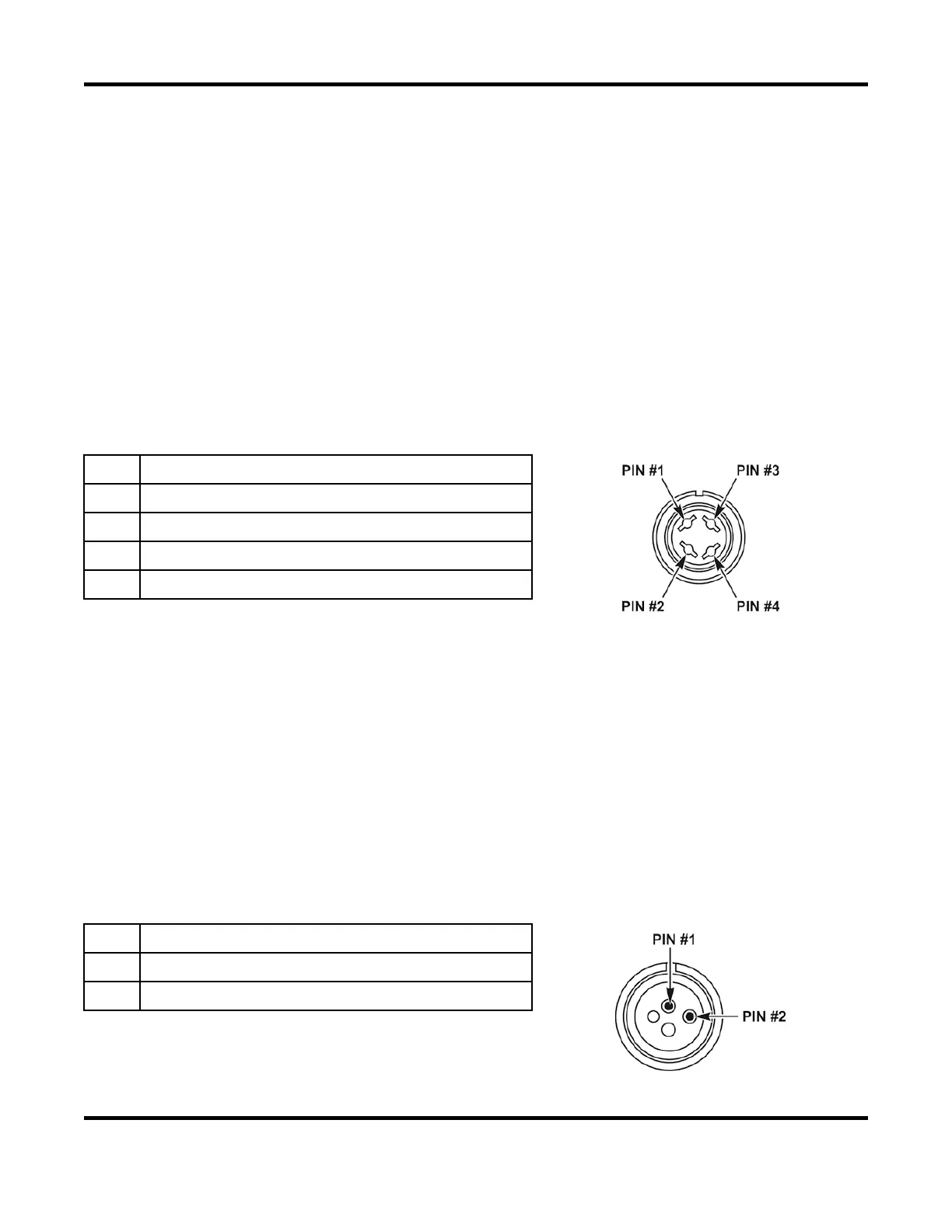

Foot Switch Connector
Pin Description
1
Chassis Ground
2
Foot_1 ( Connect to pin 4 to activate )
3
Foot_2 ( Connect to pin 4 to activate )
4
24COM
Standard Air Valve Driver Output Connector
The air valve driver output (24 VAC) is initiated when Foot Switch Level 1 is initiated.
Using the supplied Configuration plug on Pins 11 – 20 allows the use of the AMADA WELD TECH 2-
level footswitch directly. If a PLC or other means of trigger is used, refer to the I/O Signal Interface
General Description on page B-3. The mating connector is a TE Connectivity # 206429-1 (Pt # 520-107),
using cable clamp TE Connectivity # 206358-5 (Pt # 245-084). The two male pins used are TE
Connectivity # 66361-2 for 14-18awg wire (Pt # 253-055).
Air Valve Driver 24 VAC Connector
Pin Description
1
24VAC (for solenoid)
2
HEAD_1 (Switched 24V common)
