CHAPTER 2: INSTALLATION AND SETUP
HF-2500A HIGH FREQUENCY WELD CONTROL
2-4 990-371

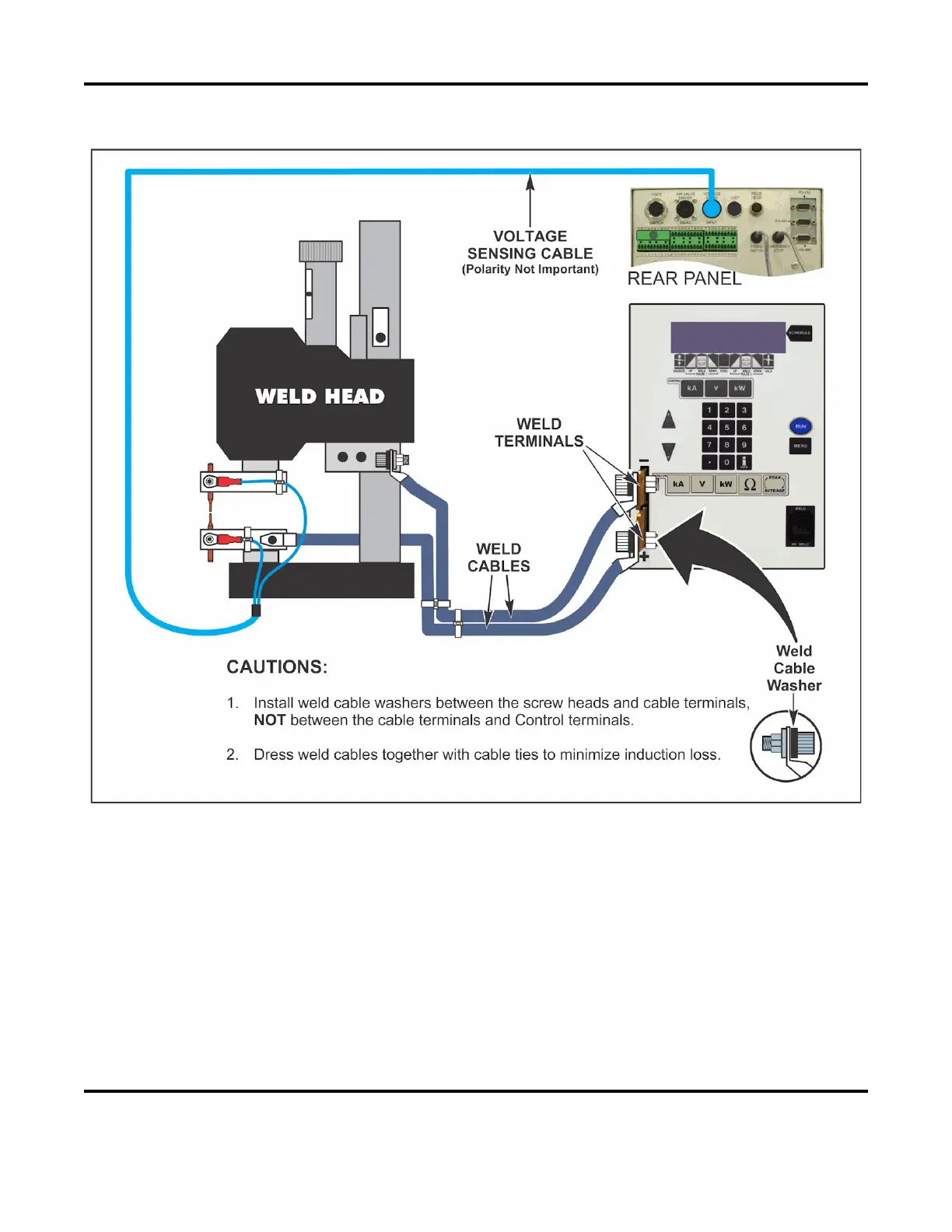

Weld Head Connections
1. Connect one end of a weld cable to the negative (-) welding transformer terminal on the Power
Supply.
2. Connect one end of the second weld cable to the positive (+) welding transformer terminal on
the Power Supply.
3. Connect the other end of the weld cables to the weld head.
4. Attach the voltage sensing cable connector to the VOLTAGE SENSE INPUT connector.
5. Install electrodes in the weld head electrode holders.
NOTE: If you need additional information about the weld heads, please refer to their user’s
manuals.
