CHAPTER 2: INSTALLATION AND SETUP
HF-2500A HIGH FREQUENCY WELD CONTROL
990-371 2-5
6. Connect the voltage sensing cable clips
that are packed in the shipping kit to the
voltage sensing cable leads. Use either
the 1/4ā or 1/8ā diameter clip, as
appropriate to the electrode diameter.

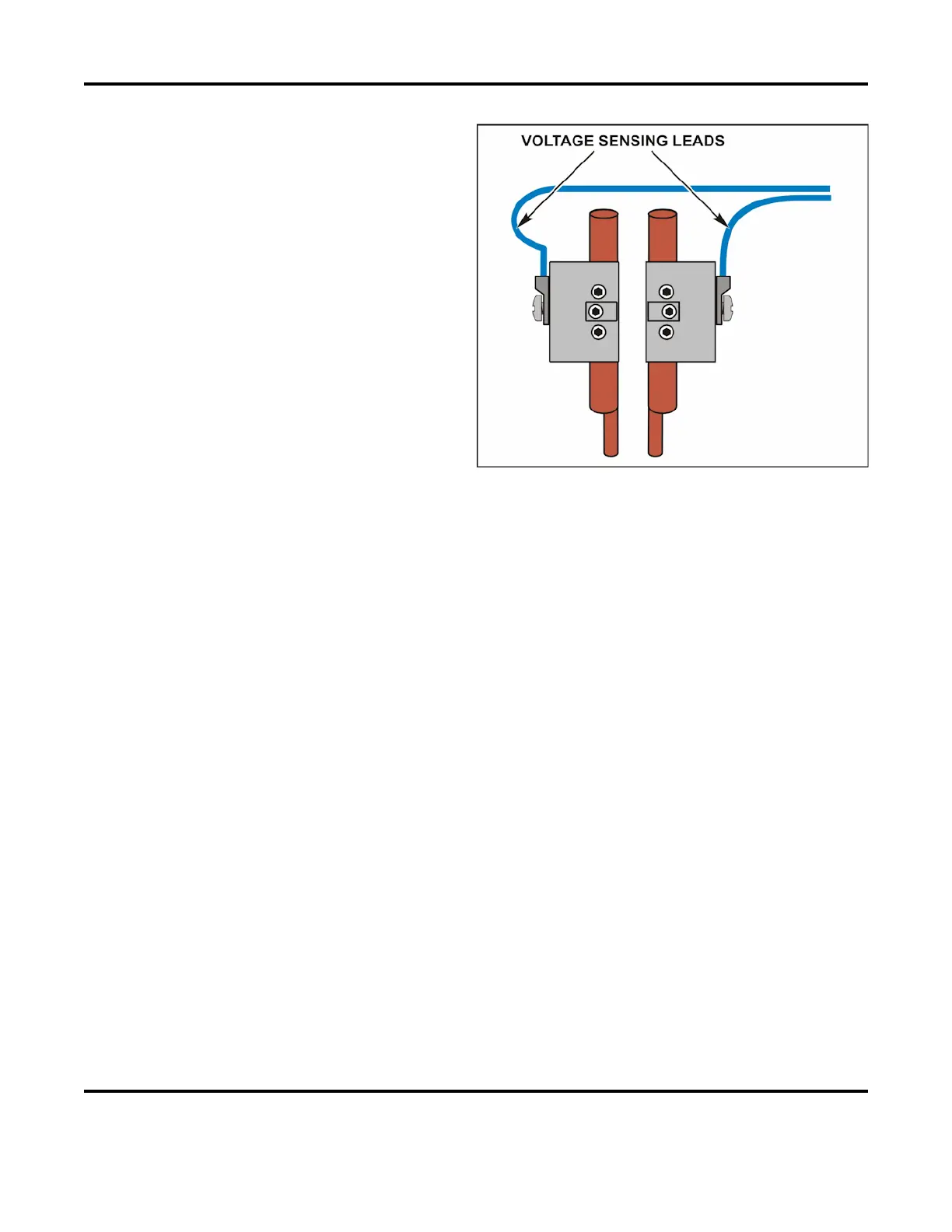

7. Attach a clip directly to each electrode as
shown on the right.
8. Put a strain relieve on each voltage
sensing lead to its corresponding
electrode holder so that the lead clips
will not break away under heavy
operating conditions.
NOTE: Do not attach the firing switch,
foot switch or EMERGENCY STOP cables
