HF-2500A HIGH FREQUENCY WELD CONTROL
990-371 2-1
CHAPTER 2
Installation and Setup
Section I: Installation
Unpacking
The Power Supply is shipped to you completely assembled, together with the accessories you ordered and
a shipping kit.
Verify that the Power Supply shows no signs of damage. If it does, please contact the carrier. Also,
contact AMADA WELD TECH Customer Service immediately at the postal or e-mail address or
telephone or FAX number shown in the Foreword of this manual.
Space Requirements

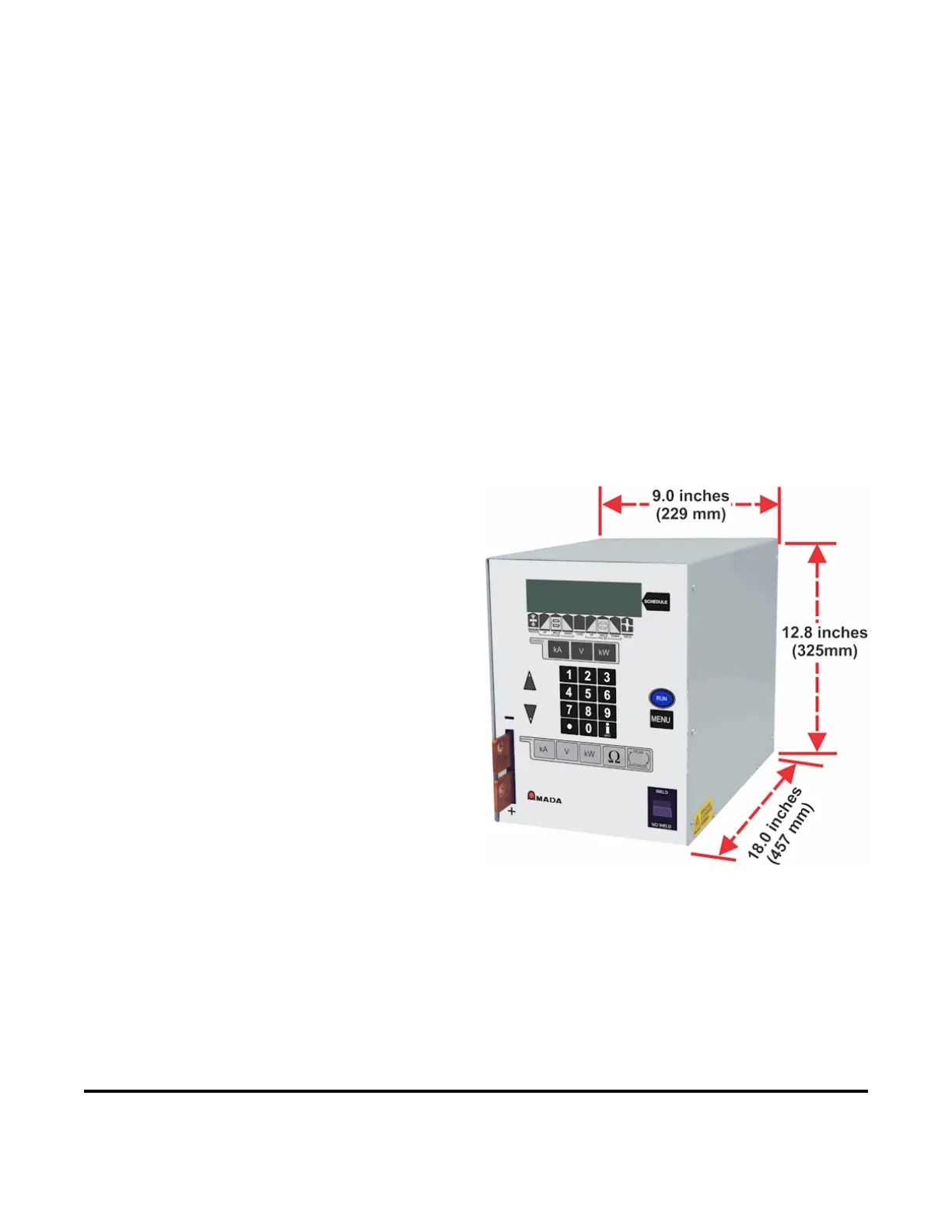

• Allow ample workspace around the Power
Supply so that it will not be jostled or struck
while welding.
Allow sufficient clearance around both sides
and back of the Power Supply for power and
signal cabling runs.
Install the Power Supply in a well-ventilated
area that is free from excessive dust, acids,
corrosive gases, salt and moisture.
Other installation considerations are:
─ The work surface must be level, stable,
free from vibration, and capable of
supporting the combined weight of the
total welding system. The weight of the
Power Supply is 62 lb. (28 kg).
─ The Power Supply must be far enough
from the weld head to avoid contact with
weld splash.
─ There are no sources of high-frequency
To Next Page
