APPENDIX D: SYSTEM TIMING
HF-2500A HIGH FREQUENCY WELD CONTROL
990-371 D-3

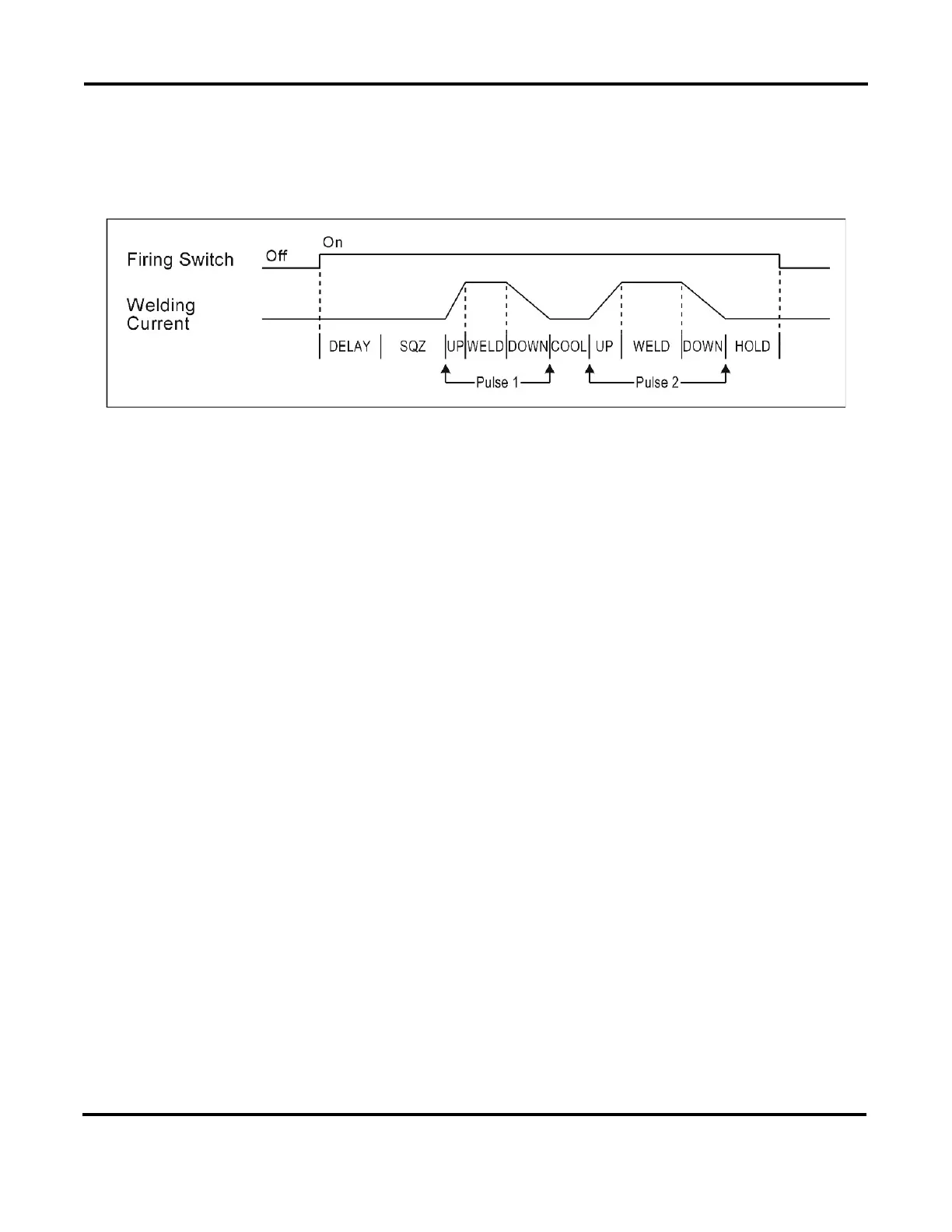

Basic Weld Operation: System with Remote Firing Switch
NOTE: The firing switch mode is selected under the Setup 1 menu.
Definitions
Delay time from Remote Schedule Select Signal ON to the start of the weld sequence (that
is, start of SQZ). DELAY time is 23 ms.
Squeeze time. Selectable range is 0 to 999 ms.
Up slope time. Selectable range is 0.0 to 99.0 ms.
Weld time. Selectable range is 0.0 to 99.0 ms.
Down slope time. Selectable range is 0.0 to 99.0 ms.
Cool time. Selectable range is 0.0 to 99.0 ms.
Hold time. Selectable range is 0 to 999 ms.
