MU-100A
13. Data Communication
13-4
* Table 1
Unit Data length (including symbol and decimal point)
At N
Decimal point position
**.**: **.** (5 digits)
***.*: ***.* (5 digits)
*****: ***** (5 digits)
At no measurement or no 2-axis: ----- (5 digits)
At kgf
At lbf
Decimal point position
*.***: *.*** (5 digits)
**.**: **.** (5 digits)
***.*: ***.* (5 digits)
****.: ****. (5 digits)
At no measurement or no 2-axis: ----- (5 digits)
At mm
±**.*** (7 digits)
At no measurement or no 2-axis: ---.--- (7 digits)
* Table 2
Code Judgment
Space (20H) No judgment
N (4EH) Normal (GOOD)
H (48H) Upper limit error (Upper limit NG)
L (4CH) Lower limit error (Lower limit NG)
b. Bi-directional communication
Meaning of symbol
ID1, ID2: Device address number
Fixed to 2 digits (ID1= Ten’s place, ID2= One’s place)
AX1: Axis number
Fixed to 1 digit (1 or 2)
SH1, SH2, SH3: Schedule number
Fixed to 3 digits (SH1= Hundred’s place, SH2= Ten’s
place, SH3= One’s place)
CD1, CD2, CD3: Specified code
CD1 --------------- Alphabet classified symbol
CD2 and CD3 -- Code classified number
1.
Inquiry of Model name and ROM
version

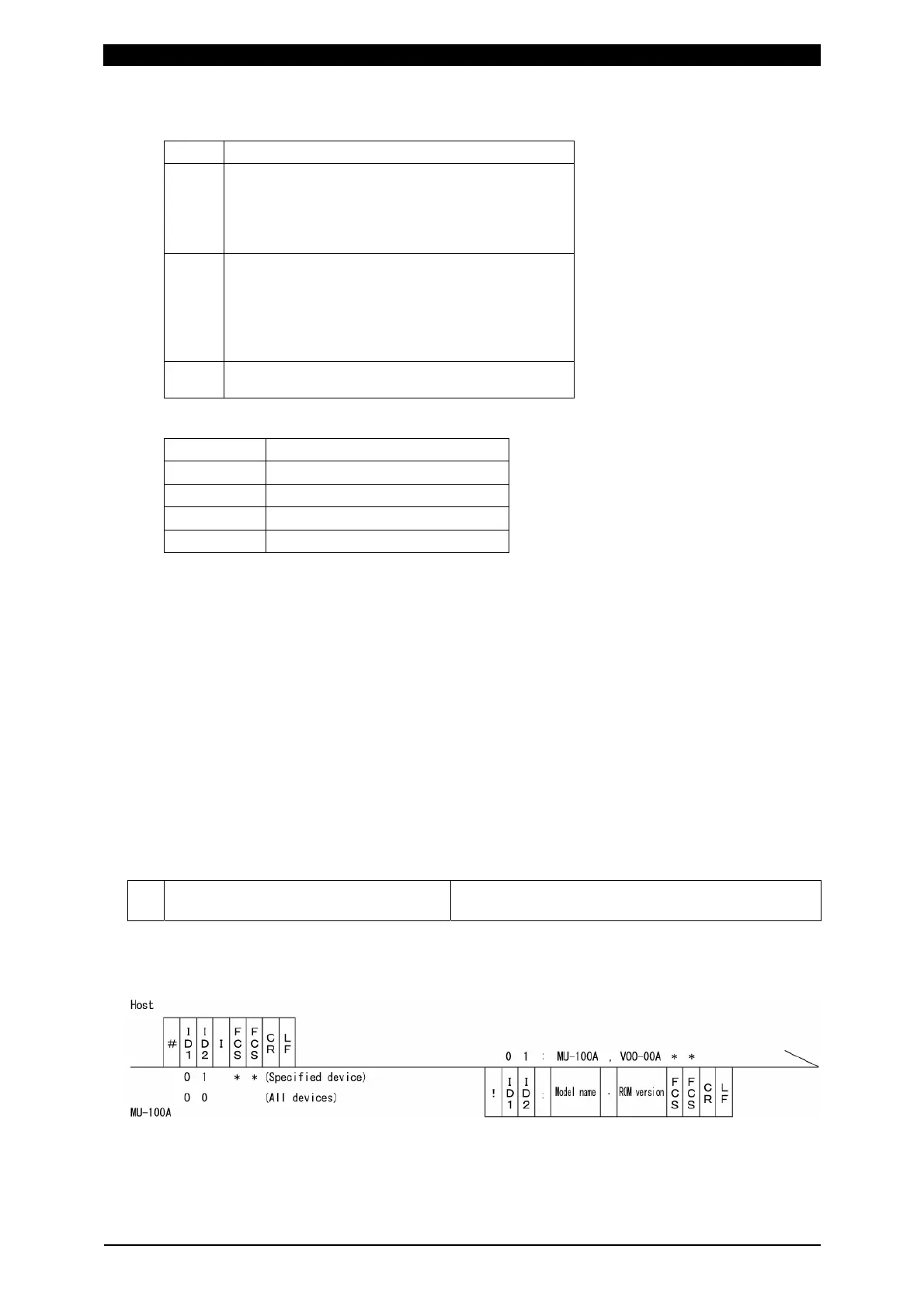

# Device No. I
Example: Model name of Device No.01 and the ROM version → MU-100A and the ROM
version is V00-00A.
･ When 0 is set for both ID1 and ID2, all devices connected reply.
To Next Page
