MU-100A
13. Data Communication
13-5
2.

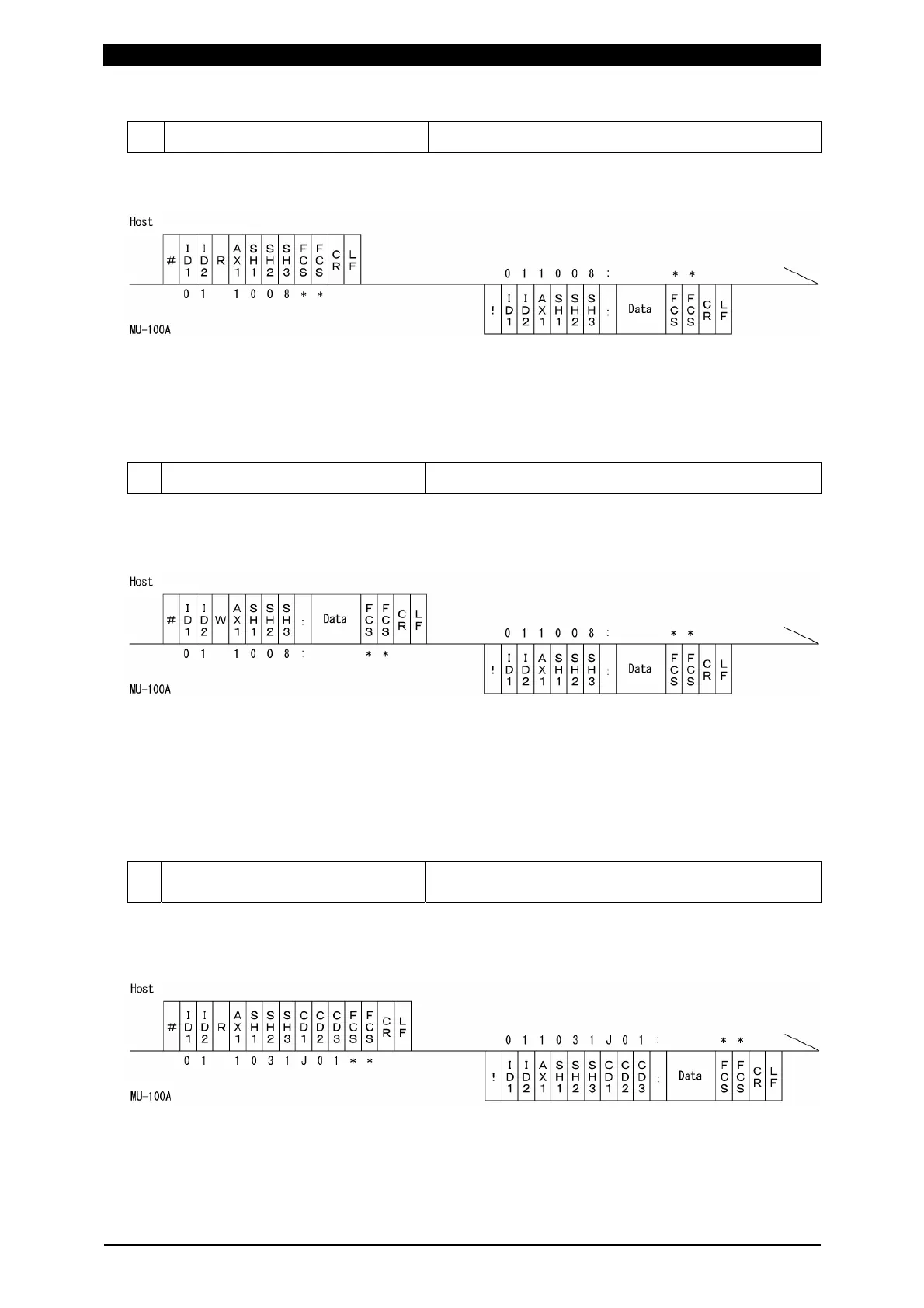

Schedule data reading # Device No. R Axis No. Schedule number *
Example: Read all data of Schedule No. “008” for 1-axis of the specified Device No.01.
Insert [,] between data for a schedule.
･ When SH1, SH2 and SH3 (schedule number) are “000”, Setup data are read.
･ For the data order of a schedule, see c. Code table of schedule data of each
schedule number.
3.
Schedule data setting # Device No. W Axis No. Schedule number , Data
Example: Set the data contents of Schedule number “008” for 1-axis of the specified
device No.01.
Insert [,] between data for a schedule.
･ When SH1, SH2 and SH3 (schedule number) are “000”, Setup data are set.
･ For the data order of a schedule, see c. Code table of schedule data of each
schedule number.
･ The set data is returned as a confirmation data.
When data which is outside the range is set, previous data is returned.
4.
Specified item reading
# Device No. R Axis No. Schedule number
Specified code
Example: Read the squeeze time (1.000 sec) of schedule number “031” for 1-axis of
Device No.01.
･ For CD1 (alphabet classified symbol), CD2 and CD3 (code classified number), see
data code tables c to g.
