MU-100A
13. Data Communication
13-6
5.
Specified item setting
# Device No. W Axis No. Schedule number Specified
code , Data

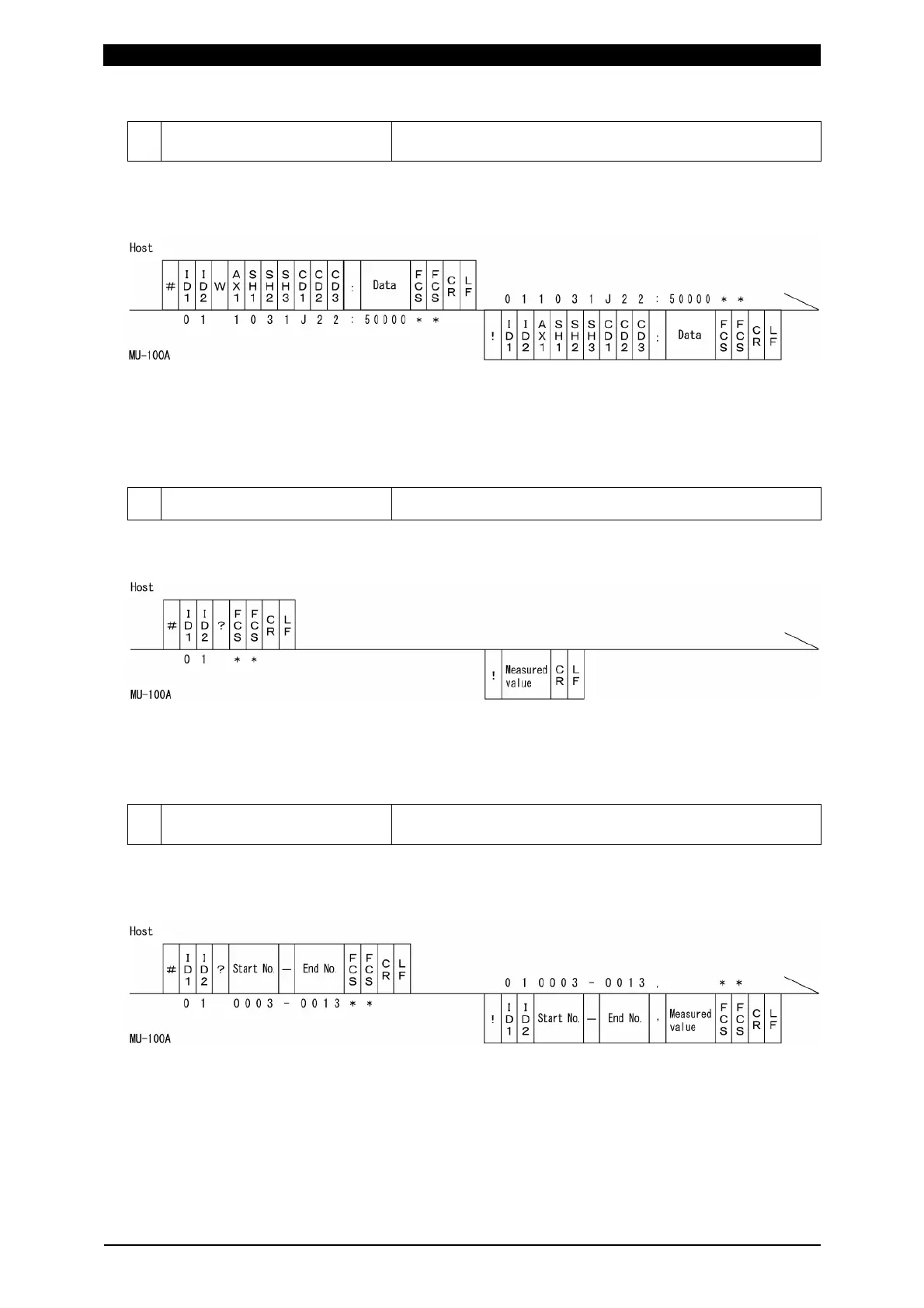

Example: Set the preset counter value of Schedule number “031” for 1-axis of Device No.
01 to 50000.
･ The set data is returned as a confirmation data.
When data which is outside the range is set, previous data is returned.
･ For CD1 (alphabet classified symbol), CD2 and CD3 (code classified number), see
data code table.
6. Measurement item reading # Device No. ?
Example: Read the measured value of Device No. 01.
･ The final measured value is read. (Insert [,] between each measurement item.)
･ The measured value is the same as Code table A to Z in a. Single-directional
communication.
7.
Specified measurement item
reading
# Device No. ? Start No. – End No.
Example: Read measured values from Counter (0003) to Displacement judgment (0013)
for 1-axis of Device No.01.
･ The specified number’s measured value of the last measured data is read. (Insert [,]
between each measurement item.)
･ For the measured value, see h. Code table of measurement data.
