Amada UB25 - Weld Terminals

APPENDIX B: ELECTRICAL AND DATA CONNECTORS
UB25 LINEAR DC RESISTANCE WELDING CONTROL
B-12 990-665
Weld Terminals
WELD TERMINAL SPECIFICATIONS
TERMINAL MAXIMUM VOLTAGE MAXIMUM CURRENT COMMENTS
+
9.9 volts 1,300 amps Variable
-
-- -- Return

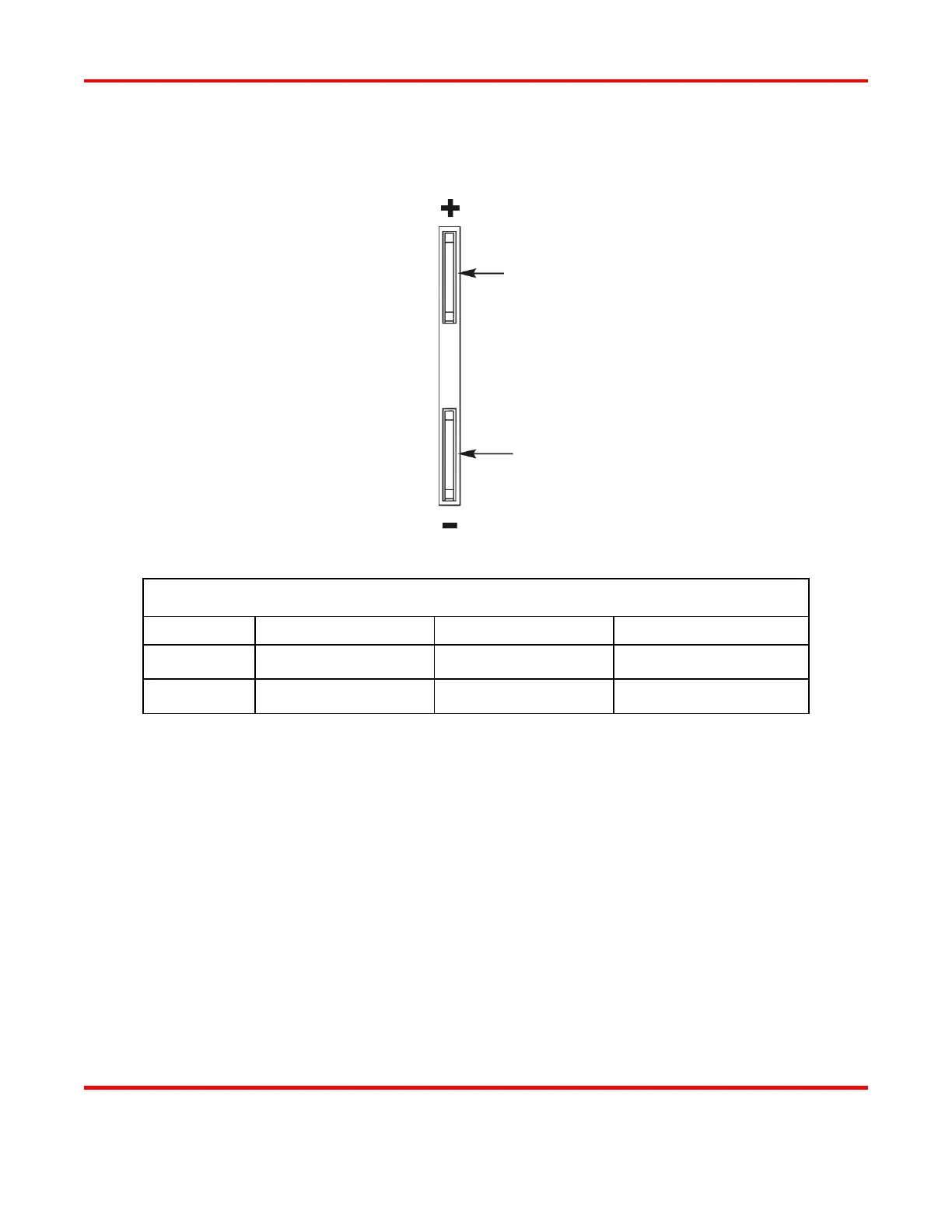

POSITIVE WELD TERMINAL
NEGATIVE WELD TERMINAL
