American Dynamics Intellex Intellex DVMS - Figure 2 - Sample Network Configuration; Sample Network Configuration

2 Intellex
®
Operating Instructions
SAMPLE NETWORK
CONFIGURATION
One or more Intellex units can be connected over a local area
network (LAN). Its data can then be managed from a central
site using the Network Client (sold separately). A sample net-
work configuration is shown below.

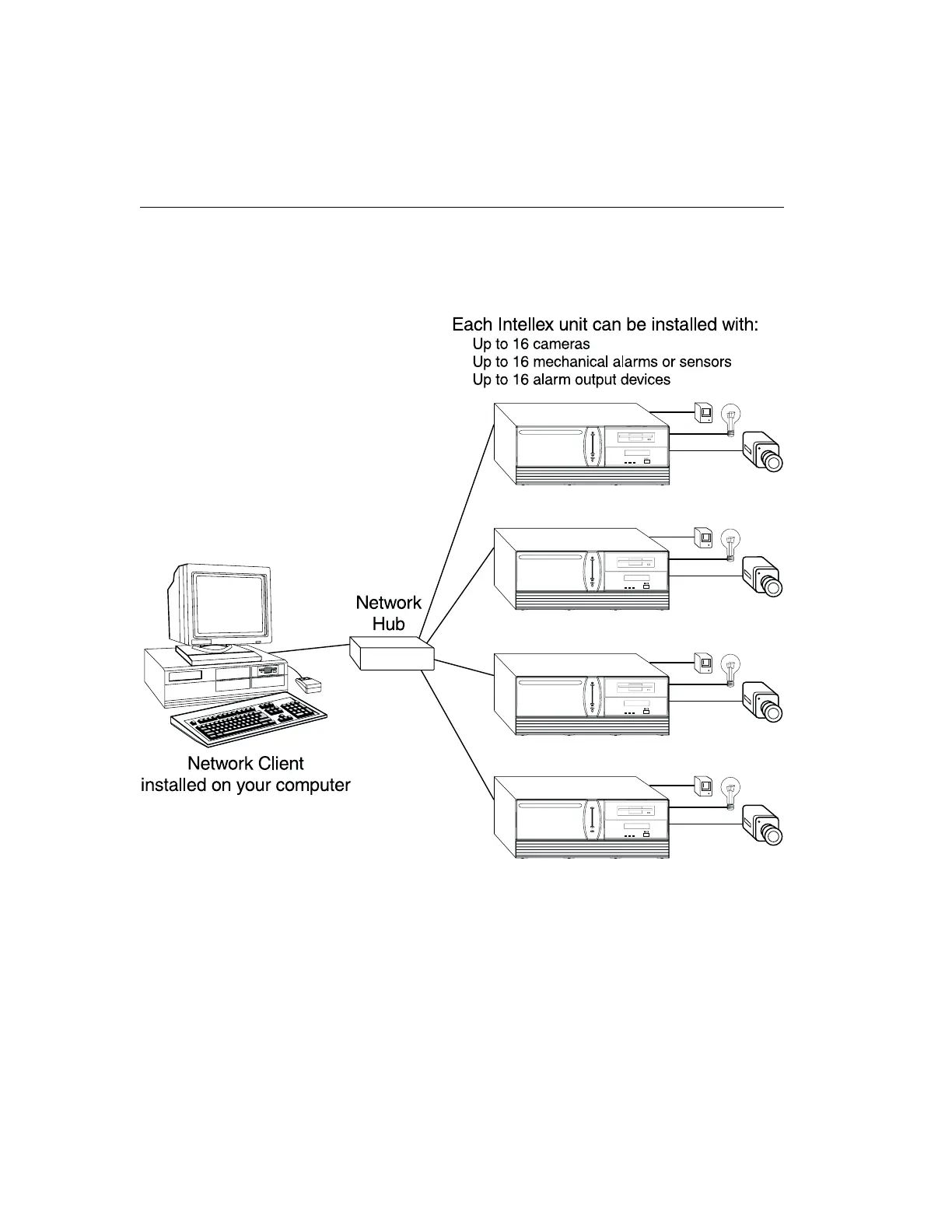

Figure 2 — Sample Network Configuration
